Basic Menu Operation
In the following section, we will explain these numeric input methods in more
detail.
Using the Front Panel
To specify numeric values with the numeric keys, ENTER key, and unit keys on
Numeric Keys
the front panel, perform the following steps.
1. Press the button for the menu item you want to change.
2. Use the numeric keys to input the desired value.
3. Press one of the unit keys or the ENTER key.

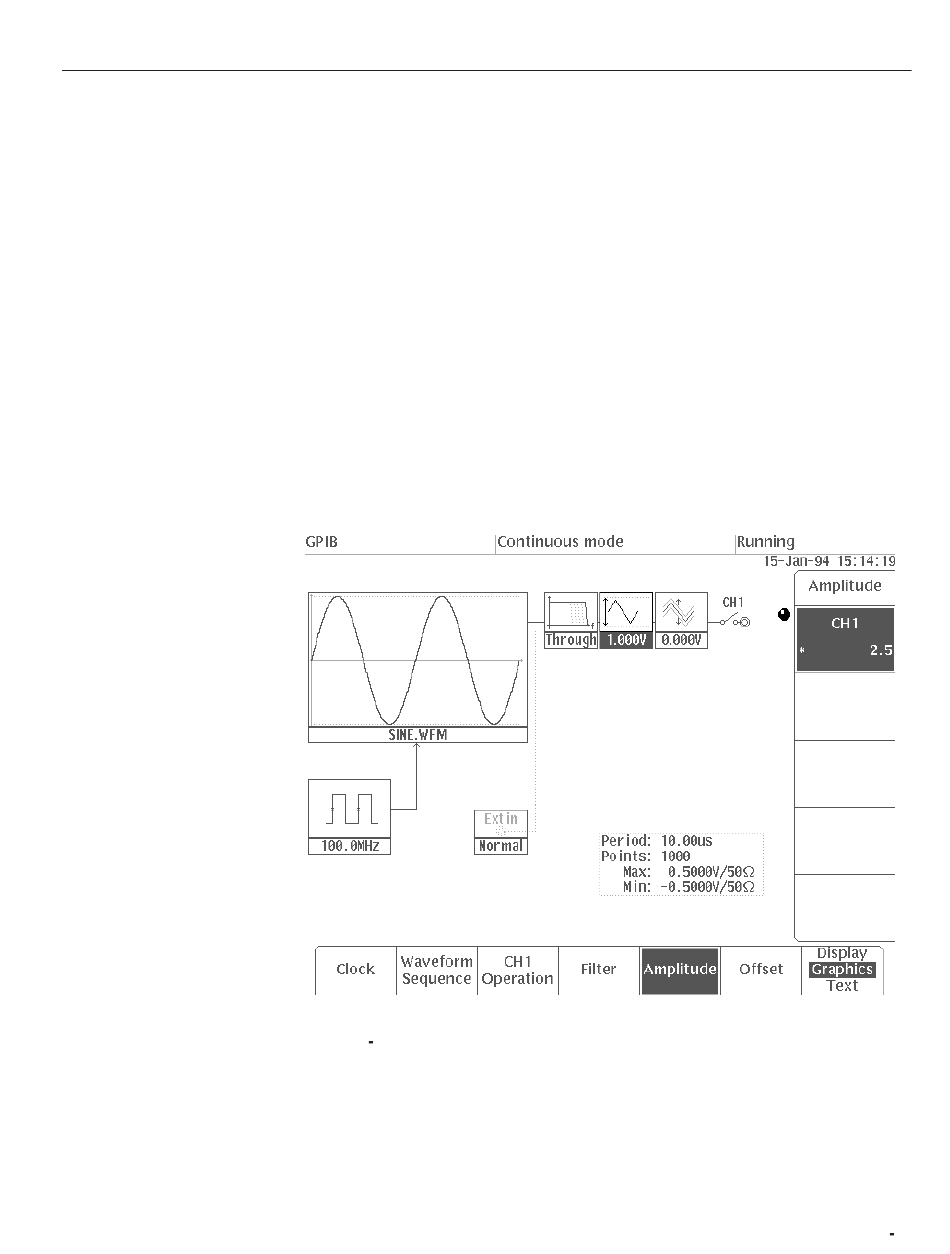

Figure 2 -8 shows the menu displayed when Amplitude is selected from the
SETUP menu. In this figure, the numeric keys are used to change the amplitude.
Here the asterisk in the numeric input column indicates that the value is being
input. Press the front panel ENTER key to enter the value and remove the
asterisk.
Figure 2 8: Numeric Input Using Numeric Keys
Numeric Input Keys. Four types of keys are used to enter numeric values: the
numeric keys (0 – 9), the unit keys (ns, MHz/ms, kHz/ms/mV and Hz/s/V), the
Delete key and the ENTER key. These are shown in Figure 2 -9.
