TTL DIGITAL DATA OUT Check (Option 04)
AWG 2021 Rear Panel
TTL Digital Data
Out Cable

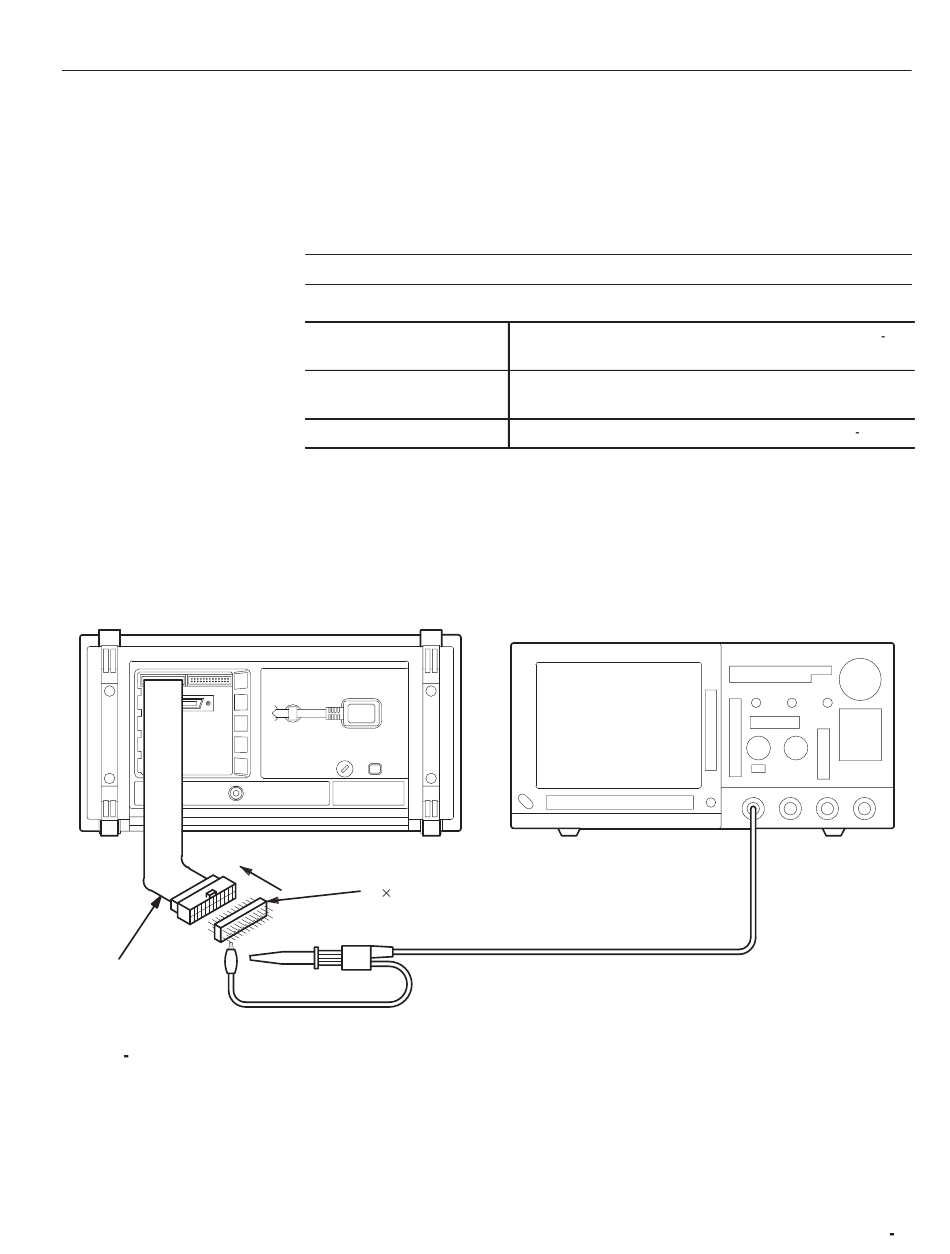

Figure C 22: TTL Digital Data Out Initial Test Hookup
AWG2021 User Manual
This procedure checks the AWG2021 TTL DIGITAL DATA OUT at the rear
panel.
NOTE. This check requires that the AWG2021 has Option 04 installed.
Electrical
Characteristic Checked
Equipment Required
Prerequisites
1. Install test hookup and set test equipment controls:
a. Hook up termination board: Connect a digital data output cable to the
AWG2021 rear-pane CH1 DIGITAL DATA OUT output (see Fig-
ure C-22).
2 13 Header
Appendix C: Performance Verification
Auxiliary Output, TTL DIGITAL DATA OUT, Level, on page B 8.
TTL Digital data out cable, 2 X13 header, probe and
oscilloscope.
The AWG2021 meets the prerequisites listed on page C 5.
Oscilloscope
C 47
