Waveform Output
AWG2021 User Manual
Connect the AWG2021 to an oscilloscope with 50 W cables and 50 W termina-
tions as shown in Figure 2 -68. The waveform output for this instrument is
calibrated for a 50 W load.
AWG2021
CH 1

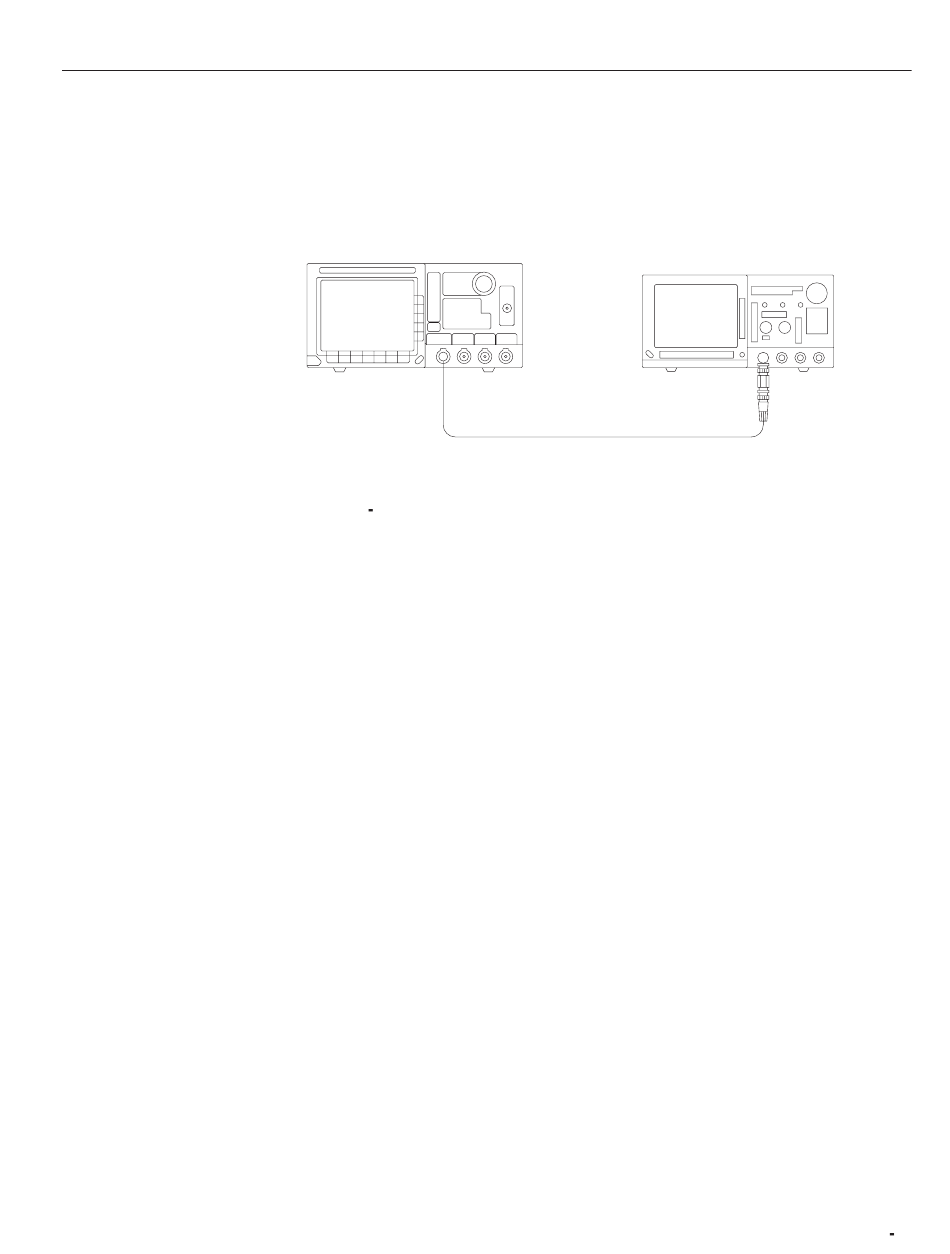

Figure 2 68: Connections for Example 6
1. Press the front panel CH1 On/Off button and switch on. The On/Off
indicator should light up. In this operation, the waveform outputs continu-
ously from the CH1 output connector. Set the oscilloscope appropriately to
display the waveform on the oscilloscope screen.
This completes the Example 6.
Oscilloscope
50 W Termination
50 W Cable
