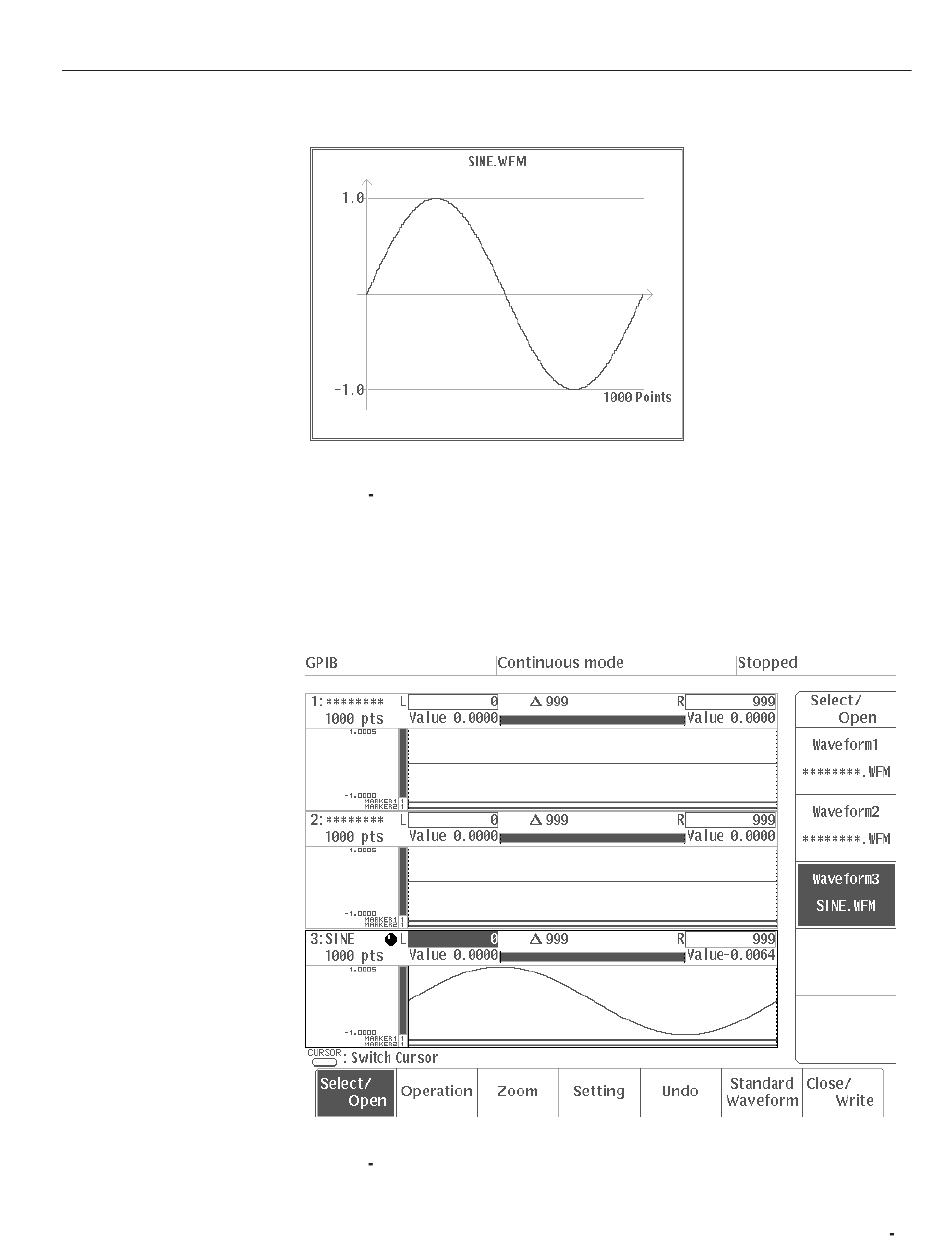

Figure 3 11: Menu Display When Show Catalog Entry is Selected

9. Select Continue from the sub-menu.

10. Select O.K. from the sub-menu. Waveform3 will be added to the side menu

and the Waveform3 editing area will appear on the screen. See Figure 3 -12.

Figure 3 12: Waveform3 Added

AWG2021 User Manual
