EDIT Menu

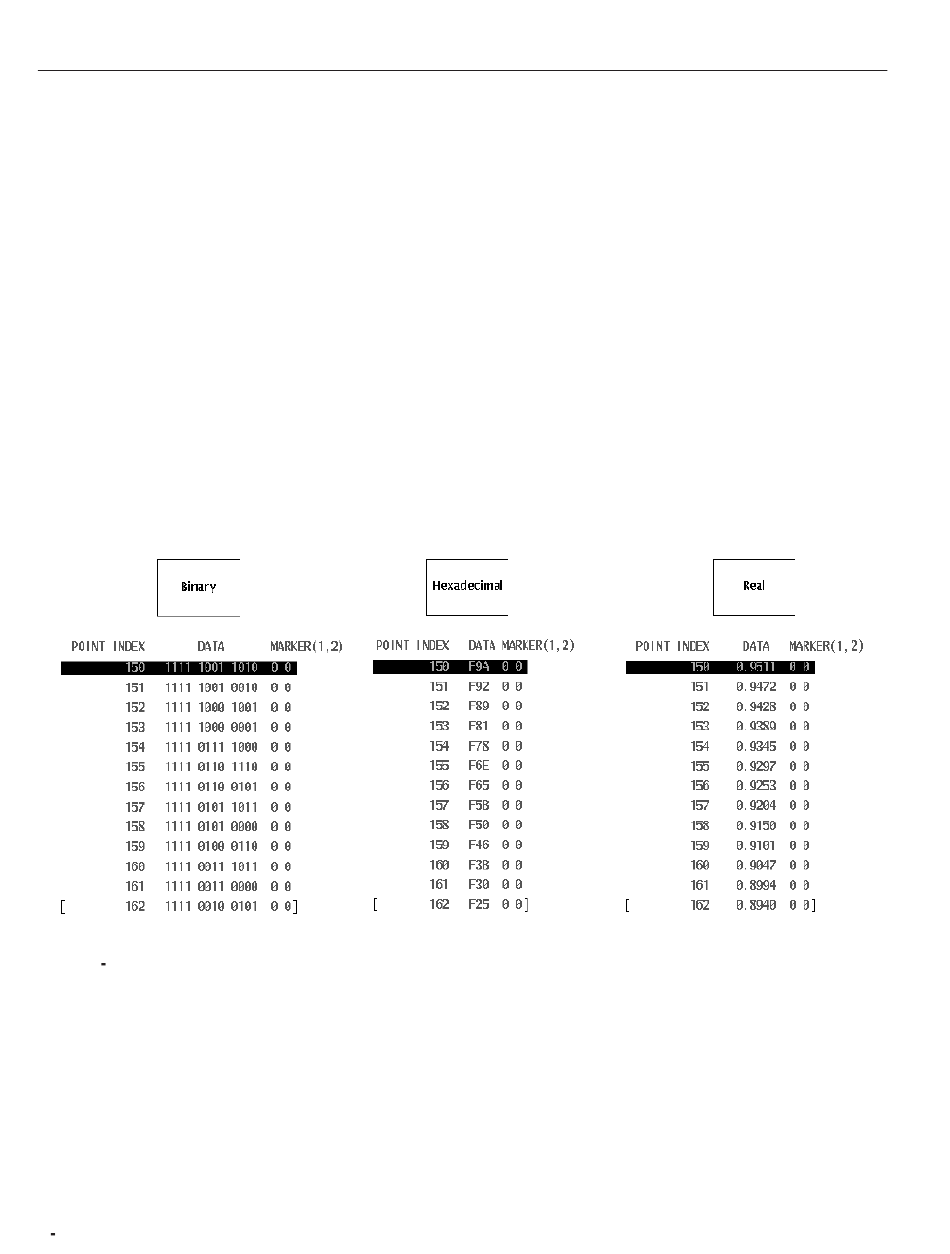

Figure 3 95: Numeric Displays for Waveform Data
3 134
Hexadecimal Waveform data is created using the 0–9 and A–F numeric
keys. When the cardinal numbers are changed to Hexadeci-
mal, numeric keys and unit keys are allocated to A–F.
Real The data is input, as with regular number input, by pressing
numeric keys, then pressing the ENTER key to enter the
number. Any real number (Real), up to the vertical axis full
scale, can be entered in the graphic display.
The markers are displayed in binary notation even when the cardinal numbers are
set to Hexadecimal or Real.
1. Select Setting from the bottom menu.
2. Select Radix... from the second page of the side menu (More 2 of 2).
3. Select the desired cardinal number (Binary, Hexadecimal or Real) from the
sub-menu. Figure 3 -95 shows how the same waveform data is displayed in
each of the cardinal numbers.
4. Select Go Back from the current sub-menu. The system returns from the
Binary... sub-menu to the previous side menu.
