Operating Examples
2 46
12. Select Draw... from the side menu.
The first point will be drawn.
13. Press the VALUE button on the front panel to determine the direction in
which the point cursor will move.
14. Using the general purpose knob, move the point cursor to draw another
point.
15. Select Add Draw Point from the sub-menu.
The point will be confirmed and an
16. Repeat steps 13 through 15 to determine other points. An example is shown
in Figure 2 -33.

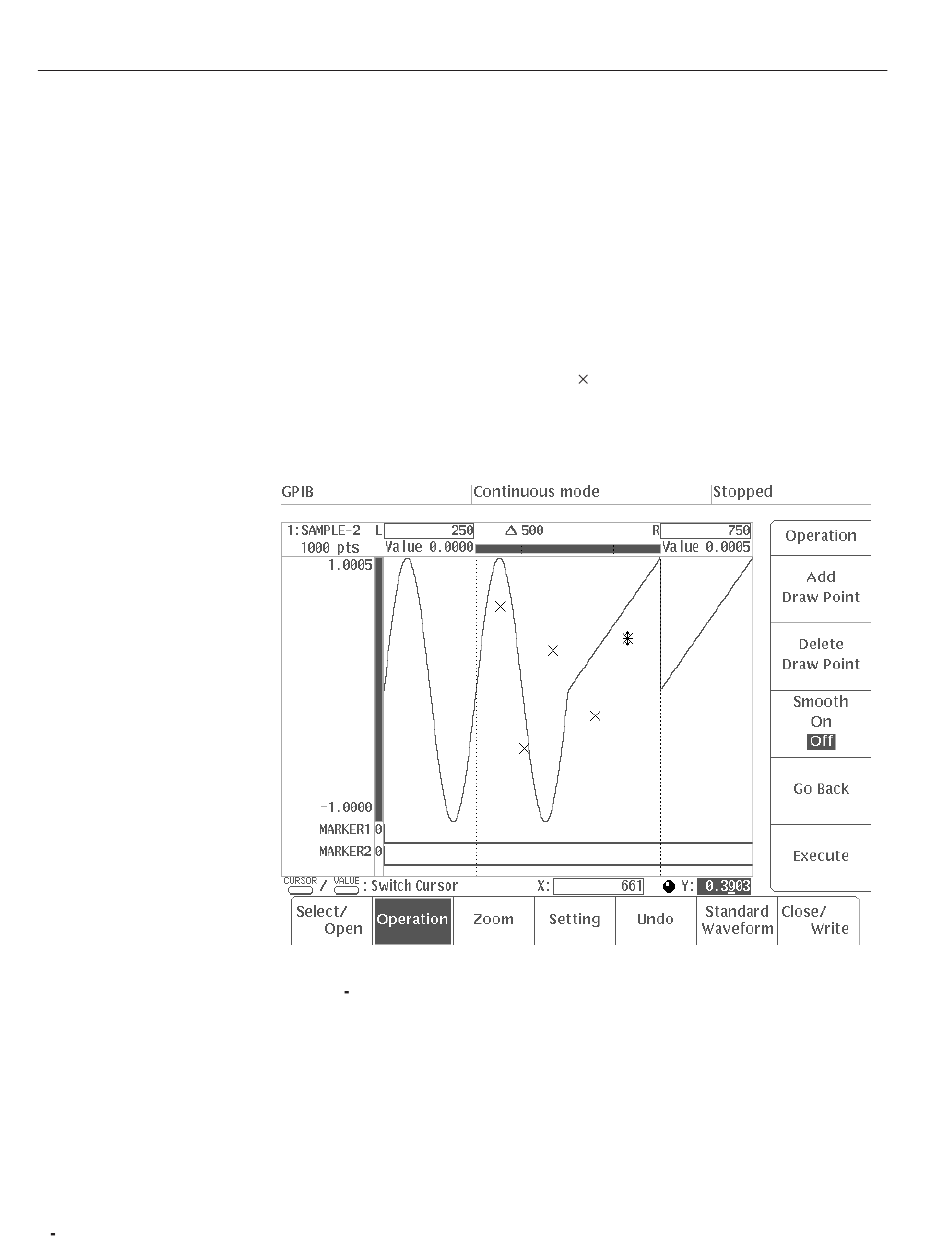

Figure 2 33: Drawing a Waveform Using the Point Draw Function
17. Select Smooth from the sub-menu to turn smoothing on.
When this is done, spline interpolation will be performed and the points that
have been drawn and the curve outside the area marked by the vertical bar
cursors will be connected in a smooth curve.
will appear at that position.
