EDIT Menu
3 18
5. Select O.K. from the sub-menu. When this is done, Waveform2 will be
added to the side menu and the Waveform2 editing area will appear on the
screen. See Figure 3 -10.

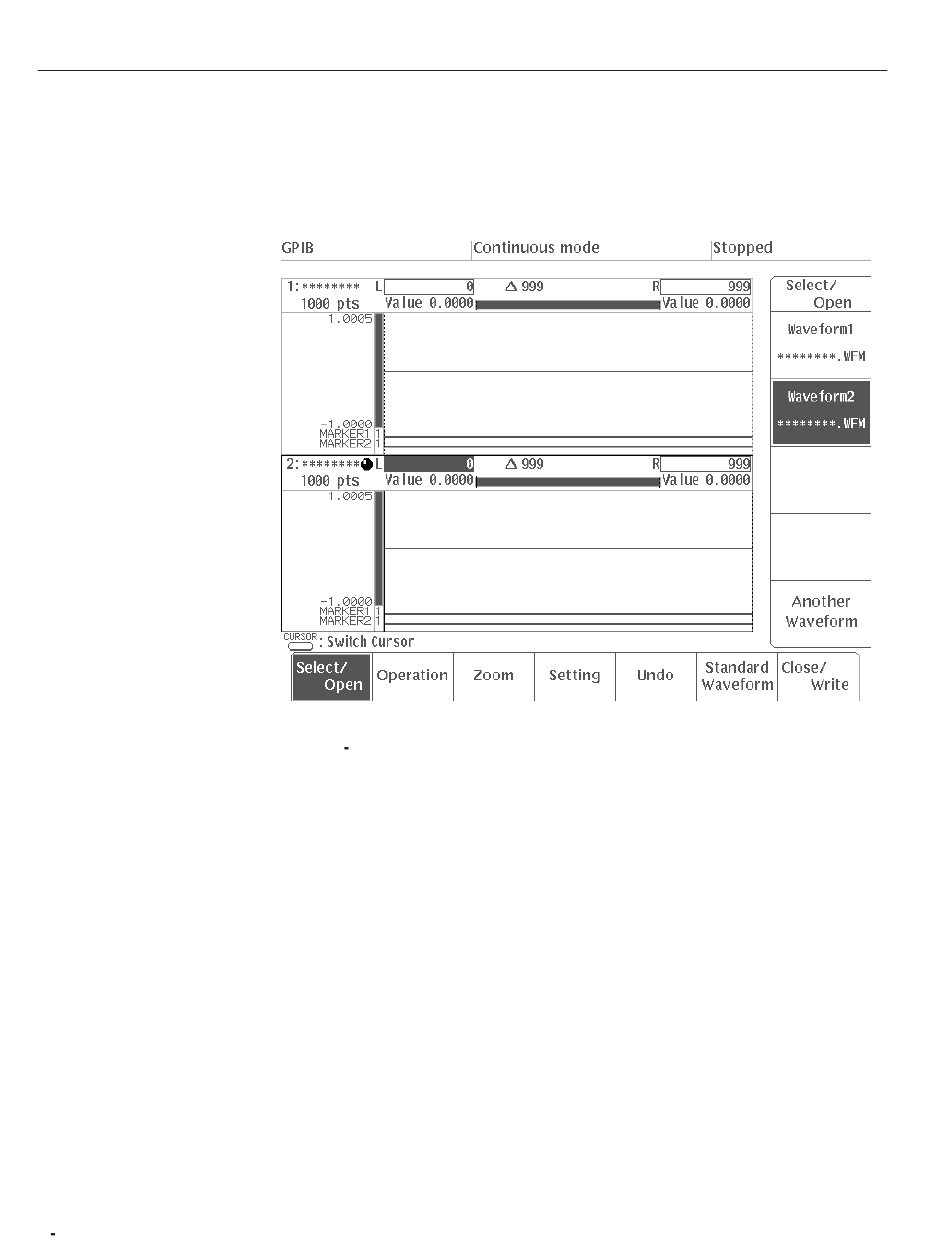

Figure 3 10: Waveform2 Added
6. Select Another Waveform from the side menu.
7. Using the general purpose knob, select a waveform file. In this example, we
will select an existing waveform file.
8. Select Show Catalog Entry from the sub-menu. This allows you to check
the waveform for the selected file on the screen. See Figure 3 -11.
