Tektronix AWG2021 User Manual page 390

AWG2021 User Manual

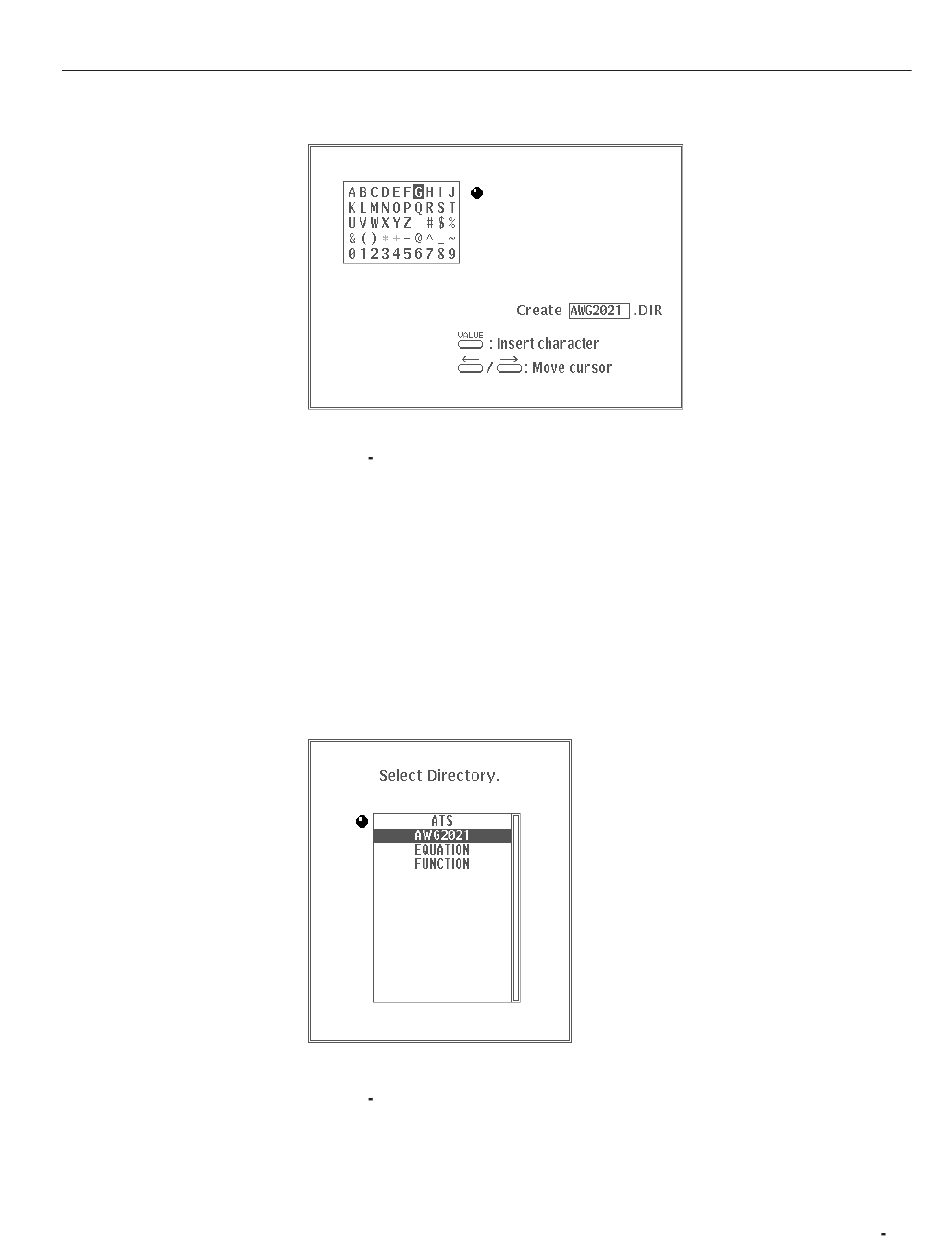

Figure 3 181: Directory Name Input
4. After you have input the directory name, select O.K. from the sub-menu.
The AWG2021 directory is created in the floppy disk.
Example: Changing a Directory.
5. Select Change Directory from the side menu.
6. Use the general purpose knob to select the AWG2021 sub-directory you just
created from the directory list. See Figure 3 -182.
Figure 3 182: Directory Displayed When Change Directory is Selected
UTILITY Menu
3 271
