EDIT Menu
Timing Display Screen
3 100

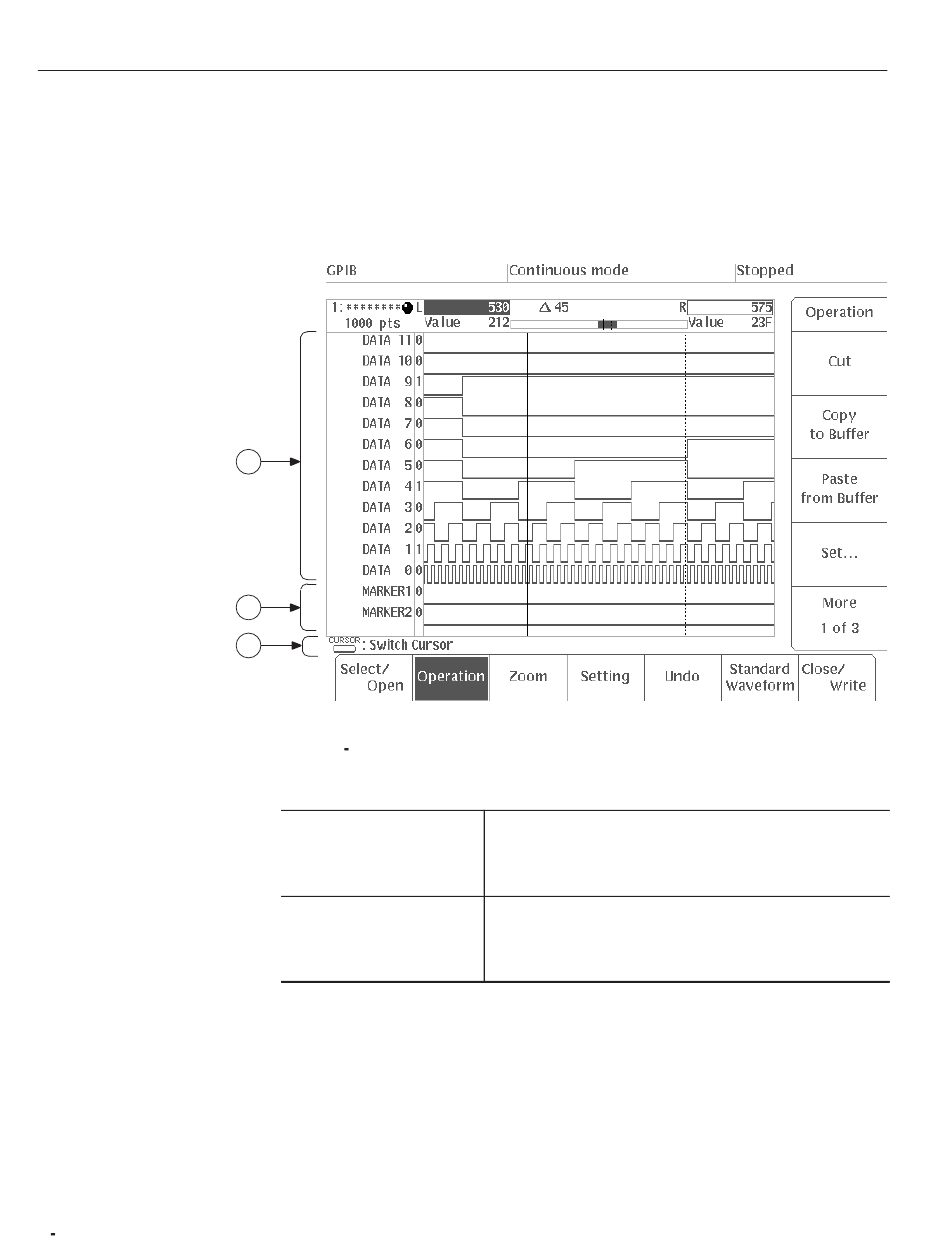

Figure 3 -77 shows the timing display screen. This section will describe each
portion of the screen; however, descriptions of areas that are identical to the
graphic display will be omitted. See "Graphic Display Screen" for a description
of the graphic display.
1
2
3
Figure 3 77: Timing Display Screen
(1) DATA 11 - DATA 0
(2) MARKER1 / MARKER2
This area shows the timing for each of the data lines (11 - 0).
Data line 11 is the MSB. The number next to the data lines (11
- 0) indicates the time or point value at the location of the
active vertical bar cursor.
This area shows the timing for the marker 1 or 2. The number
to the right of the word MARKER" indicates the state of the
marker for the time or point value at the location of the active
vertical bar cursor.
