Tektronix AWG2021 User Manual page 96

AWG2021 User Manual
The Step 2 display will appear.
8. Using the procedure described in Steps 2 – 5 above, set the CH1 file for Step
2 (SAMPLE–3).

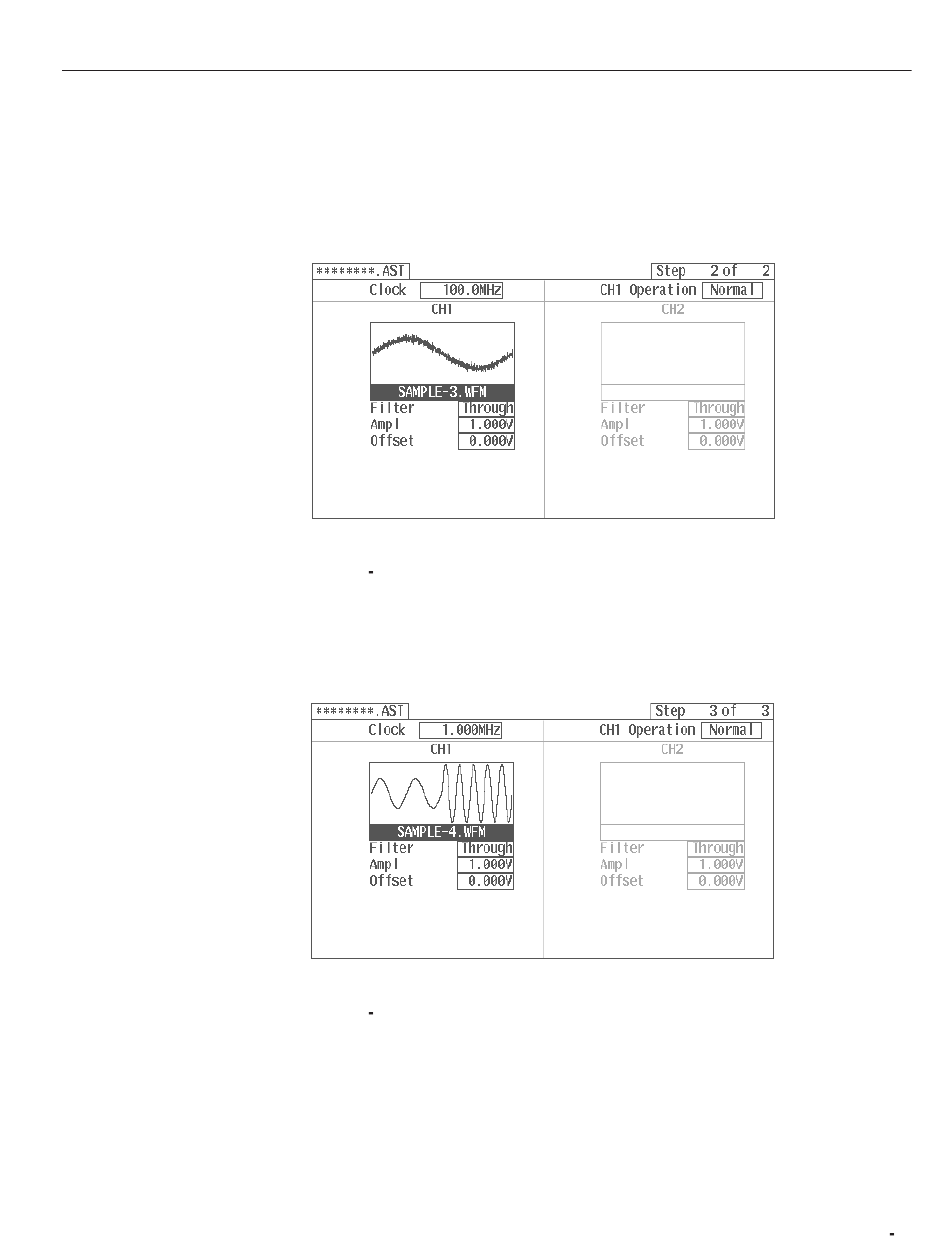

Figure 2 47: Setting the File for Step 2
9. Using the procedure described in Steps 2 – 8 above, set the CH1 file for Step
3 (SAMPLE–4).
Figure 2 48: Setting the File for Step 3
10. Select Exit/Write from the bottom menu.
11. Select Write and Exit from the side menu.
Operating Examples
2 59
