EDIT Menu

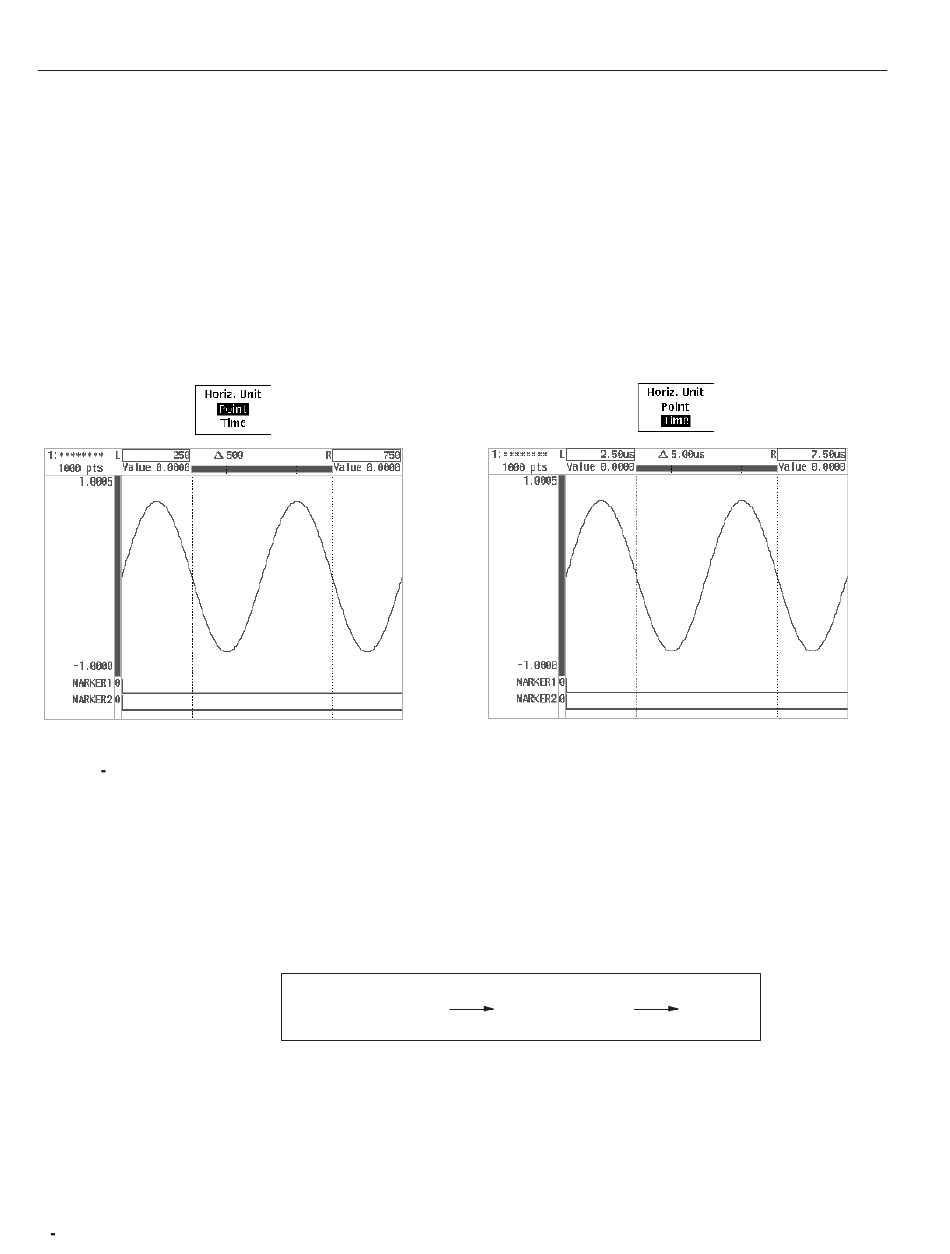

Figure 3 16: Setting the Unit for the Horizontal Axis
3 32
Time
Point
In Figure 3 -16, the display on the left shows the horizontal axis unit set to
Point, while the display on the right shows this value set to Time.
When the horizontal axis unit is changed, even if you switch to table or timing
display mode, the horizontal axis there is changed too.
Setting Clock Frequency. When the unit of the horizontal axis is Time, the clock
frequency can be set. The following diagram shows the menu configuration.
Setting (More 1 of 2)
Select Clock from the side menu to set the clock frequency. This parameter
determines the time between the data points (the inverse of the clock frequency).
For example, when the maximum clock frequency on the AWG2021 is set to
Sets the horizontal axis unit to time. The cursor
position data at the top of the CRT is displayed in
time and data can be edited in time units.
Sets the horizontal axis unit to points. The cursor
position data at the top of the CRT is displayed in
points and data can be edited in points.
Horiz. Unit ( Time ) Clock
