Logical Operation
AWG2021 User Manual
2-7 RLL
Initial Src 0
Initial Code 0
Out[1/0] Invert/Keep
Source Data
Pattern Converted Code
10 0100
11 1000
000 000100
011 001000
010 100100
0010 00100100
0011 00001000

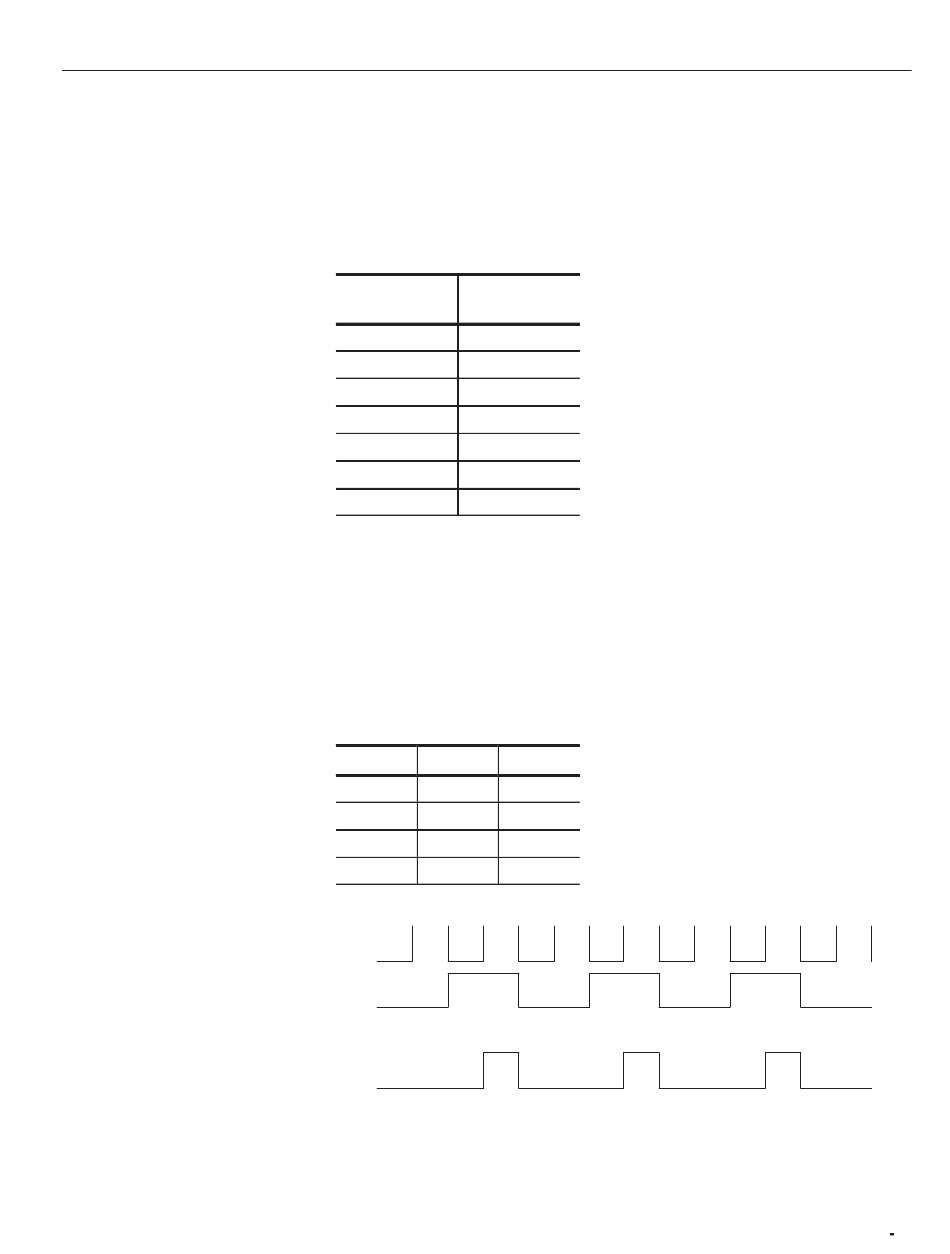

In the waveform editor timing display, it is possible to perform logical operations
for data on different data lines. The following logical tables and timing charts
show examples of each type of operations.
H AND
A B
0 0
0 1
1 0
1 1
DATA A
DATA B
A * B
A*B
0
0
0
1
