Appendix C: Performance Verification
Pulse Response Check
C 34
This procedure checks the pulse response characteristics of the AWG2021 output
waveforms at amplitudes of 0.5 and 1 V.
Electrical
Characteristic Checked
Equipment Required
Prerequisites
1. Install test hookup and set test equipment controls:
a. Hook up the oscilloscope: Connect the AWG2021 CH1 output
connector through the coaxial cable to the CH1 vertical input connector
on the oscilloscope (see Figure C-16).
AWG2021
AWG2021

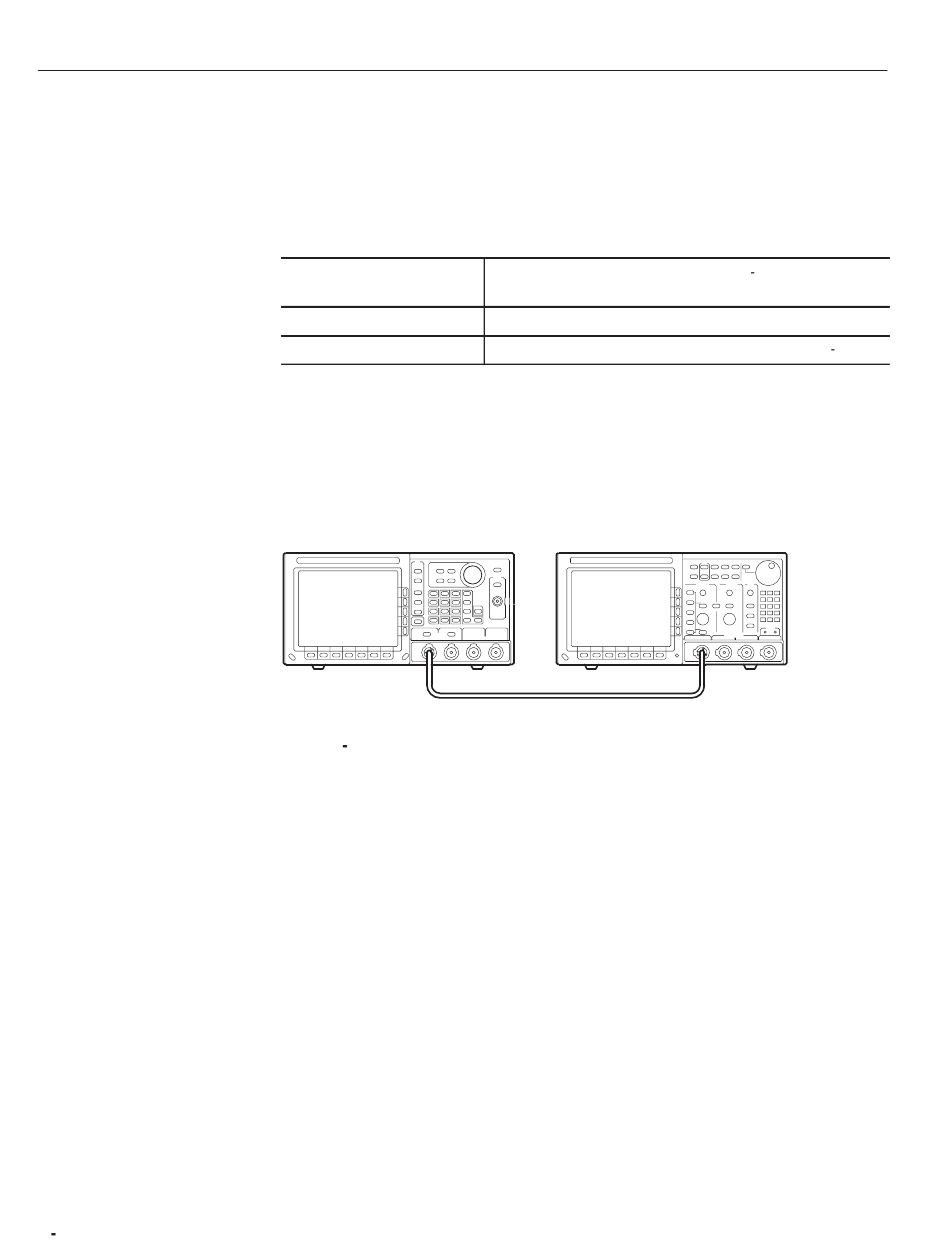

Figure C 16: Pulse Response Initial Test Hookup
b. Set oscilloscope controls:
Vertical . . . . . . . . . . . . . . . . . . . . . . . . .
Coupling . . . . . . . . . . . . . . . . . . . . .
Scale . . . . . . . . . . . . . . . . . . . . . . . .
Input impedance
Horizontal
Sweep . . . . . . . . . . . . . . . . . . . . . . .
Trigger
Source . . . . . . . . . . . . . . . . . . . . . .
Coupling . . . . . . . . . . . . . . . . . . . . .
Slope . . . . . . . . . . . . . . . . . . . . . . .
Level . . . . . . . . . . . . . . . . . . . . . . .
Mode . . . . . . . . . . . . . . . . . . . . . . .
Main Outputs, Pulse Response, on page B 7.
A 50 W coaxial cable and an oscilloscope.
The AWG2021 meets the prerequisites listed on page C 5.
Oscilloscope
TDS
540
CH1
DC
0.1 V/div.
50 W
. . . . . . . . . . . . . . .
5 ns/div.
CH1
DC
Positive
0 V
Auto
