Tektronix AWG2021 User Manual page 48

RS-232-C
IEEE STD 488 PORT
CLOCK OUT MARKER 2 OUT
CH-1
2V FROM 50W 5V FROM 50W
MARKER 2 OUT
CH-2
5V FROM 50W
CLOCK IN
50W 2V MAX
Standard Type, Option 02

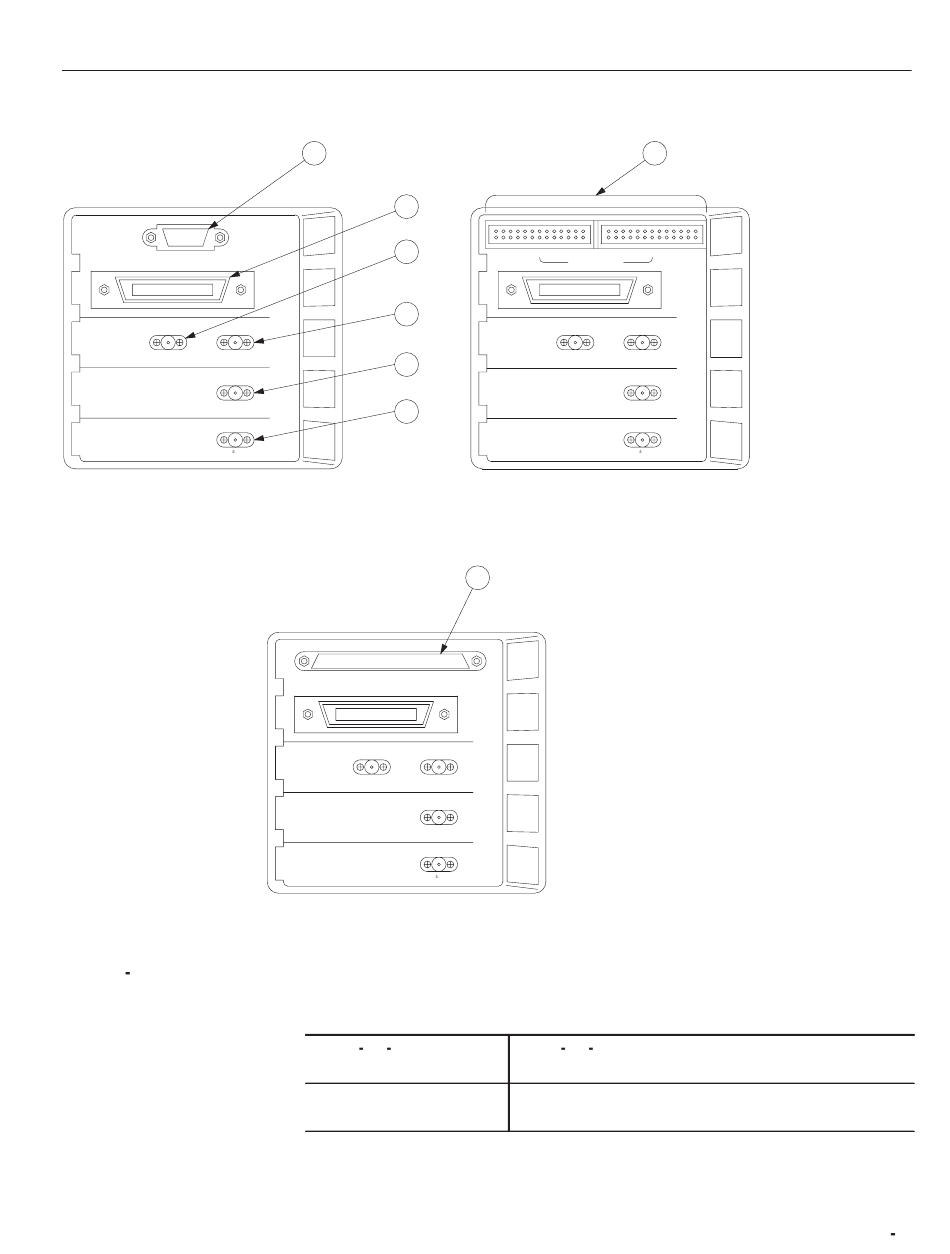

Figure 2 5: Rear Panel Detail
AWG2021 User Manual
28
29
30
31
32
33
35
CH1 DIGITAL DATA OUT
ECL LEVEL 50W INTO -2V
IEEE STD
488 PORT
CLOCK OUT MARKER 2 OUT
CH-1
2V FROM 50W 5V FROM 50W
MARKER 2 OUT
CH-2
5V FROM 50W
CLOCK IN
50W 2V MAX
Option 02+Option 03
(28) RS 232 C Connector
(29) IEEE STD 488
Connector
34
CH2 DIGITAL DATA OUT CH1 DIGITAL DATA OUT
TTL LEVEL FROM 50W
IEEE STD
488 PORT
CLOCK OUT MARKER 2 OUT
CH-1
2V FROM 50W 5V FROM 50W
MARKER 2 OUT
CH-2
5V FROM 50W
CLOCK IN
50W 2V MAX
Option 04
The RS 232 C connector enables remote control by a
computer via this serial interface.
The IEEE STD 488 connector enables remote control by a
computer via an IEEE STD 488 parallel interface.
