Tektronix AWG2021 User Manual page 389

UTILITY Menu
3 270

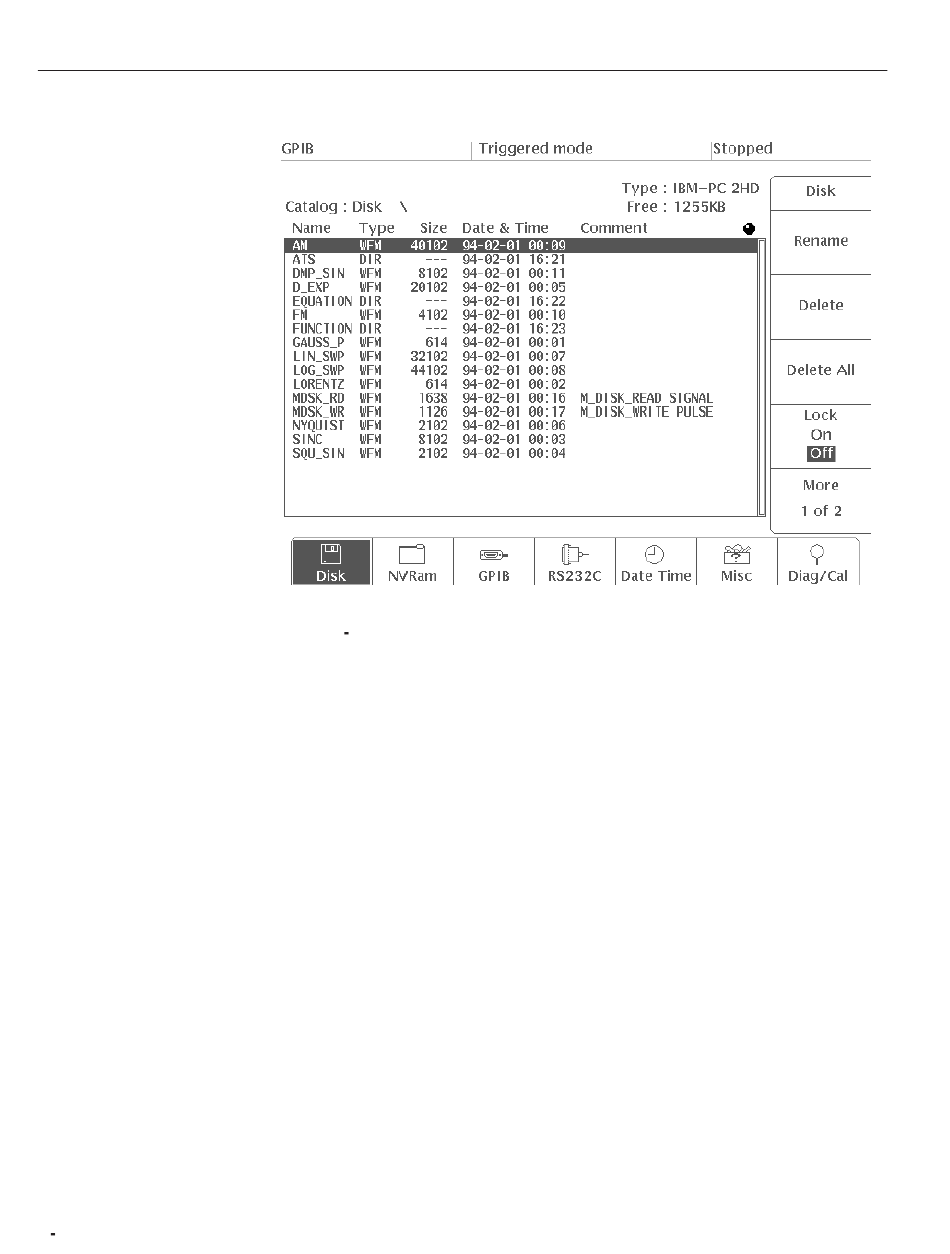

Figure 3 180: File and Directory Display in the Root Directory
2. Select More 1 of 2, then Make Directory from the side menu. The menu for
naming the directory is displayed.
3. Use the general purpose knob to input a directory name of AWG2021. See
Figure 3 -181. The method for inputting the directory name is the same as
the method for inputting a file name in the waveform editor. See "Naming a
File" in the discussion of the waveform editor.
AWG2021 User Manual
