(5) Catalog
(6) Button Operations
List of the waveform or sequence files in internal memory; a
sequence file is created by selecting files from this list.

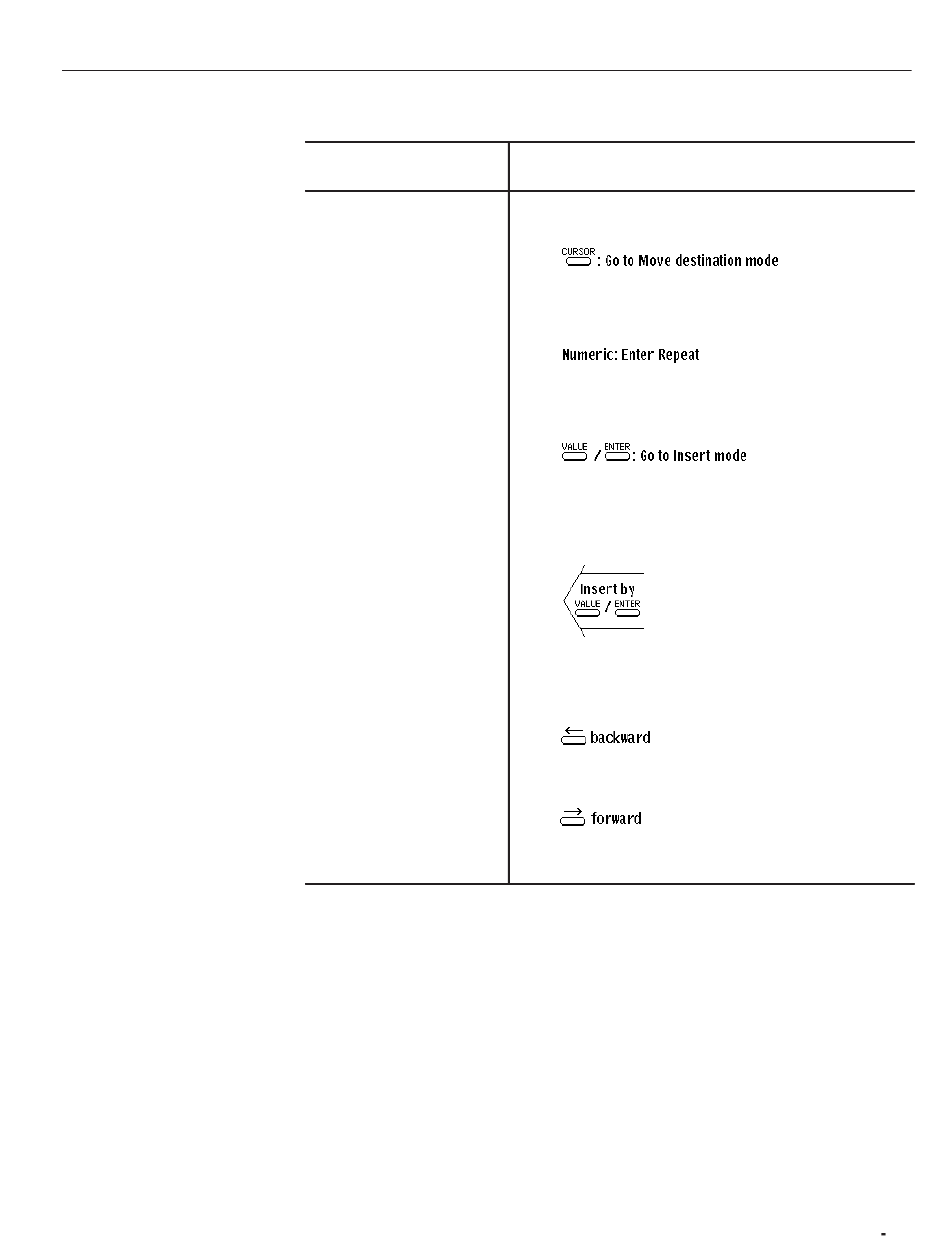

This area shows how the front panel buttons operate in this
menu.
When you press the CURSOR button, you can scroll through
the files in the Destination list or Repeat column with the
general purpose knob.
The repetition count is set with the numeric keys. Pressing the
VALUE or ENTER button enters the input value into the
Repeat column.
Pressing the VALUE or ENTER button puts the system into
insert mode. In this mode, files can be selected from the
Catalog and the selected files can be inserted into the
Destination list.
Pressing the VALUE or ENTER button inserts the file that is
displayed inverted within the Catalog directly before the
inverted display cursor in the Destination list.
Pressing the z button moves the inverted cursor left or up one
step in the Destination list or Repeat column.
Pressing the ! button moves the inverted cursor right or down
one step in the Destination list or Repeat column.
