FUEL SYSTEM (Programmed Fuel Injection)

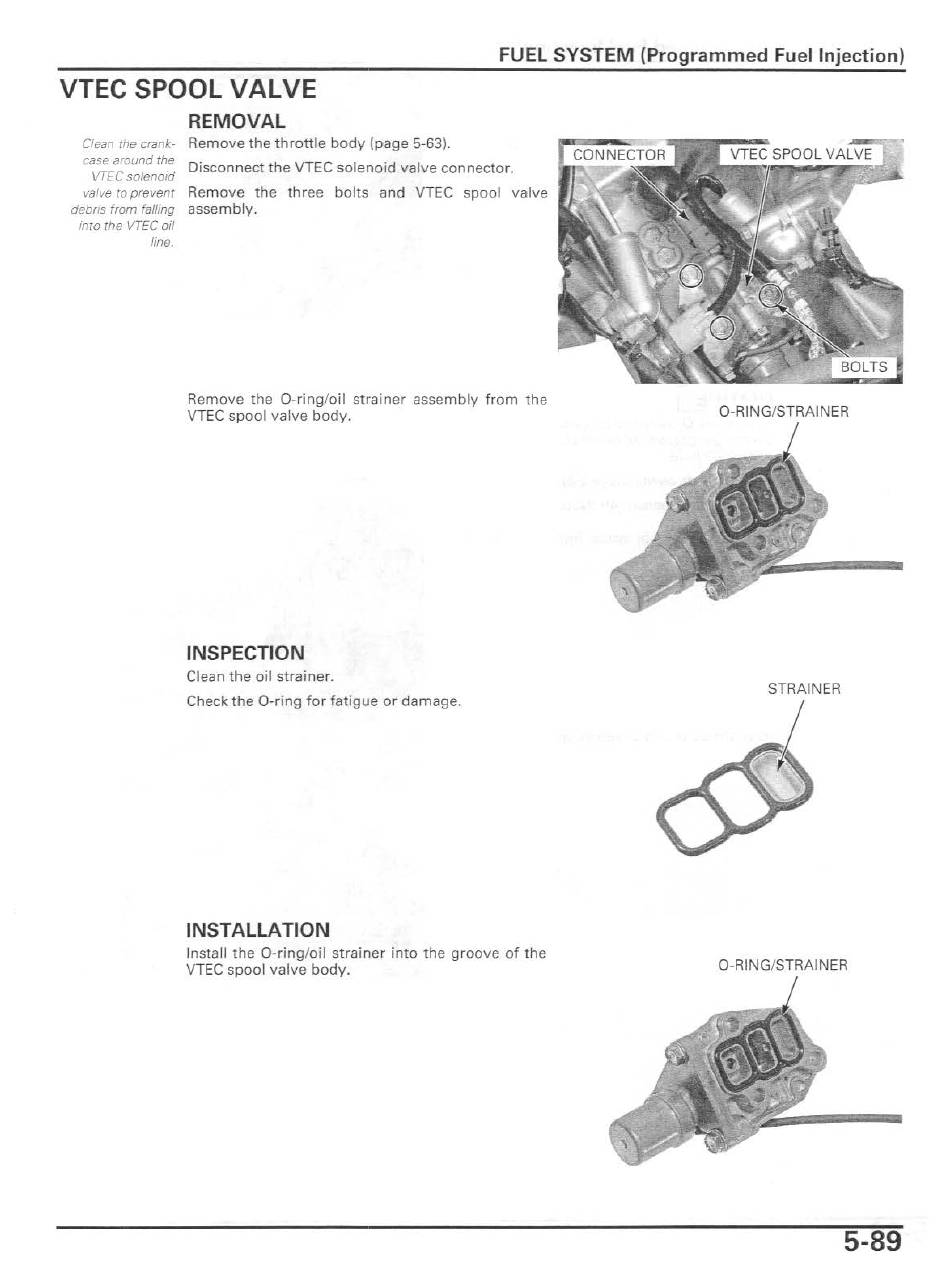

VTEC SPOOL VALVE
REMOVAL
Clean the crank-
Remove the throttle body {page 5-63).
case around the
Disconnect the VTEC solenoid valve connector.
VTEC solenoid
valve
ro
prevent
Remove the three bolts and VTEC spool valve
debris from falling
assembly.
into the VTEC oil
line.
Remove the 0 -ri ng/oil strainer assembly from the
VTEC spool valve body. ·
INSPECTION
Clean the oil strainer.
Check the 0-ring for fatigue or damage.
INSTALLATION
Install the 0 -ring/oil strainer into the groove of the
VTEC spool valve body.
0-RING/ STRAINER
0 -RING/ STRAINER
5-89
