Figure 132. Triggering Gptm With Mctm Update Event 1 - Holtek HT32F50231 User Manual

32-Bit Arm ® Cortex ® -M0+ MCU
HT32F50231/HT32F50241
Using One Timer to Trigger Another Timer to Start Counting
▄
Configure MCTM to operate in the master mode and to send its Update Event UEV as the trigger
output (MMSEL = 0x2).
▄
Configure the MCTM period by setting the CRR register.
▄
Configure GPTM to get the input trigger source from the MCTM trigger output (TRSEL = 0xA).
▄
Configure GPTM to be in the slave trigger mode (SMSEL = 0x6).
▄
Start MCTM by writing '1' to the TME bit.
f
CLKIN
MCTM
UEV1IF
MCTM
13 14
CNTR
GPTM
CNTR
GPTM
TME bit
GPTM
TEVIF

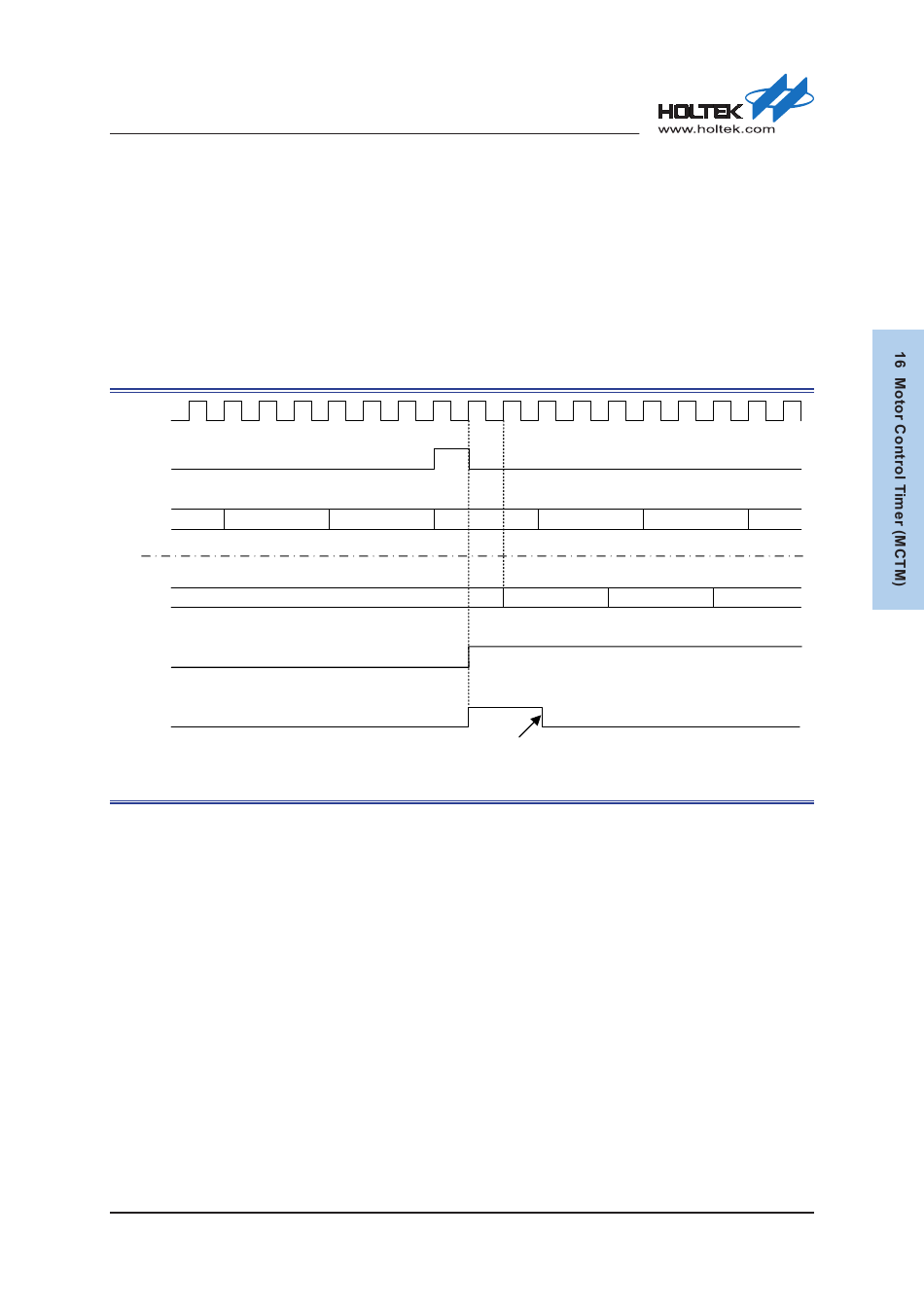

Figure 132. Triggering GPTM with MCTM Update Event 1
