HT32 MCU Touch Key Library User's Guide
D/N: AN0608EN
Introduction
The HT32 touch key library developed by Best Solution is a library that integrates all of the touch
key underlying driver library files. The library has pre-configured the touch-related MCU hardware,
and provides intuitive and flexible touch key sensitivity settings, while integrating common
functions such as key detection and power-saving sleep modes.
Using the HT32 touch key library simplifies the use of the MCU touch functions, allowing users to
get started quickly and reducing the development period. This document will describe in detail the
environmental configuration and library usage.
Environmental Configuration
Obtain HT32 Touch Key Library
Contact Best Solution's FAE or refer to its website: http://www.bestsolution.com.tw/EN/
Or download the library from the Holtek website: https://www.holtek.com
Obtain HT32 Firmware Library
Refer to the following link to quickly obtain the Holtek HT32 firmware library:
https://www.holtek.com/productdetail/-/vg/HT32F54231_41_43_53

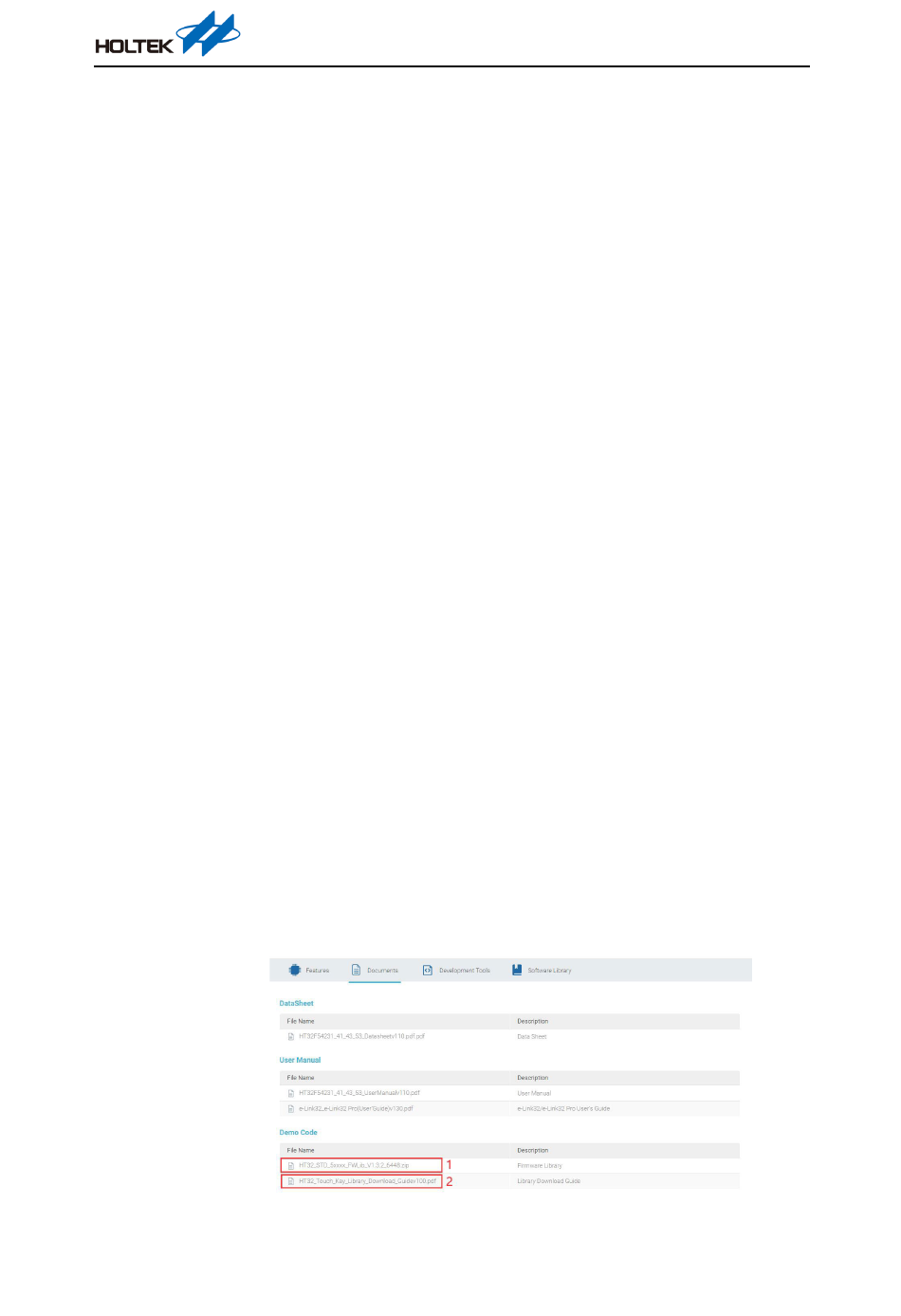

Open the link, select the Documents option as shown in Figure 1, where the red box 1 indicates the
location of the HT32 firmware library compressed files and the red box 2 indicates the location of
the touch key library download guide.
AN0608EN V1.10
HT32 MCU Touch Key Library User's Guide
Figure 1
1 / 12
December 2, 2022
