32-Bit Arm ® Cortex ® -M0+ MCU
HT32F50231/HT32F50241
Down-Counting
In this mode the counter counts continuously from the counter-reload value, which is defined in
the CRR register, to 0 in a count-down direction. Once the counter reaches 0, the Timer module
generates an underflow event and the counter restarts to count once again from the counter-reload
value. This action will continue repeatedly. The counting direction bit DIR in the CNTCFR register
should be set to 1 for the down-counting mode.
When the update event is set by the UEVG bit in the EVGR register, the counter value will also be
initialized to the counter-reload value.
CK_PSC
CNT_EN
CK_CNT
CNTR 3
CRR F5
CRR Shadow
Register
PSCR
PSCR Shadow
Register
PSC_CNT
Counter Underflow
Update Event Flag
Write a new value

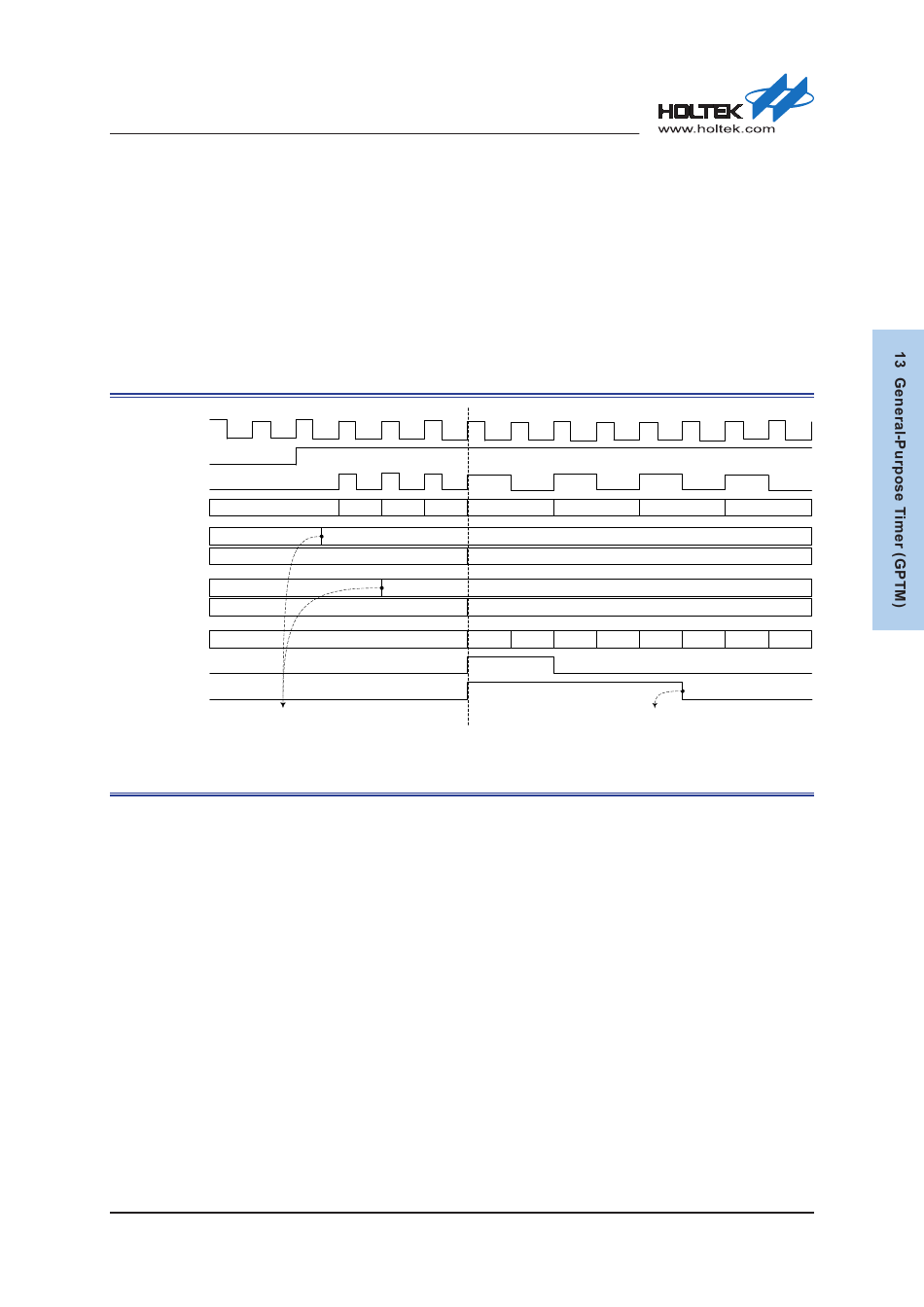

Figure 32. Down-counting Example

Rev. 1.00
2 1 0
F5
0
0
0
Update a new value
187 of 486
36 35
36
36
1
1
0 1 0 1 0
Software clearing
34 33
1 0 1
July 31, 2018
