Master Controller; Figure 104. Master Mctmn And Slave Gptm Connection; Figure 105. Mto Selection - Holtek HT32F50231 User Manual

32-Bit Arm ® Cortex ® -M0+ MCU
HT32F50231/HT32F50241

Master Controller

The MCTMs and GPTMs can be linked together internally for timer synchronisation or chaining.
When one MCTM is configured to be in the Master Mode, the MCTM Master Controller will
generate a Master Trigger Output (MTO) signal which can reset, restart, stop the Slave counter or
be a clock source of the Slave Counter. This can be selected by the MMSEL field in the MDCFR
register to trigger or drive another MCTM or GPTM, if exists, which should be configured in the
Slave Mode.

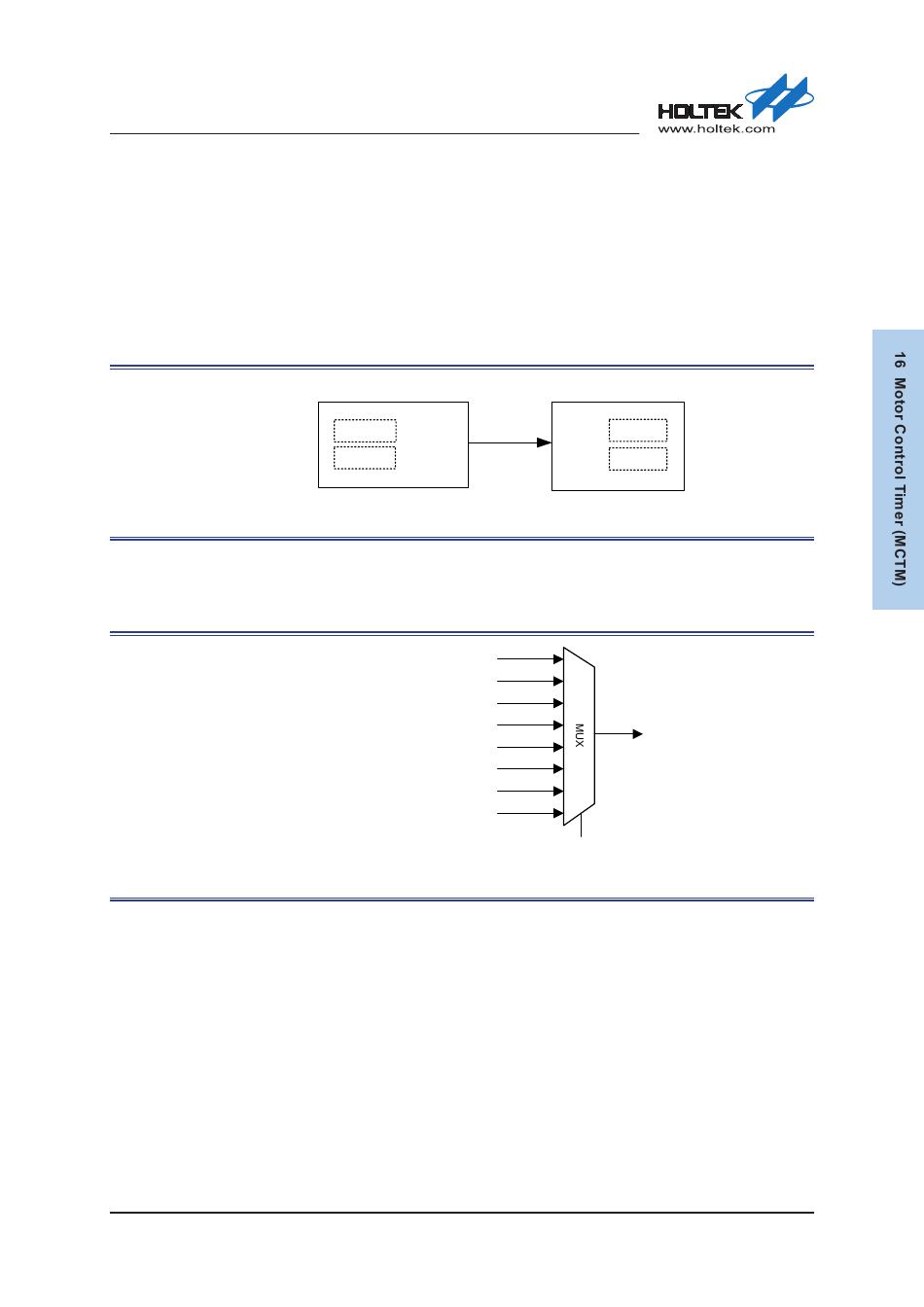

Figure 104. Master MCTMn and Slave GPTMm Connection
The Master Mode Selection bits, MMSEL, in the MDCFR register are used to select the MTO
source for synchronising another slave MCTM or GPTM if exists.

Figure 105. MTO Selection

For example, setting the MMSEL field to 0x5 is to select the CH1OREF signal as the MTO signal
to synchronise another slave MCTM or GPTM. For a more detailed description, refer to the related
MMSEL field definitions in the MDCFR register.
