32-Bit Arm ® Cortex ® -M0+ MCU
HT32F50231/HT32F50241
Using One Timer to Trigger Another Timer Start Counting
▄
Configure GPTM to operate in the master mode to send its Update Event UEV as the trigger
output (MMSEL = 0x2).
▄
Configure the GPTM period by setting the CRR register.
▄
Configure MCTM to get the input trigger source from the GPTM trigger output (TRSEL = 0xA).
▄
Configure MCTM to be in the slave trigger mode (SMSEL = 0x6).
▄
Start GPTM by writing '1' to the TME bit.
f
CLKIN
GPTM
UEVIF
GPTM
CNTR
MCTM
CNTR
MCTM
TME bit
MCTM
TEVIF

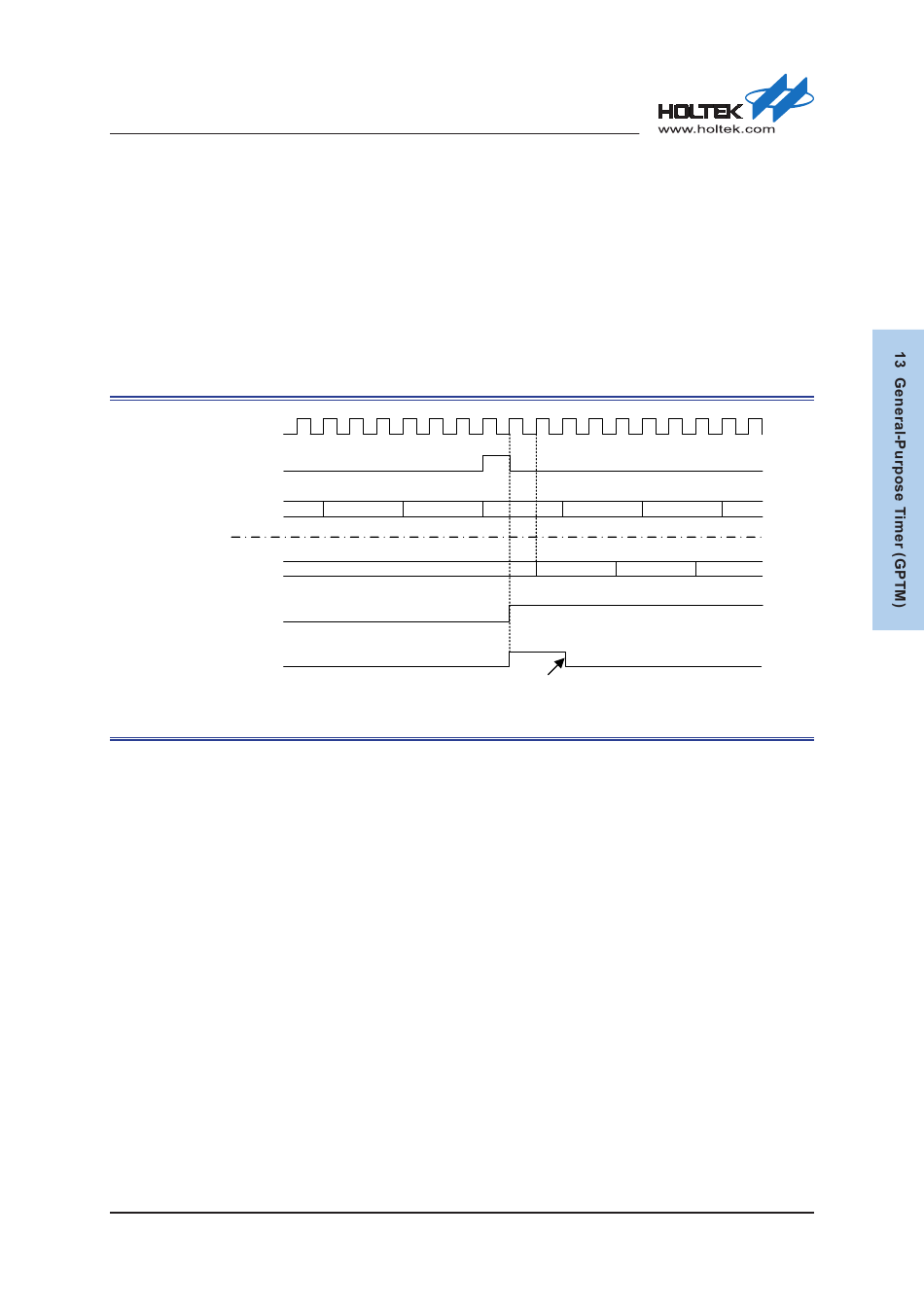

Figure 61. Triggering MCTM with GPTM Update Event

Rev. 1.00
13 14 15
FA
210 of 486
00 01
FB FC
Software clearing
02 03
FD
