The GPTM can be synchronized with an external trigger in several modes including the Restart
mode, the Pause mode and the Trigger mode which can be selected by the SMSEL field in the
MDCFR register. The trigger input of these modes comes from the STI signal which is selected by
the TRSEL field in the TRCFR register. The operation modes in the Slave Controller are described
in the accompanying sections.
Trigger Controller

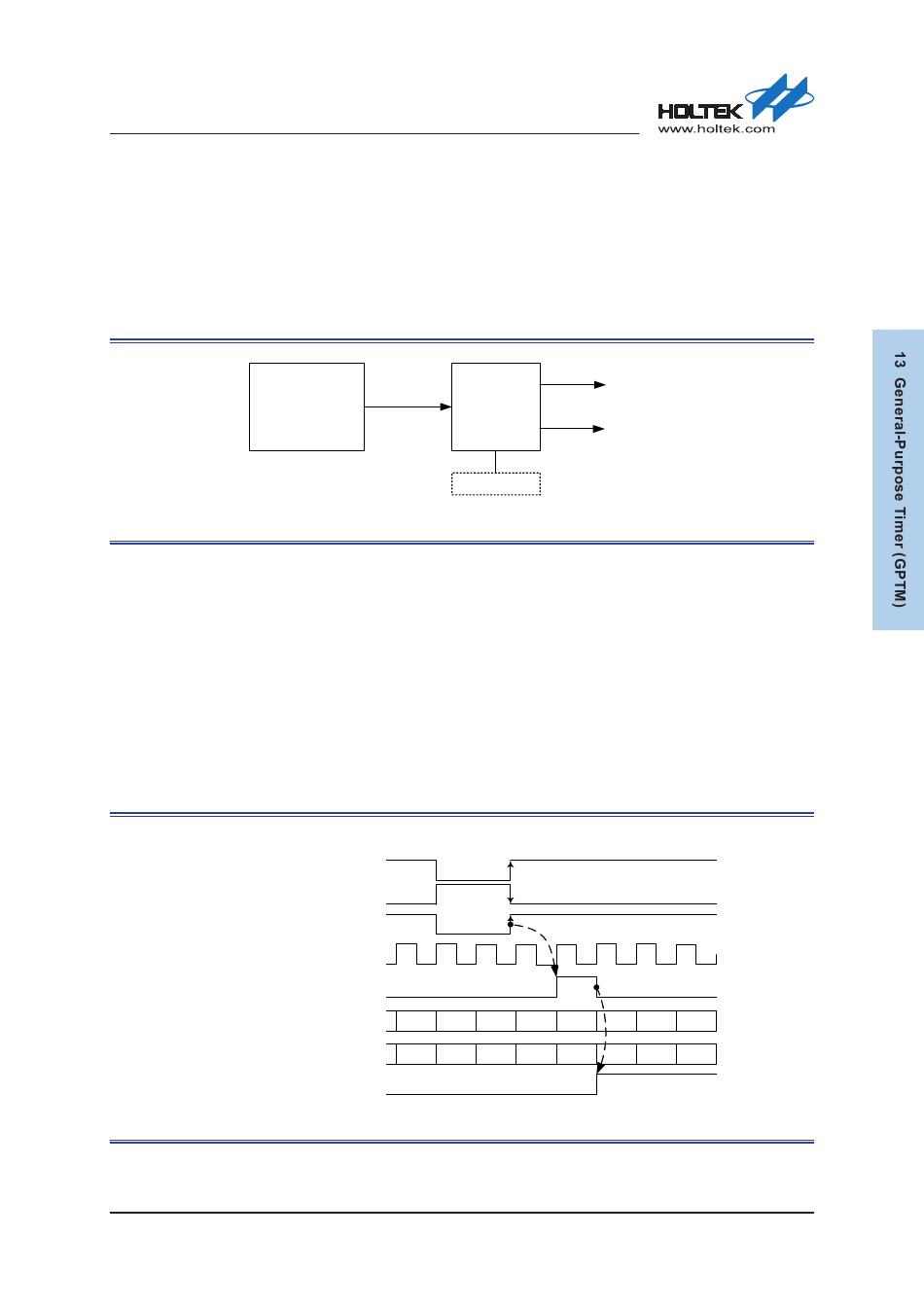

Figure 36. Slave Controller Diagram
Restart Mode
The counter and its prescaler can be reinitialized in response to a rising edge of the STI signal.
When an STI rising edge occurs, the update event software generation bit named UEVG will
automatically be asserted by hardware and the trigger event flag will also be set. Then the counter
and prescaler will be reinitialized. Although the UEVG bit is set to 1 by hardware, the update event
does not really occur. It depends upon whether the update event disable control bit UEVDIS is set
to 1 or not. If the UEVDIS is set to 1 to disable the update event to occur, there will no update event
be generated, however the counter and prescaler are still reinitialized when the STI rising edge
occurs. If the UEVDIS bit in the CNTCFR register is cleared to enable the update event to occur,
an update event will be generated together with the STI rising edge, then all the preloaded registers
will be updated.
Figure 37. GPTM in Restart Mode
Rev. 1.00
STI
Timer Counter Reload Register CRR = 32
STI source signal
(polarity=0)
STI source signal
(polarity=1)
STI
CK_CNT
UEVG bit
(reset counter)
CNTR
27
28
(Up-counting)
CNTR
27
26
(Down-counting)
TEVIF
191 of 486
Trigger Event
Slave
Controller
Reset/Stop/Start Counter
SMSEL
Restart/Pause/Trigger Mode
Sync.
Trigger Event
29
30
31
0
25
24
23
32
1
2
31
30
