Timer Interconnection

The timers can be internally connected together for timer chaining or synchronization. This can
be implemented by configuring one timer to operate in the master mode while configuring another
timer to be in the slave mode. The following figures present several examples of trigger selection
for the master and slave modes.
Using One Timer to Trigger Another Timer to Start or Stop Counting
▄
Configure MCTM to be in the master mode and to send its channel 0 Output Reference signal
CH0OREF as a trigger output (MMSEL = 0x4).
▄
Configure the MCTM CH0OREF waveform.
▄
Configure the GPTM to receive its input trigger source from the MCTM trigger output (TRSEL
= 0xA).
▄
Configure GPTM to operate in the pause mode (SMSEL = 0x5).
▄
Enable GPTM by writing '1' to the TME bit.
▄
Enable MCTM by writing '1' to the TME bit.
Master MCTM
f
CLKIN
MCTM
CH0OREF
MCTM
32
CNTR
Slave GPTM
GPTM
CNTR
GPTM
TEVIF

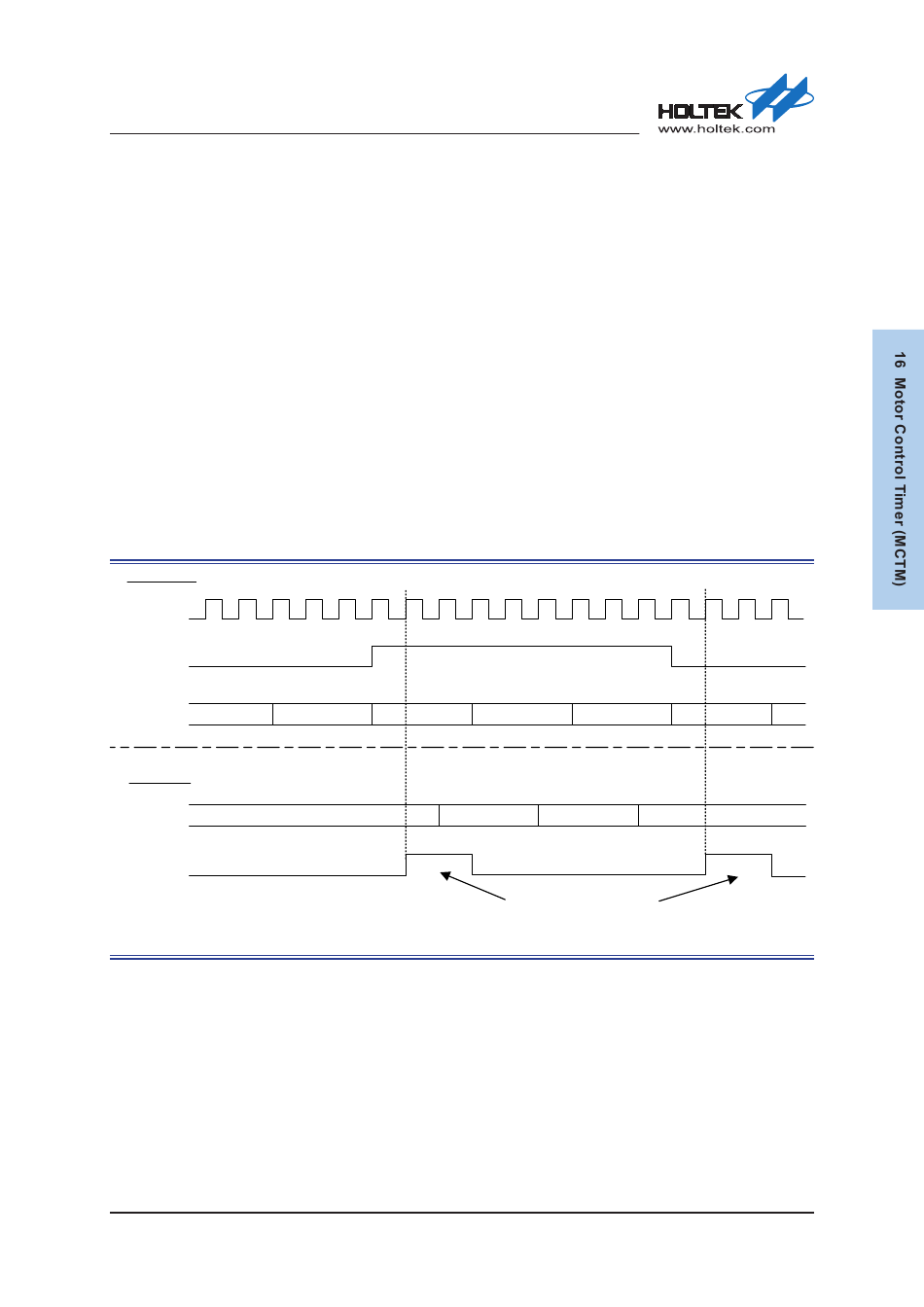

Figure 131. Pausing GPTM using the MCTM CH0OREF Signal
