Figure 43. Input Capture Mode - Holtek HT32F50231 User Manual

32-Bit Arm ® Cortex ® -M0+ MCU
HT32F50231/HT32F50241
Capture Counter Value Transferred to CHxCCR
When the channel is used as a capture input, the counter value is captured into the Channel Capture
/ Compare Register (CHxCCR) when an effective input signal transition occurs. Once the capture
event occurs, the CHxCCIF flag in the INTSR register is set accordingly. If the CHxCCIF bit is
already set, i.e., the flag has not yet been cleared by software, and another capture event on this
channel occurs, the corresponding channel Over-Capture flag, named CHxOCF, will be set.
f
CLKIN
GT_CH0
(TI0)
25 26
CNTR
CHxCCR
0
CHxCCIF
CHxOCF

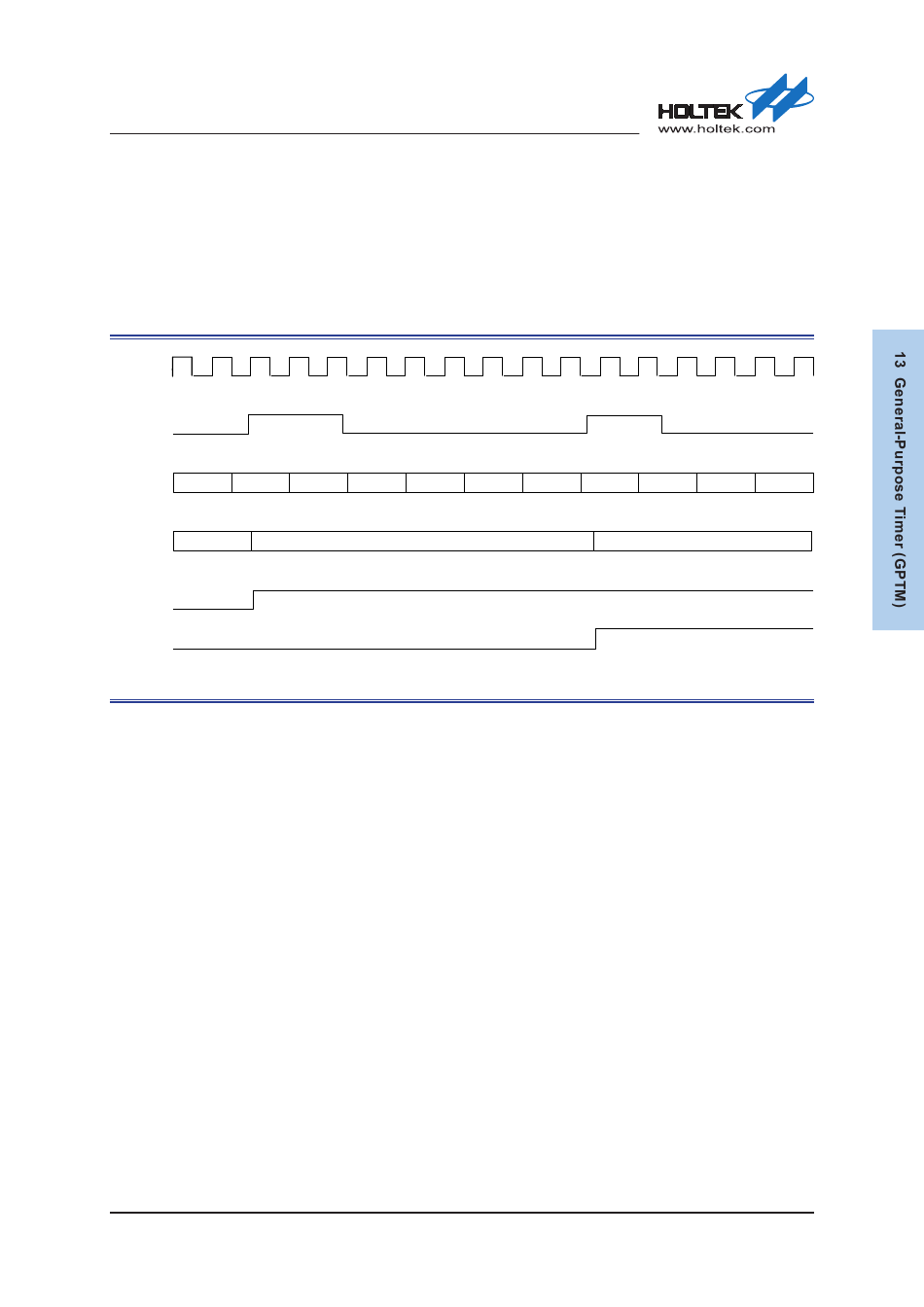

Figure 43. Input Capture Mode
