JEOL JSPM-5200 Instructions Manual page 97

５ MEASUREMENT OPERATION

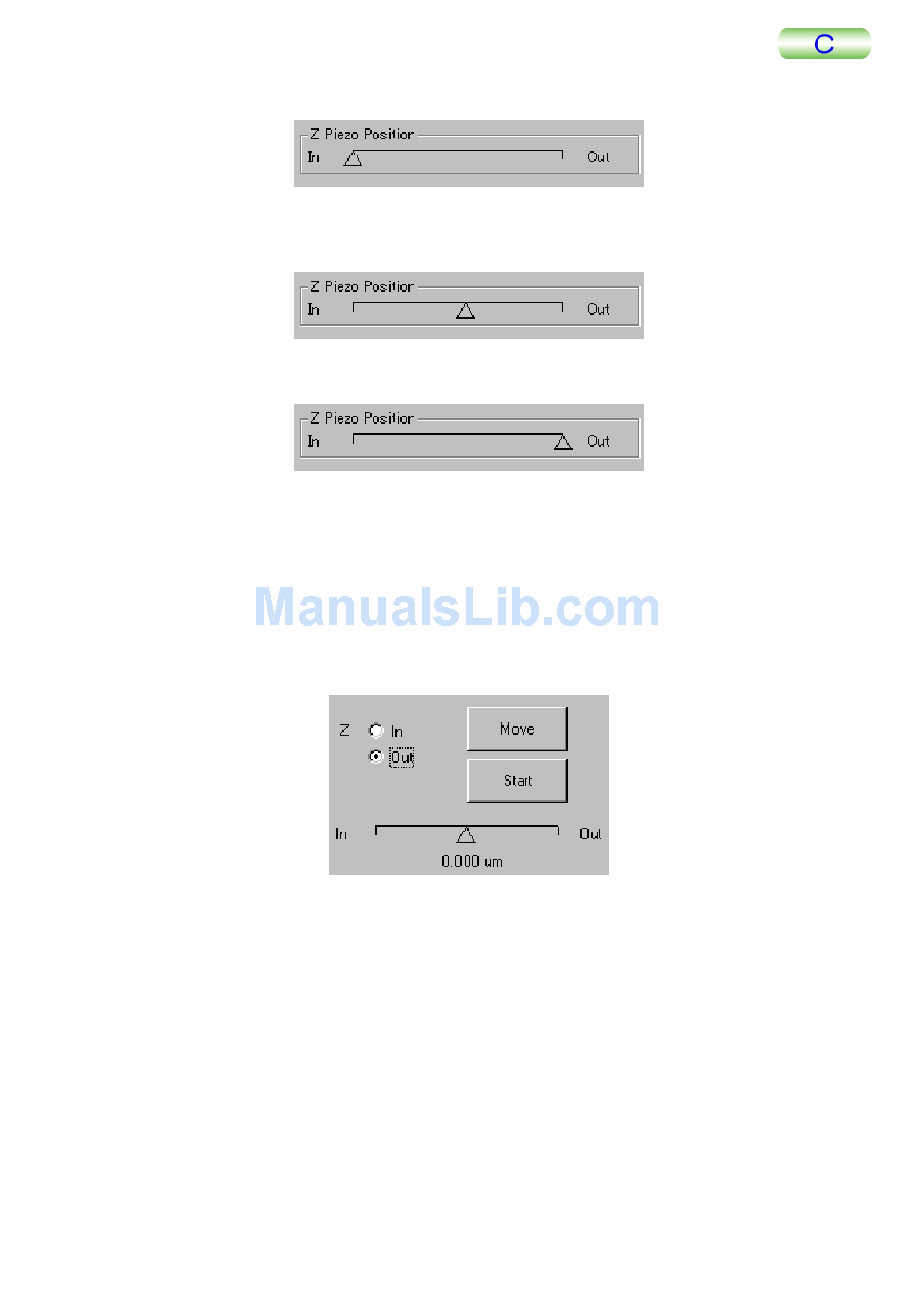

Condition in which the specimen and cantilever tip are completely separated
Condition in which the cantilever tip is in contact with the specimen
■ Terminating observation
Terminate observation according to the following procedure:
1.
Stop scanning.
2.
Click on the Retract On button to retract the cantilever tip.
3.
Click on the Out radio button for Z and click on the Start button.
4 .
When the cantilever has moved 0.1 to 0.2 mm away from th
on the Stop button to stop the movement.
5 .
Turn the manual approach screw to move the specimen sta
5-34
(condition prior to approach)
Neutral position (condition at the end of approach)
e specimen, click
ge down.
TMPM5200-2
