7.4.2

WinSPM image file

Although WinSPM image files are based on the standard TIFF, the structure of WinSPM
TIFF files is partly different from the standard TIFF file structure.
7.4.2a

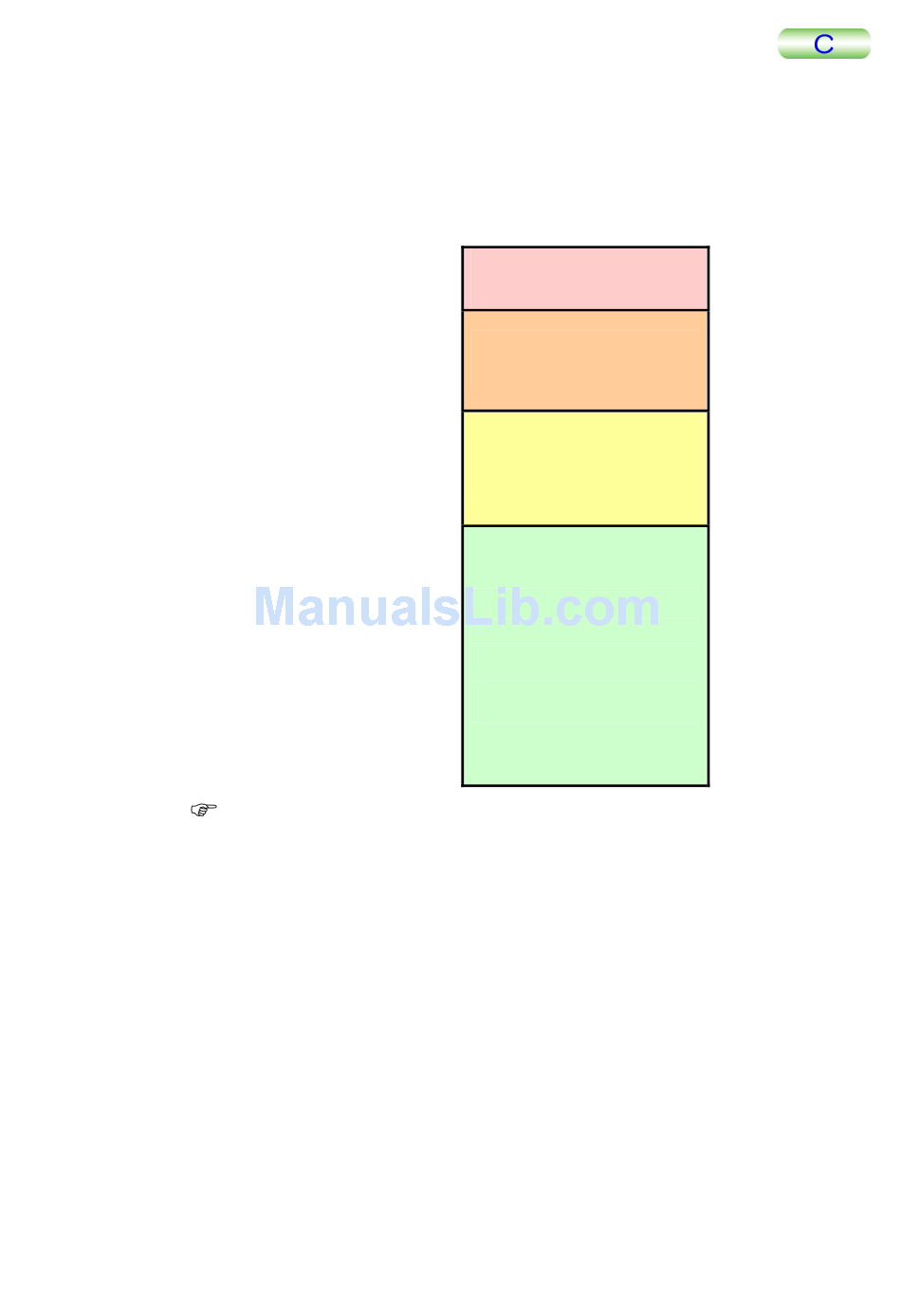

Overall structure of WinSPM image file

Directory Pointer + Directory Size
The data address and file size depend on the kind of image data. In principle,
however, the WinSPM image file is compliant with the structure shown above.
■ Image Header
As can be seen from the above illustration, in WinSPM, Image Header is inserted
between Header and Directory. This file area contains information on measurement
conditions in SPM measurement. Refer to 7.4.2ｂ for further details of the Image Header
data structure.
TMPM5200-2
0x0000
0x000A
Directory Pointer
EOF
Header
Header in TIFF
Image Header
SPM measurement data
Directory
TIFF TAG
SPM Data
Image data
FFT Data
CITS Data
Montage Data
Etc.
