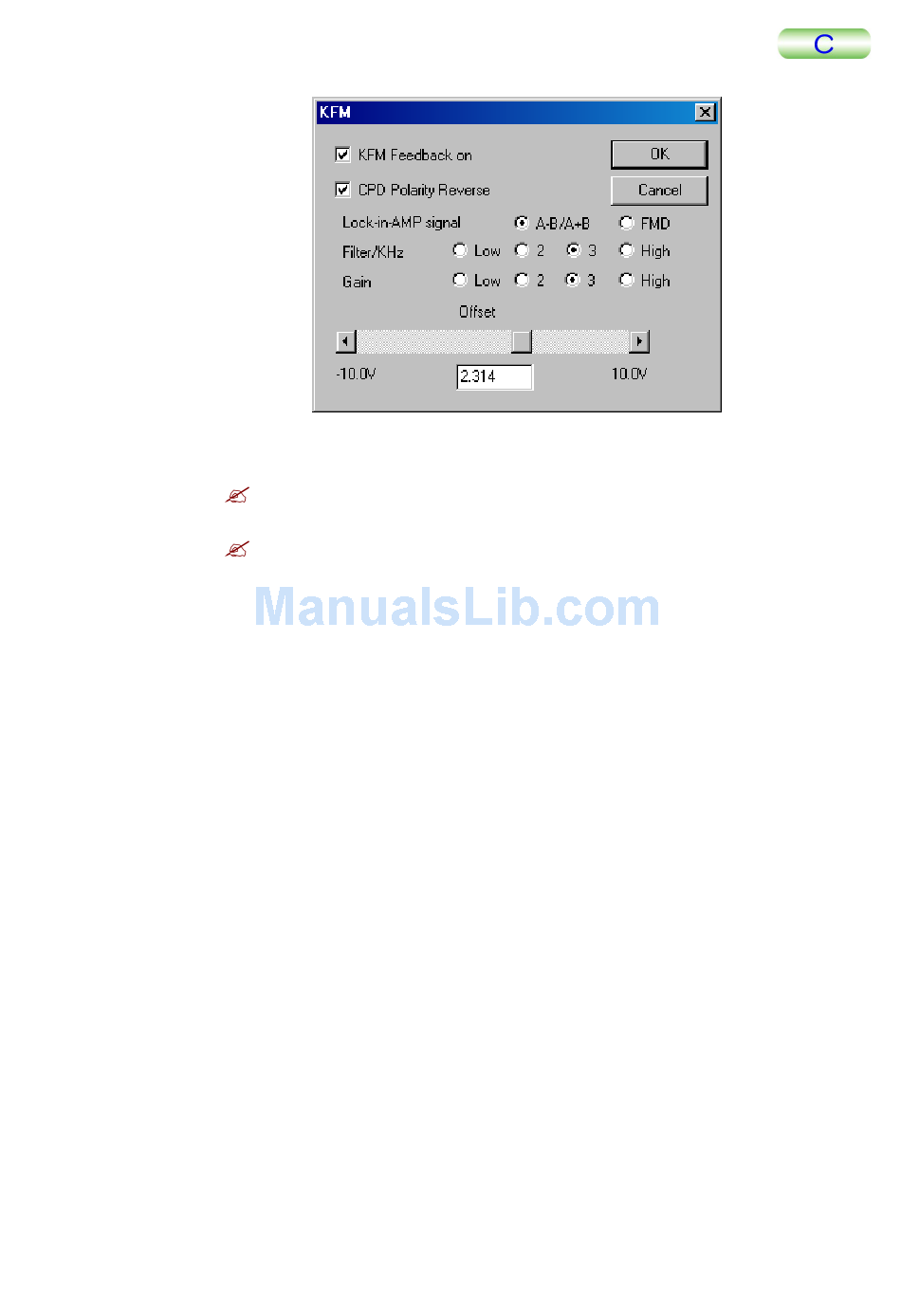

JEOL JSPM-5200 Instructions Manual page 114

8.
Click on the Retract Off button and set the cantile
again.
9.
Set oscilloscope (optional) CH2 to AUX1 to monitor CH2; then reset Filter
and Gain in the KFM window according to the potential resolution.
TMPM5200-2
At this stage, feedback will be executed to set the ω component (one cycle) to
zero.
If the lock-in amplifier meter needle swings out of scale (or in the case of
Model 5110, the OVLD LED lights up), raise its sensitivity using the Lock-In
Amplifier window.
５ MEASUREMENT OPERATION
ver into an approach state
5-51
