JEOL JSPM-5200 Instructions Manual page 415

• Wireframe
Specifies the wire frame interval for a Grid display.
X Grid Spacing
Y Grid Spacing
• Surface
Used to adjust the surface drawing for an Illuminated display.
Diffuse level
Specular level
Shininess
• Show Light Vectors
Checking this illustrates the direction of the illuminated light in the image.
• Colour
Specifies the drawing color for an Illuminated display.

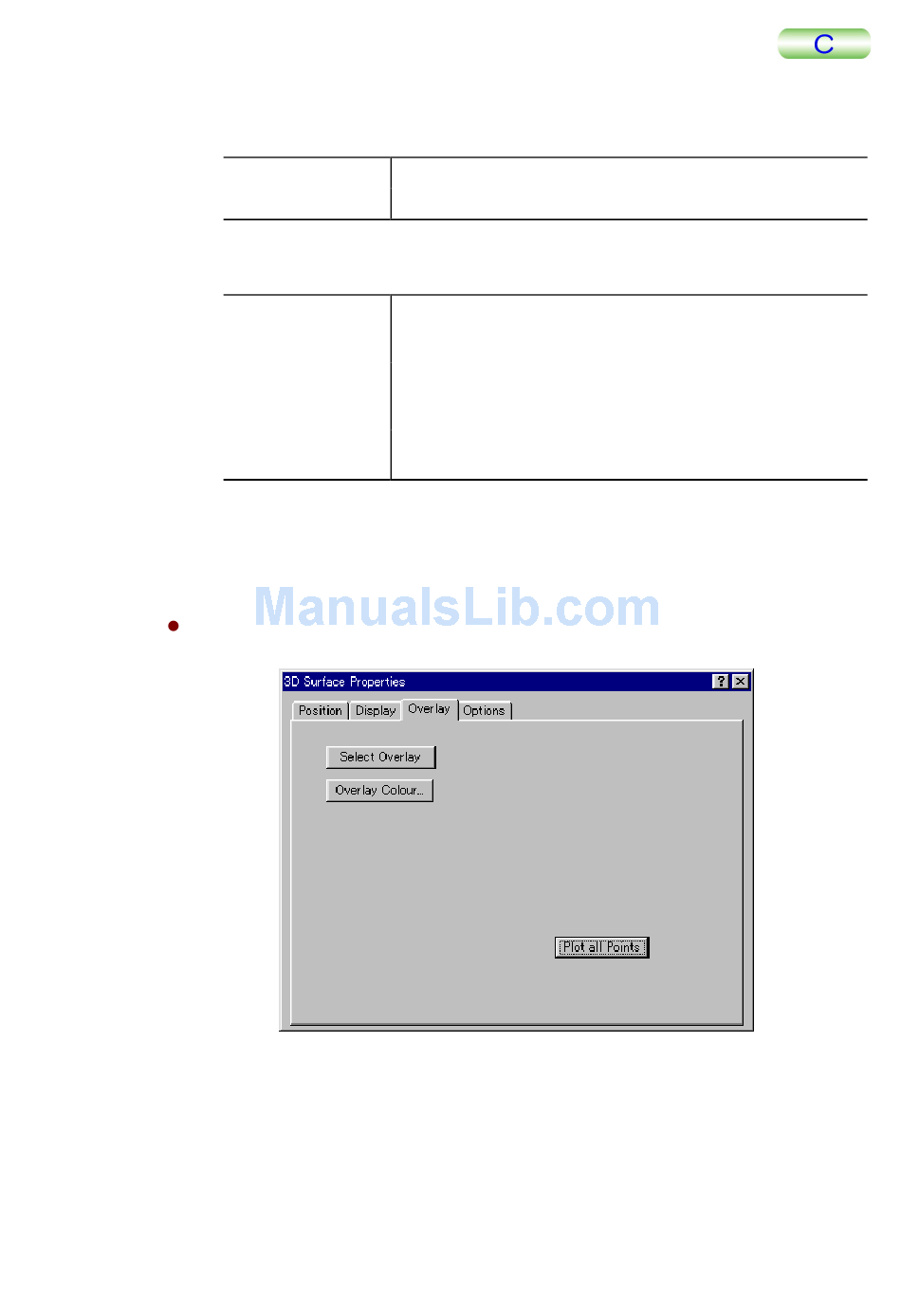

Overlay tab (combined display setting)
This function sets the combined images for a Merge display.
• Select Overlay
When you click this item, the Select Data Item window opens, and a list of images
currently stored in the memory appears. Here, select the images that you wish to
combine.
• Overlay Colour
Specify the display drawing colors of the images to be combined and displayed.
TMPM5200-2
X direction frame interval
Y direction frame interval
Specify the light diffusion at the surface. Increasing this value
results in a drawing in which the illumination light is highly
dispersed (scattered) at the surface.
Specifies the degree of light reflected from the surface. Increasing
this value results in a drawing in which the illumination light is
highly reflected at the surface.
Adjusts the shininess of the surface. Increasing this value causes the
brightness to decrease.
６ ANALYSIS OPERATION
6-85
