4 PREPARATION FOR OBSERVATION
4.1.3

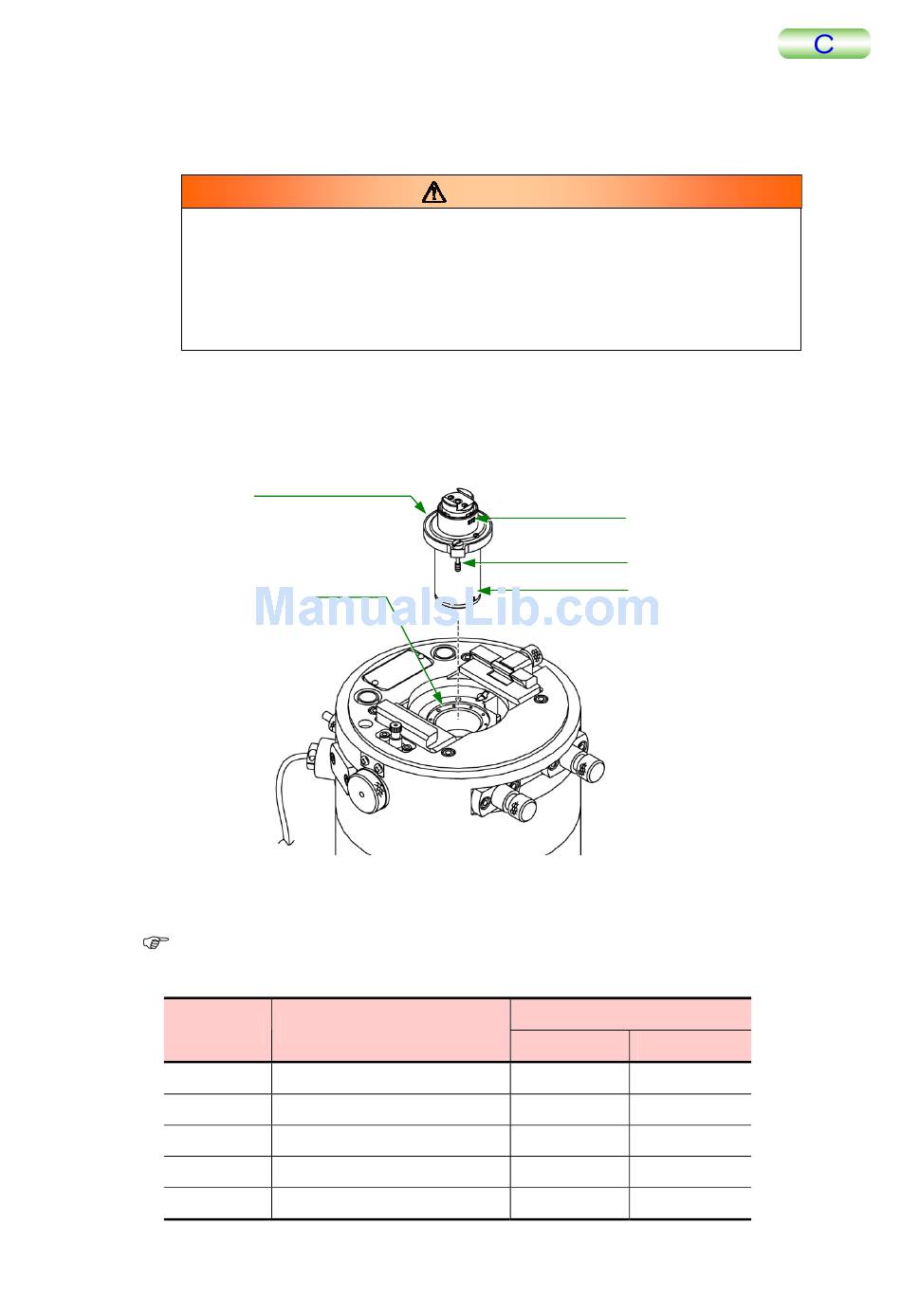

Mounting the Scanner Holder

1.
Turn off the SPM CONTROL unit.
Be sure to turn off the power to the SPM CONTROL unit in advance
when mounting or dismounting the scanner holder, specimen
holder or SPM head unit. There is a risk of electric shock due to the
high voltage applied to the connector pins from the SPM CONTROL
unit.
2.
Select the scanner holder having the most suitable scanning range according
to the specimen to be observed (if you have optional scanner holders). Insert
it into the specimen stage along the keyway. Then, lock it with the two
fastening screws.
When you replace the scanner holder with an optional one, you have to designate the
new one using the WinSPM software. For the designating procedure.
Refer to Section 5.10.1, "SPM Scan Menu."
The engravings of the scanner holder are as follows.
Engraving
WSC
WZS
SWZ
4-4
Keyway
Specimen stage
Type of scanner
STD Standard scanner
NSC Narrow area scanner
Wide area scanner
Scanner for biological material
Scanner for rugged surfaces
WARNING
Engraving
Scanning range
Ｘ Ｙ
10
1
80
50
30
Fastening screw
Scanner holder
Ｚ
3
1
5
10
15
TMPM5200-2
