7.2.3
Saving and Loading the Motor-Drive Position Calibration
Values
The WinSPM software allows the motor-drive positions to be calibrated. Similarly to
scanner-sensitivity settings, record the calibrated values of the motor-drive positions on a
floppy disk or another memory device other than the hard disk.
Saving motor-drive position calibration settings
1.
Start the WinSPM measurement
2.
Select Measurement from the SPM Scan pull-down menu.
3.

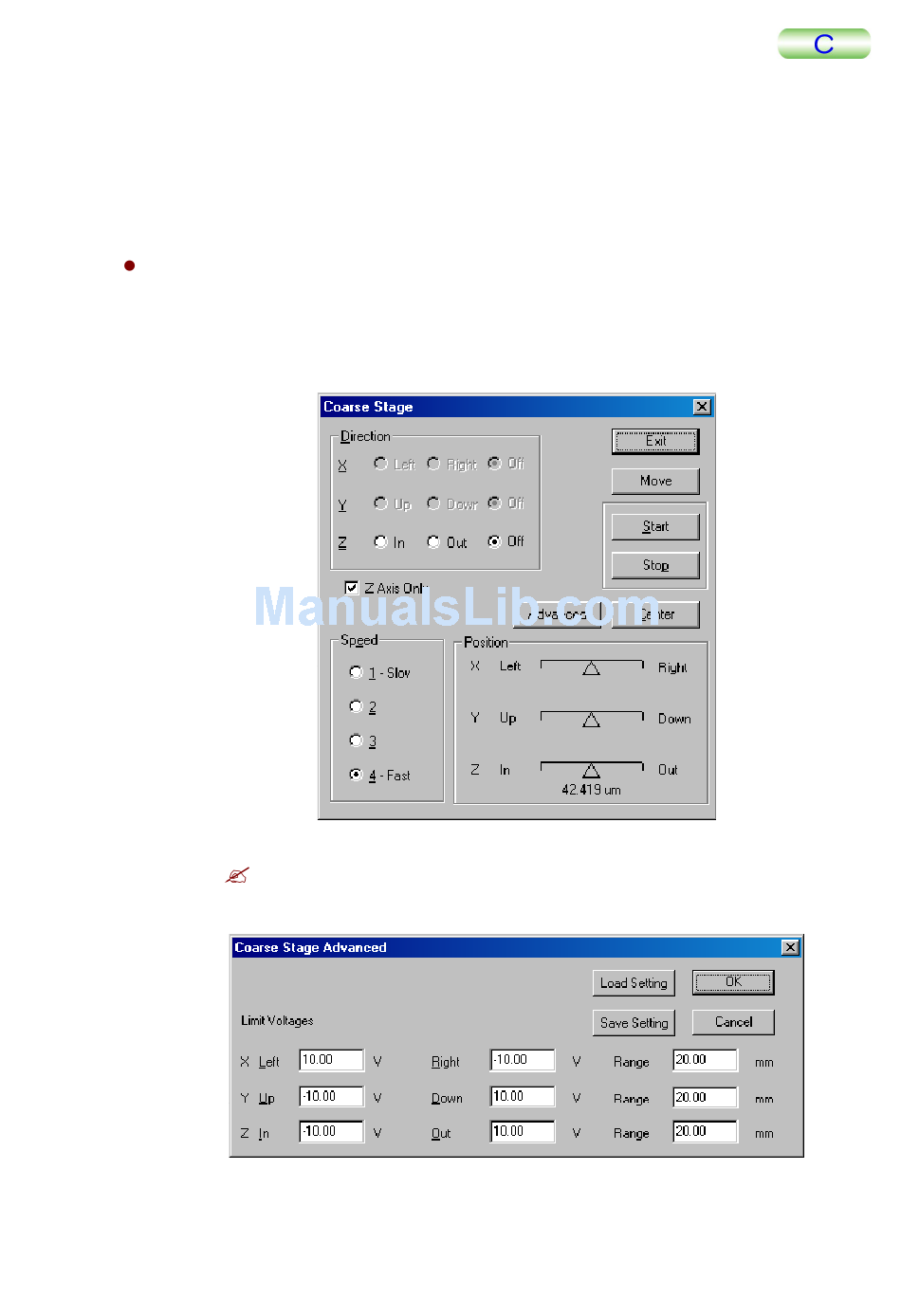

Click on Large Stage Control to open the Coarse Stage window.
4.
Click on Advanced to open the Coarse Stage Advanced window.
5.
Click on Save Setting to display the Save As dialog box.
The file extension becomes *.stg.
TMPM5200-2
Unless the system is started as the system administrator privilege, the Ad-
vanced button will not function.
mode as the system administrator privilege.
7 APPENDIX
7-13
