• Centering
Adjust the display position (Pan) and enlargement ratio (Zoom) on the screen.

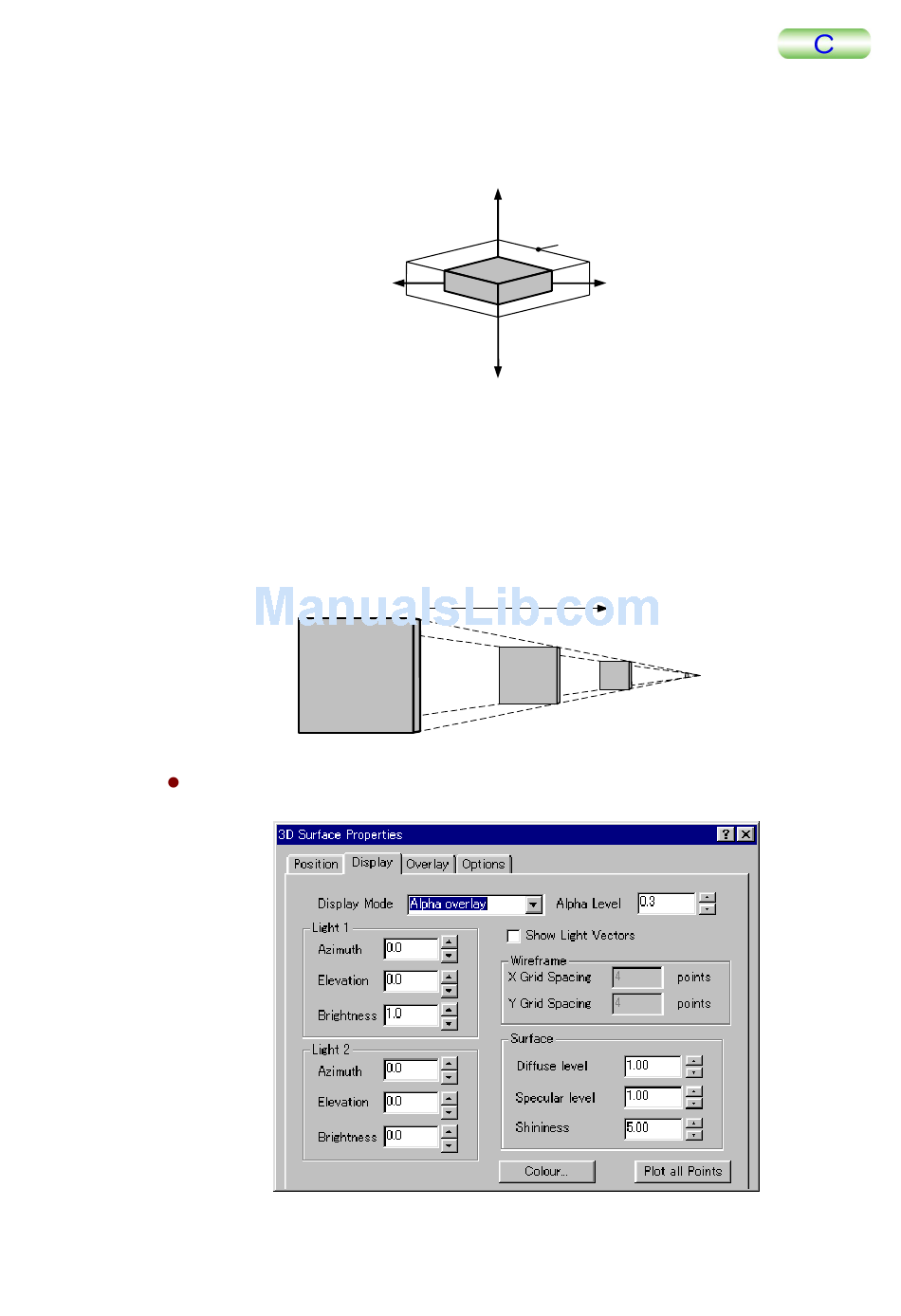

• Perspective
Specify the distance from the observation point of the 3-dimensional image. (0.0 –
1.9)
If you increase this value, the image will appear as a 3-dimensional image that is
viewed from a long distance away. As you increase this value, the image moves
away from the observation position (display screen) toward the disappearance point
(infinite-point).
Display tab (drawing setting)
TMPM5200-2
Perspective = 0.0
Pan
Zoom
Pan
Perspective = 1.9
