6.13.4 Group Plot

A selected graph is overlaid on the current (displayed) graph.
1.
Select Group Plot from the Analyse pull-down menu.

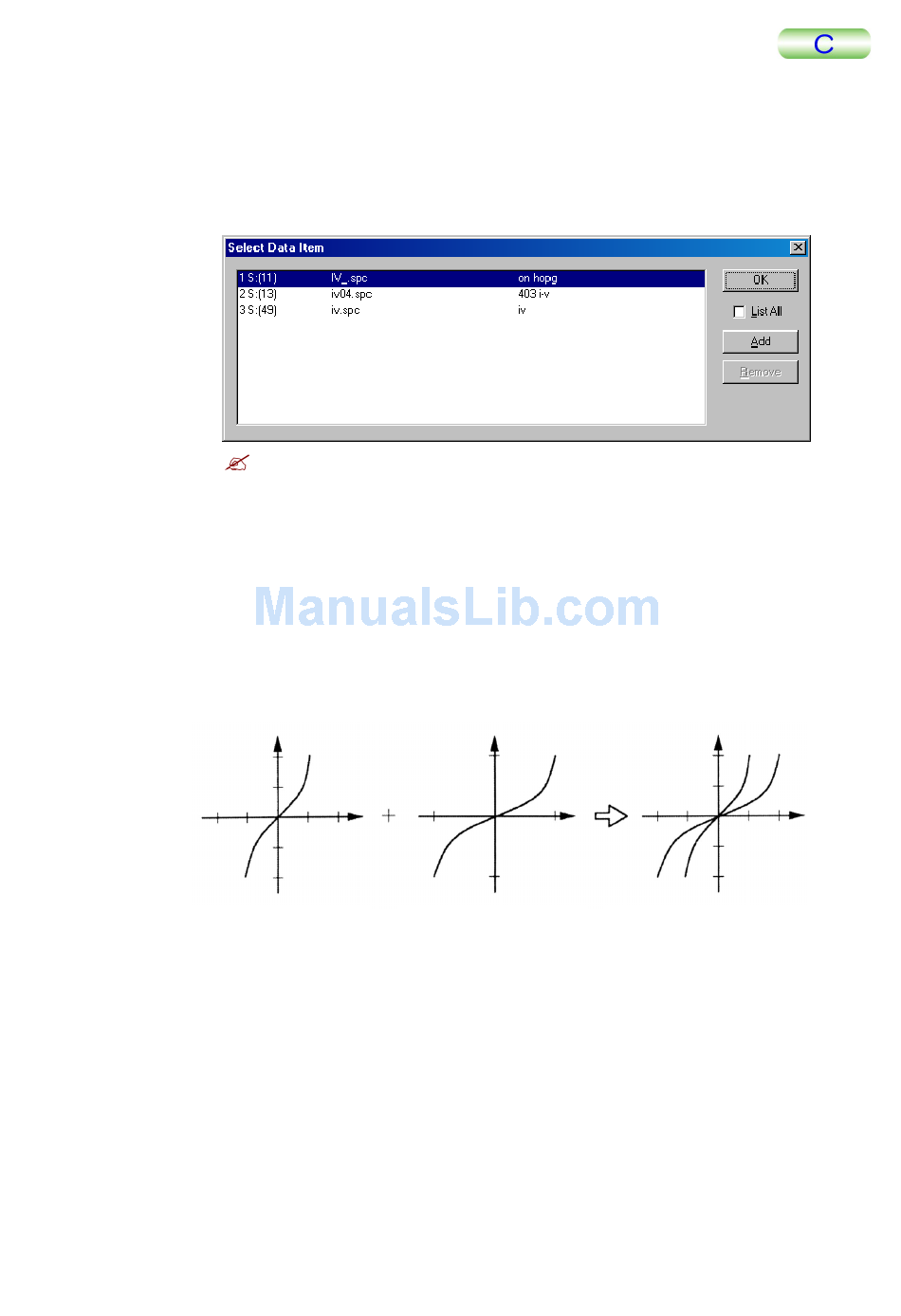

The graph display screen and the Select Data Item window are displayed.
2.
Select a graph to overlay.
Select a graph from the list and click Add to display a graph.
3.
Continue processing
Multiple graphs are overlaid by repeating graph selection. The vertical axis and
horizontal axis of the graph are automatically updated.
If there is any graph you want to remove from the display, select the data you want
to remove from the list and click Remove.
—10 —5
—10
Current graph
Clicking the OK in the graph selection window finishes the operation.
TMPM5200-2
Only SPS data of the same type as the current data is displayed in the Select
Data Item window. To display all the data existing in the memory, check List
All.
10
5
5 10
—5
Graph to be overlaid
5
—5 5
—5
６ ANALYSIS OPERATION
10
5
—10 —5 5 10
—5
—10
Overlaid graph
(The scale of the original graph is
applied to the overlaid graph.)
6-107
