５ MEASUREMENT OPERATION
■ CCD Camera System Ctrl+
This displays the CCD camera window that shows images from the CCD camera.
For details, refer to Sect.5.10.6 "CCD Camera."
■

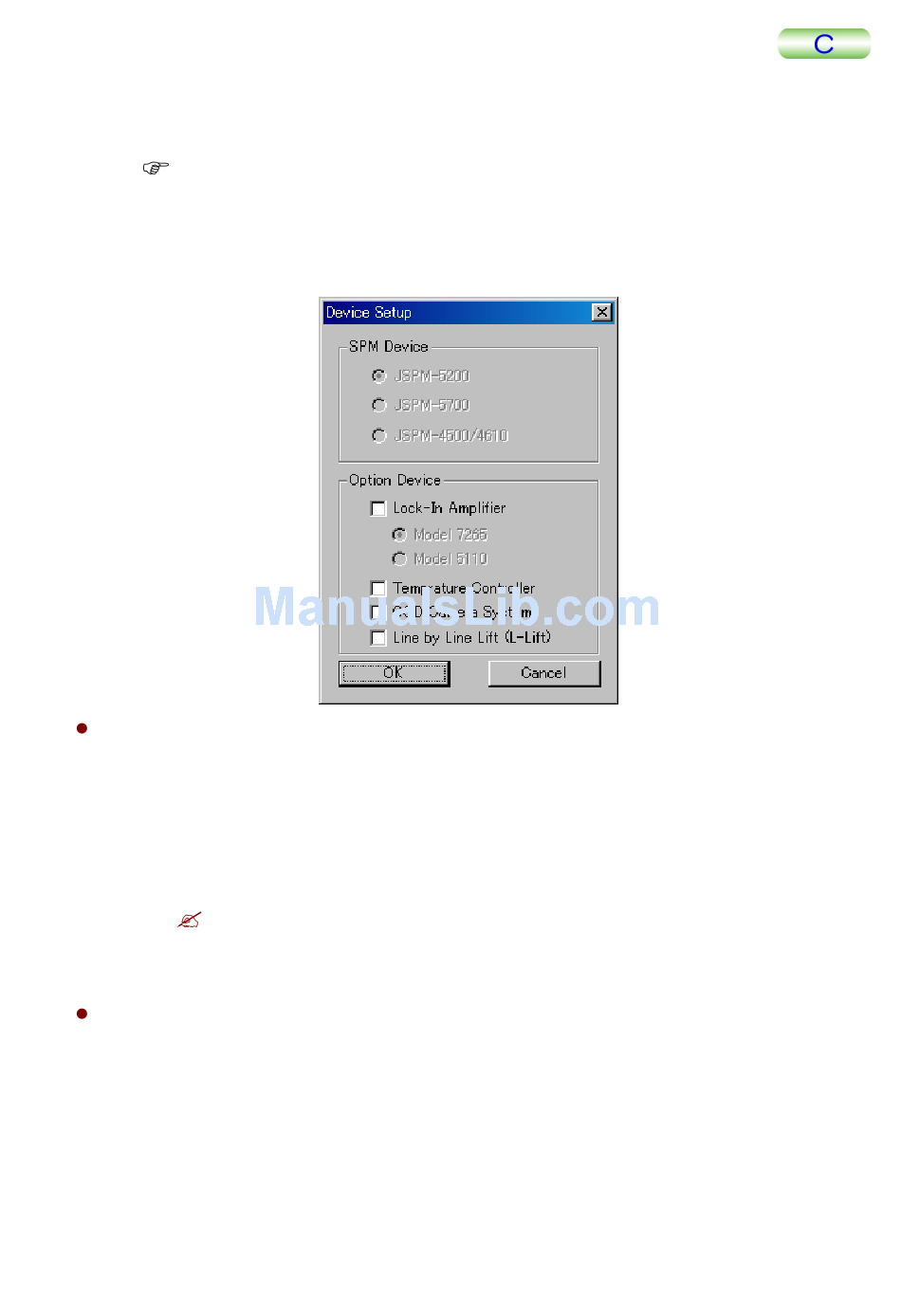

Device Setup

This selects the SPM device, and sets the optional devices that are connected to and
controlled by the SPM device.
SPM Dev ice
This selects a type of the SPM device controlled by the WinSPM software.
Since the basic setting for the WinSPM software differs depending on the selected
SPM device, you might cause malfunction of the device unless this device is set
properly.
Moreover, since the piezo-drive power-supply voltage differs depending on the
instrument ( ± 150 V or ± 200V), you might cause instrument trouble unless it is set
properly.
Option Device
Unless the optional device boxes are checked, you cannot control the optional
devices nor perform optional measurement using the WinSPM software even if the
optional devices are connected to the SPM device. So be sure to check these boxes.
5-168
V
This setting has been properly done before shipment.
Only a user with administrator privilege can change the setting. If the setting of
the SPM device is wrong, exit the software once and log into it again with ad-
ministrator privilege.
