3.3.3
Oscilloscope (Optional)

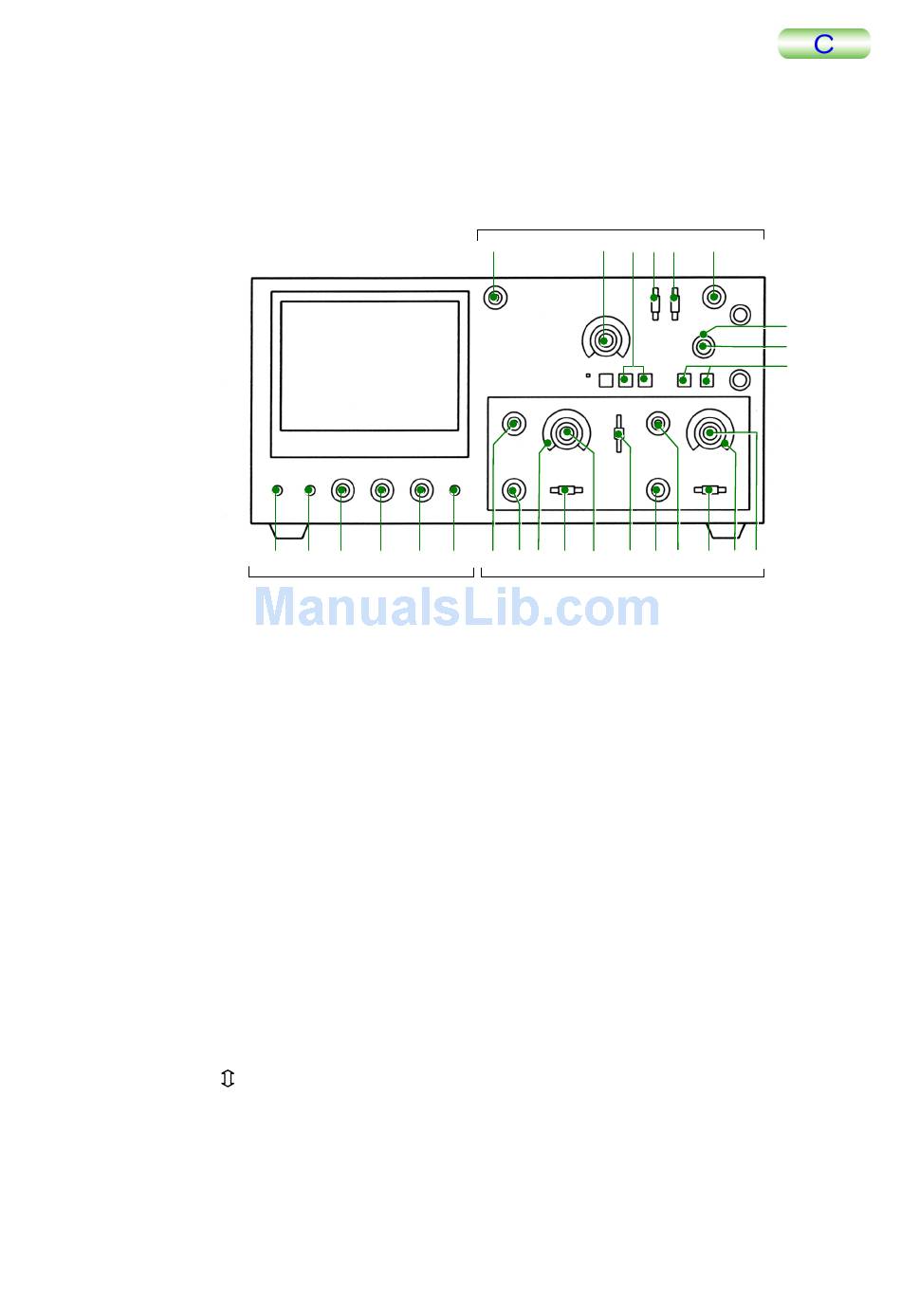

Below are the names and functions of the switches, knobs and buttons on the front panel
of the oscilloscope.
■ Section A
① POWER
Power ON/OFF switch.
② INTENSITY
A knob for adjusting the CRT brightness. Using this knob, adjust the brightness to
make the display easy to see.
③ FOCUS
A knob for adjusting the CRT focus. Adjust the focus in such a manner that the
trace on the CRT looks the sharpest.
④ SCALE ILLUM
A knob for adjusting the CRT illumination. Usually, this knob is not used. Leave
the knob turned counterclockwise to the limit.
⑤ TRACE ROTATION
This knob is used to correct the tilt of the trace caused by the earth's magnetic field.
■ Section B
①
( Vertical position control)
A knob for adjusting the vertical position of the trace.
② INPUT
A signal-input terminal. Connect the Z/20 terminal on the SPM CONTROL system
to CH1, and the CH2 terminal on the SPM CONTROL system to CH2, using the
respective BNC-BNC cables supplied.
