５ MEASUREMENT OPERATION
2.
Click on the SPS button in the main menu.

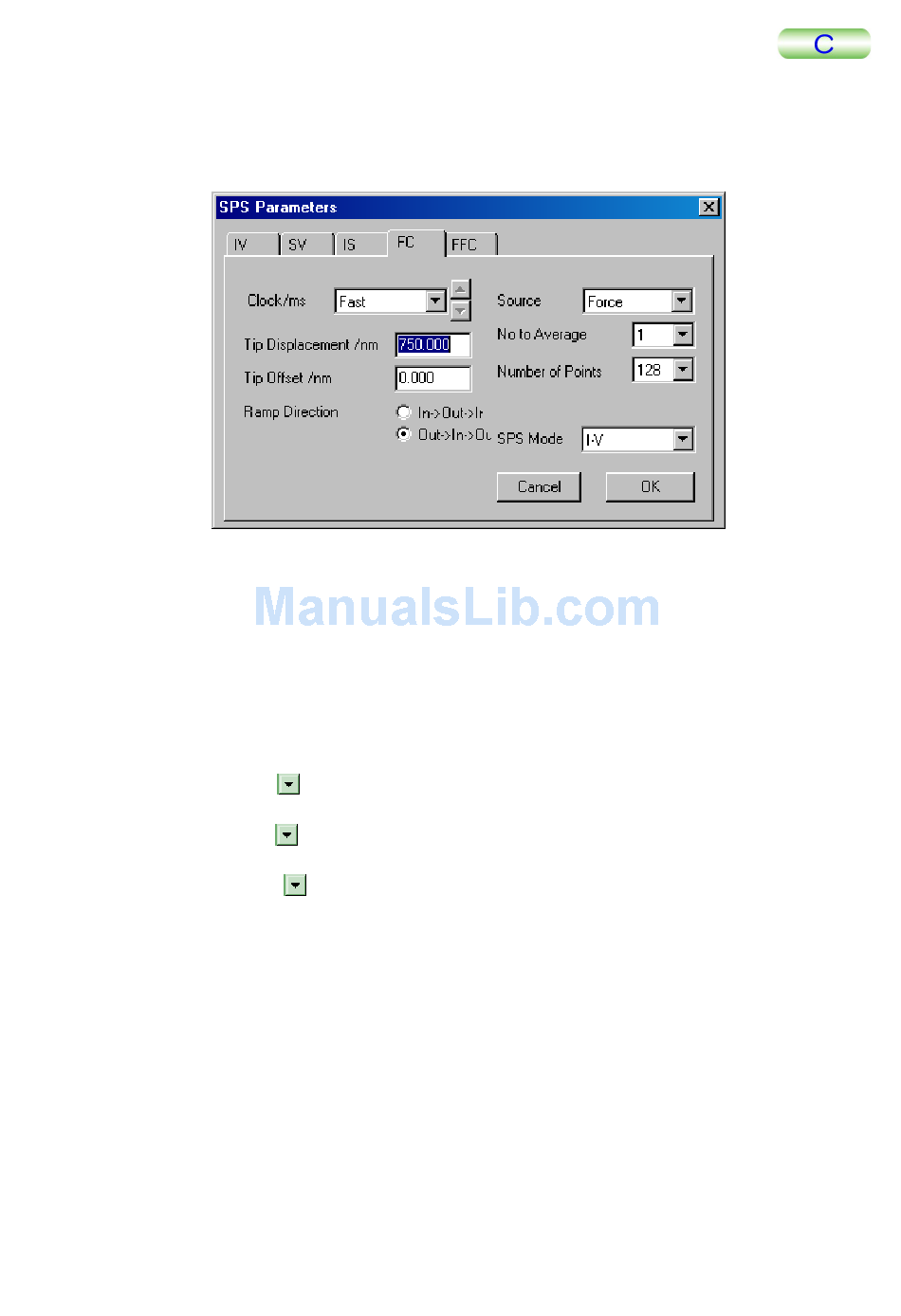

The SPS Parameters window will be displayed.
3.
Click on the FC tab.
4.
D ouble-click on the Tip Displacement/nm input box on the FC window and
enter the maximum value of the scanner Z scanning range using the key-
board.
In practice, even if you en
software automatically calcu
distance of the Z scanning range as the tip displaces in the positive and negative
directions).
5.
Double-click on the Tip Offset/nm input box and enter 0 using the keyboard.
Set Ramp Direction to Out → In → Out.
6.
7.
Click on the
the pull-down menu.
8.
Click on the
p ull-down menu.
9 .
Click on the
Curve from the pull-down menu.
1 0.
Click on the Repeat button on the Advanced tab window.
The Force Curve will be measured and displayed on the Display Window.
