5.10.4 Setting Lock-in Amplifier

WinSPM supports the following two
amplifiers.
• Model 7265
• Model 5110
The window contents, with which the WinSPM controls the lock-in amplifier, differ
according to the model.

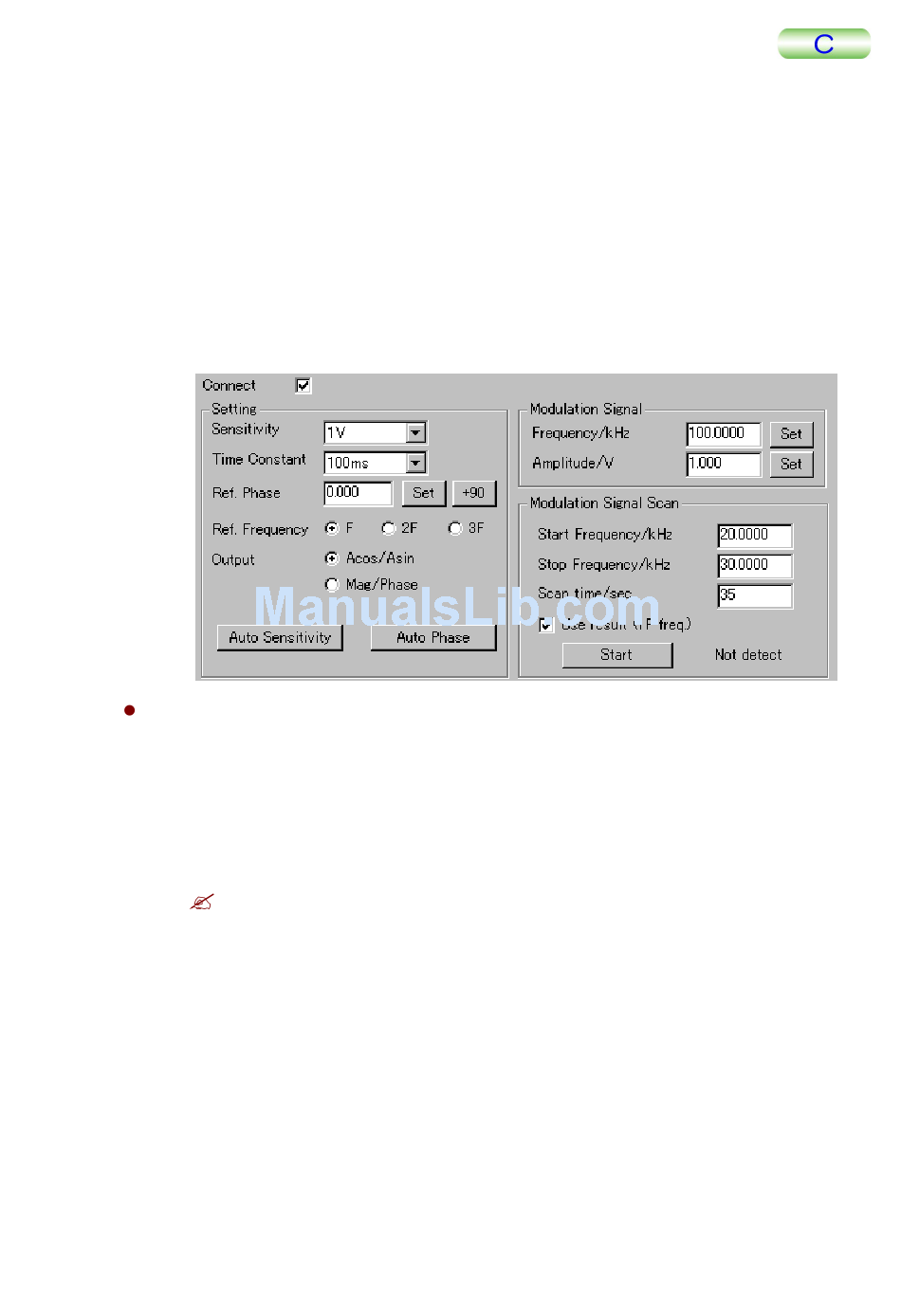

■ Controlling Model 7265
The following items control Model 7265:
Conn ect
Whe n you check this, the system starts to connect with the lock-in amplifier using
RS232C. Since initialization processing of the lock-in amplifier is performed during its
c onnection with the PC, it takes a little time be
conn ection completes normally, a backlight on the front display panel of the loc
a mplifier lights up. If the connection cannot com
In su ch a case, confirm the RS232C cable connection, the power supply of the lock-in
ampl ifier, and the c
The PC comm
(COM1). So you must connect the RS-232C cable with COM1 port of the lock-in
amplifier.
TMPM5200-2
models in the EG&G INSTRUMENTS lock-in
ommunication settings.
unicates with the lock-in amplifier using the communication port 1
５ MEASUREMENT OPERATION
fore the processing completes. If the
plete normally, an error dialog appears.
k-in
5-253
