JEOL JSPM-5200 Instructions Manual page 90

■
Adjusting the photodiode positi
1.
Click on the Adjust PD butto
b ox. The Display Window will appear.
2.

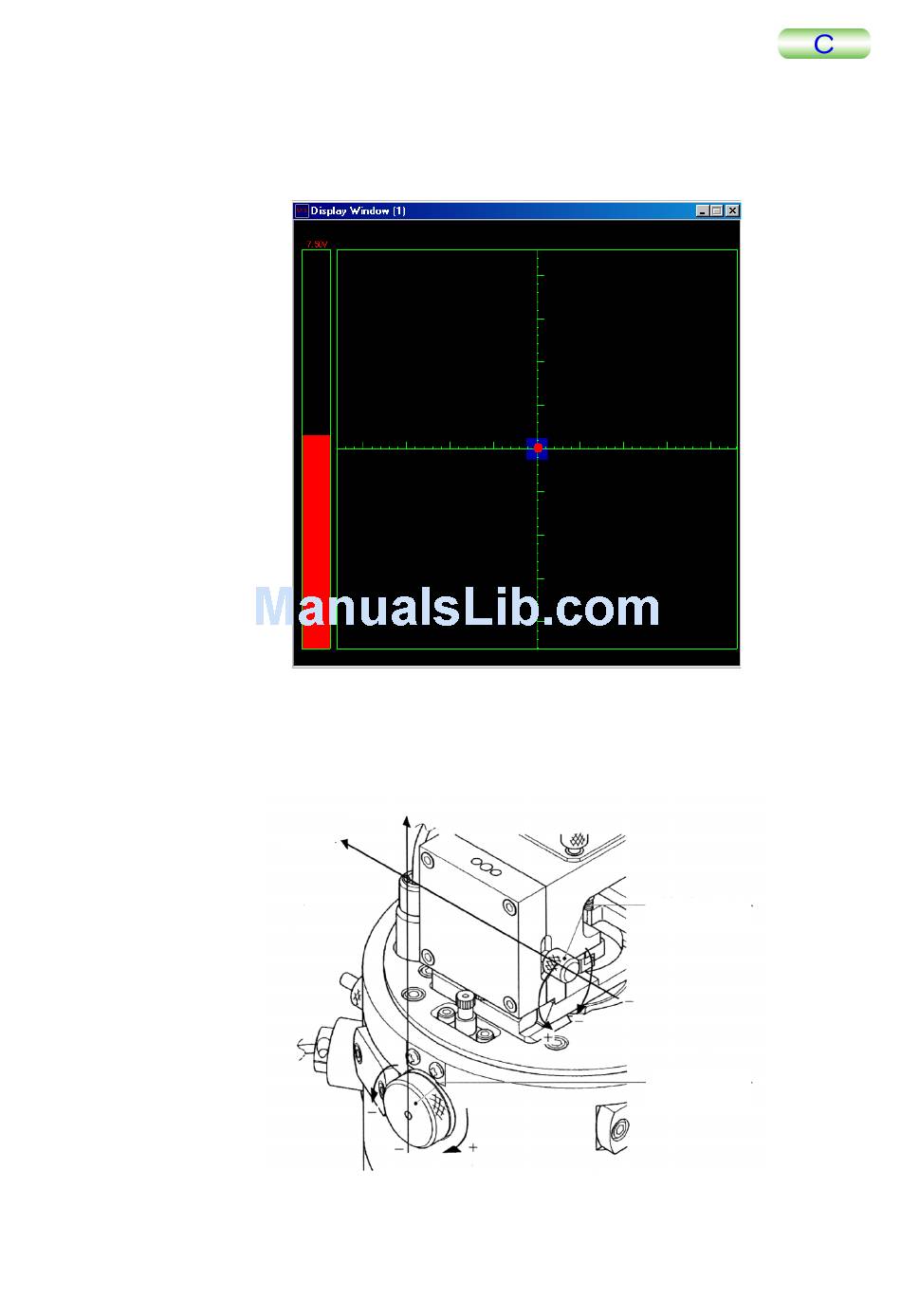

Adjust the photodiode position adjustment knobs so that the red spot enters
t he blue zone at the c
amplifier unit is as large as possible.
The example illustrated above shows the photodiode position adjustment knobs for
the JSPM-5200.
TMPM5200-2
on
enter. Also confirm that the SUM value of the AFM
Y-axis +
X-axis +
５ MEASUREMENT OPERATION
n on the right side of the AC Mode tab window
X-axis adjusting
knob
Y-axis adjusting
knob
5-27
