５ MEASUREMENT OPERATION
• FFC
You can perform FFC measurement only in the contact AFM mode.
In FFC mode, you can measure the change of the friction force due to the torsion
the cantilever by sweeping the tip in the horizontal (Y) dire
result appears on the sc
forth sweeping directions, and appears in
on the sam
The position
the Position function in the Tip window.
•

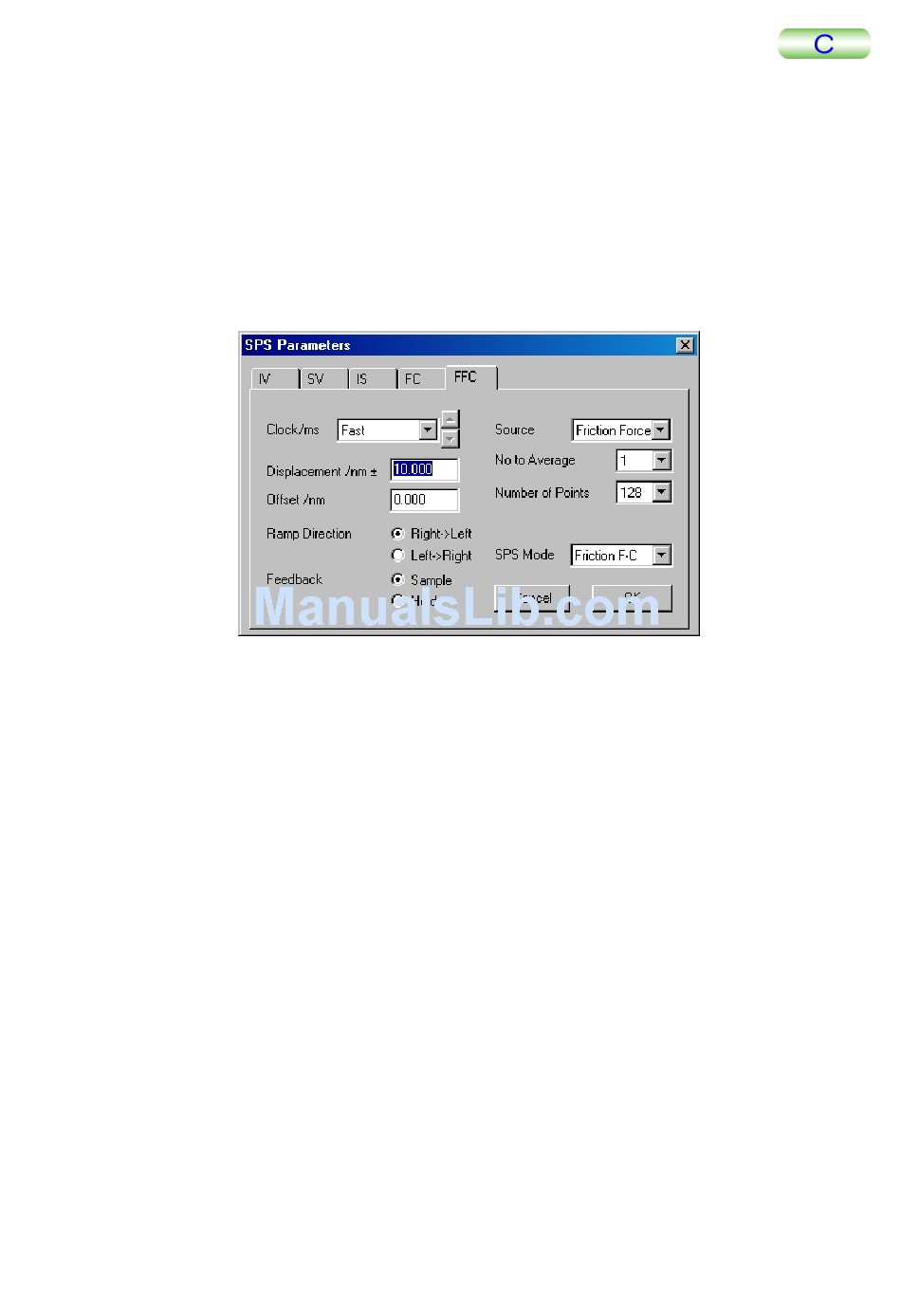

Clock/ms, Number to Average, Number of Points and SPS Mode
• Tip Displacement
• Tip Offset/nm
• Ramp Direction
• Feedback
• Source
5-244
ree n. The
e screen.
at which the FFC measurement
Specify these items in the same way as for IV.
/nm±
Specify the scanning range of the tip in the Y direction.
Specify the offset position in the Y direction. The value in Tip Offset/nm will
be added to the position in the Y direction before scanning. Usually, specify 0.
Specify the sweeping direction for the distance between the tip and the speci-
men.
Right ->Left: First, the tip sweeps in the right direction, and then it sweeps
in the left direction.
Left -> Right: First, the tip sweeps in the left direction, and then it sweeps
in the right direction.
Turn Feedback on or off.
Sample: Measurement is performed with feedback turned on.
Hold: Measurement is performed with feedback turned off.
Select Friction Force for the FFC measurement because you measure the
change of the friction force when sweeping the tip in the Y direction on the
specimen.
FFC measurement is carried out in the back
di fferent colors
is carried out is det
ction The measurement
and
for the respective sweeps
ermined by using
TMPM5200-2
of
