５ MEASUREMENT OPERATION
5.2.6 Spe cimen Temperature Controller (for JSPM-5200)
With the aid of the optional specimen temperature controller (TM-24090), specimen
temperature can be controlled. When the controller is connected to a PC using RS-232C,
specimen temperature can be controlled via WinSPM.
■ Setting the software
When WinSPM controls the specimen temperature, click on SPM Scan in the
main menu bar to open the pull-down menu. Click on Device Setup to open
the Device Setup dialog box; then check the Temperature Controller box.

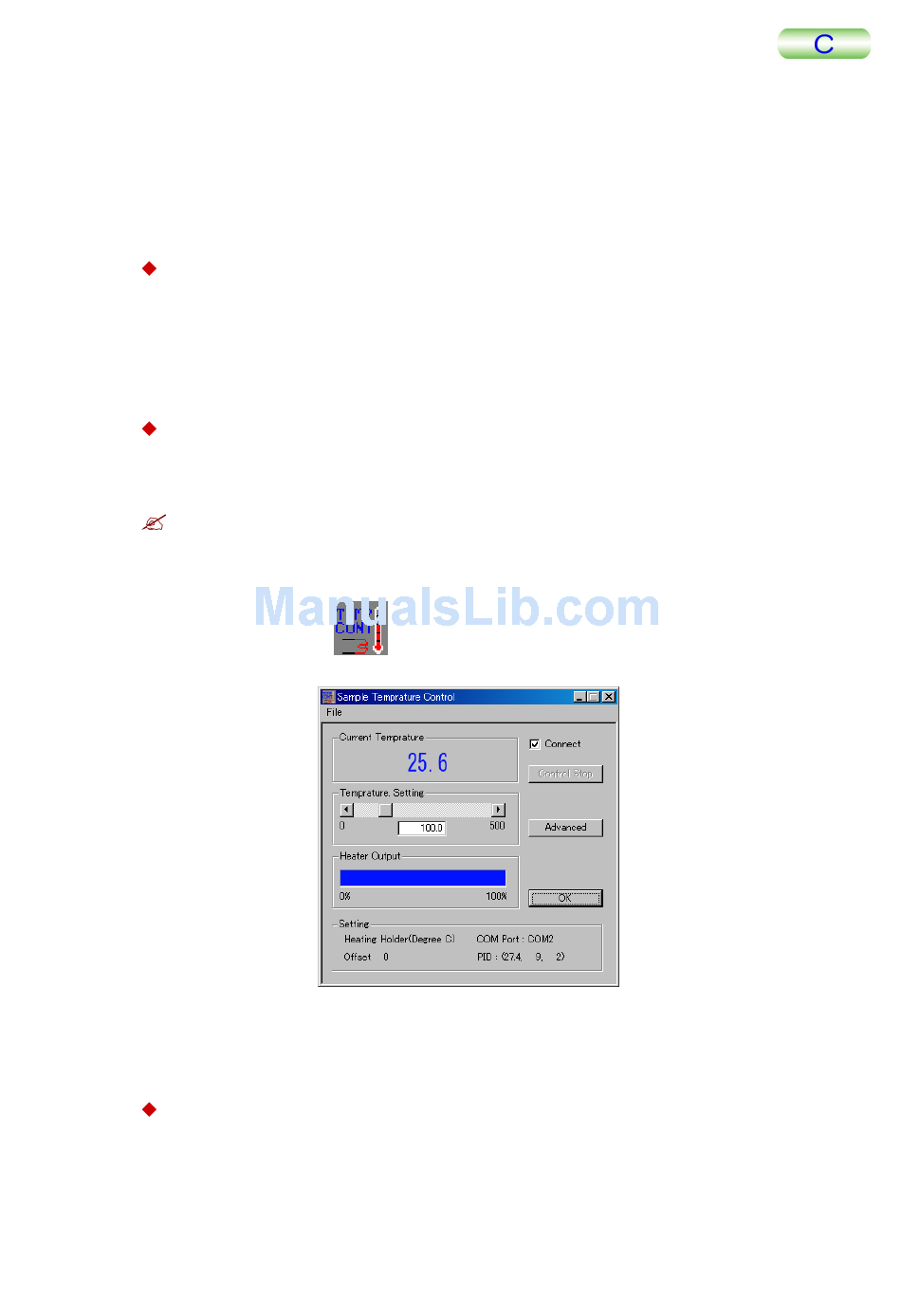

■ Sample Temperature Control dialog box
The sample temperature is controlled using the Sample Temperature Control dialog box.
Click on SPM Scan in the main menu bar to open the pull-down menu. Click
on Device Setup to open the Device Setup dialog box. Check the Tempera-
ture Controller box, and then click on the OK button. The Sample Tempera-
ture Control dialog box will appear.
The Sample Temperature Control dialog box can also be opened either by pressing
the T key while holding down the Ctrl key on the keyboard, or by clicking on the
temperature control icon.
5.2.7 CCD Camera
The CCD camera i
Click on SPM Scan in the main menu bar to open the pull-down menu. Click
on Device Setup to open the Device Setup dialog box. Check the CCD
Camera System box, and then click on the OK button. The CCD C
System window will appear.
5-18
(Temperature control icon)
mage is displayed in the CCD Camera window.
amera
TMPM5200-2
