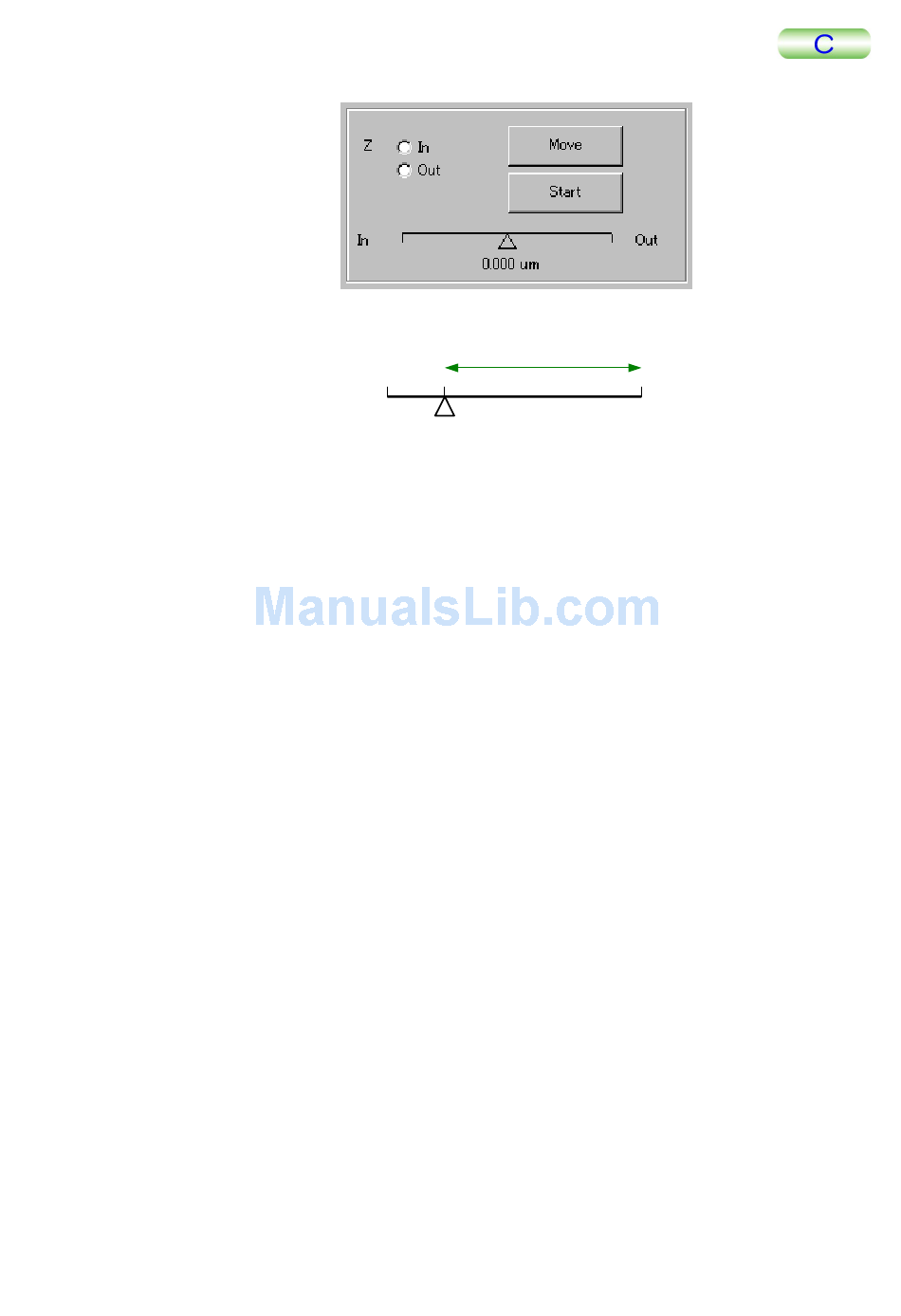

• If the Z stage position indicator (△) is too close to the In position, move the stage to
the Out position as follows:
1.
Click on the Out radio button. (The probe moves away from the sample.)
2.
Click on the Start button.
The Start button changes to the Stop button. The Z stage moves toward the OUT
direction.
3.
Click on the Stop button when the (Δ) mark enters the approachable range.
5.3.6

Setting an Optional Oscilloscope

You can install an optional oscilloscope on this system. By using an oscilloscope, you
can measure faster events than
and also perform real-ti
use an oscilloscope to check the scanning waveform, bias voltage, and so on.
Set the oscilloscope using the procedure below. If you carry out the procedure below,
you can monitor the applied voltage in CH1 in the Z direction of the scanner and also the
waveforms of signals specified using the software in CH2.
■ Correction of tilt due to
1.
Turn on the os
2.
Adjust the INTENSITY and FOCUS knobs so that the trace can be better
seen.
3.
Set the MODE switch to CH1 and the AC, GND, DC switch of CH1 to GND.
4.
Adjust TRACE ROTATION with a screwdriver so that the trace becomes
horizontal to the scale axis on the display
■ Input adjustment
1.
Set the MODE switch to CH1 and the AC, GND, DC switch of CH1 to GND.
Adjust the vertical position control knob ( ⇕ ) of CH1 so that the trace is
2.
positioned at the center of the display.
3.
Set the MODE switch to CH2 and the AC, GND, DC switch of CH2 to GND.
TMPM5200-2
Approach possible
Z In
those that can be measured with the software oscilloscope
me measurement of waveforms during observation. You can also
the geomagnetism effect
cilloscope power.
