６ ANALYSIS OPERATION

6.10 DISPLAY MENU (IMAGE PROCESSING FUNCTION)

6.10.1 Display

From among the image data stored in the computer memory, the current image data is
displayed in the Display Window.
Select Display in the Display pull-down menu.
The current image stored in the computer memory is displayed in the Display
Window.

6.10.2 Display Parameters

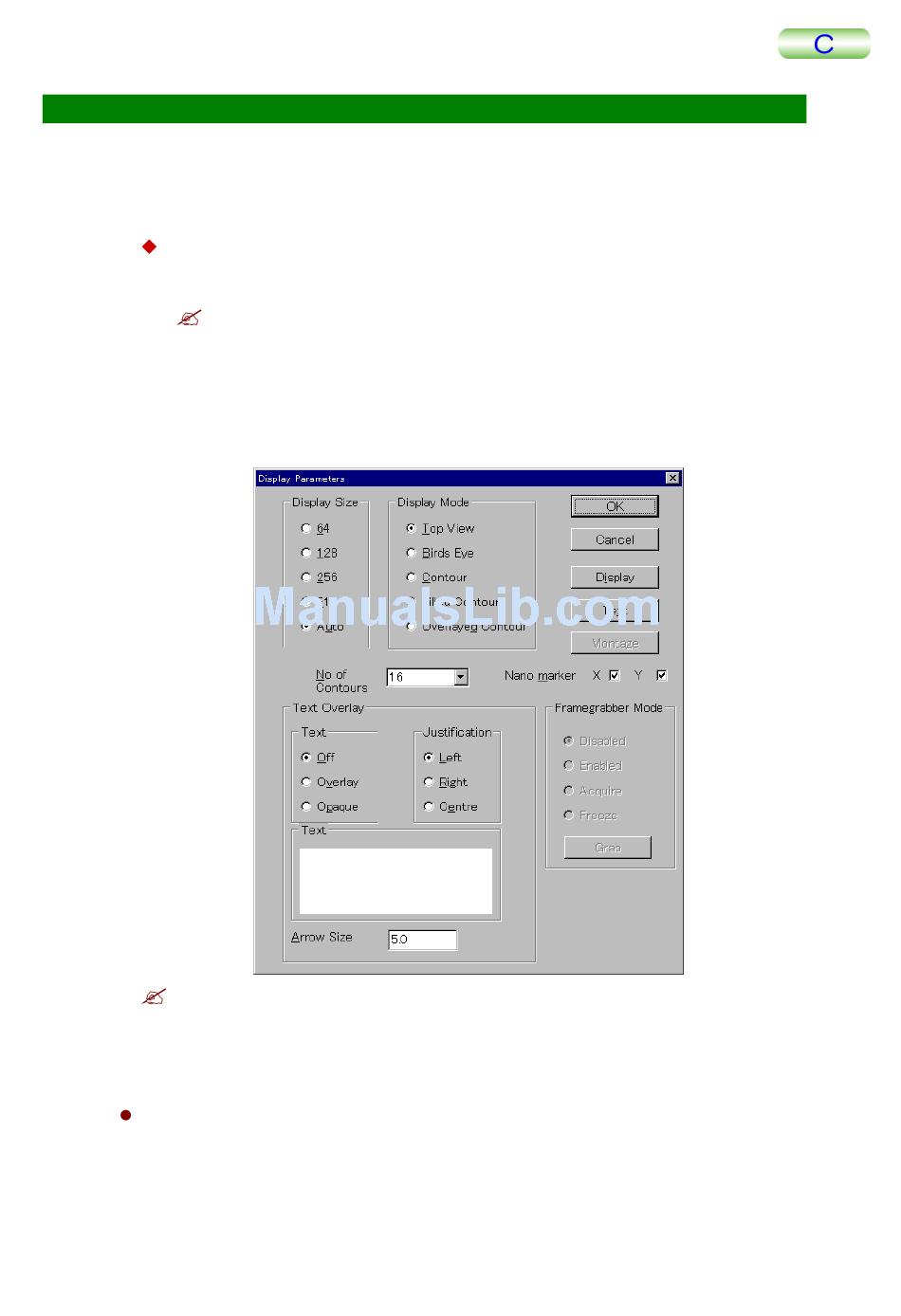

Parameters for displaying an image are set in this window.
Parameters set in this window are in effect regardless of the parameters set for
scanning as long as they are not changed.
For example, if Display Size is 64, an image is displayed as 64 × 64 when loaded
from a disk, even if the original image was scanned at 512 × 512.
Display Size
The image display size is specified in this frame by selecting a radio button. The choices
64, 128, 256, 512 and Auto are provided. When a button is selected from among 64, 128,
256 and 512, an image is displayed in the selected pixel size regardless of the original
image size. When Auto is selected, an image is displayed in the original image size.
6-78
This function is used to display an image again after clearing the display with
the Clear FS function.
