６ ANALYSIS OPERATION
Equalize
0
255
0
255
6.9.4
Display Image LUT

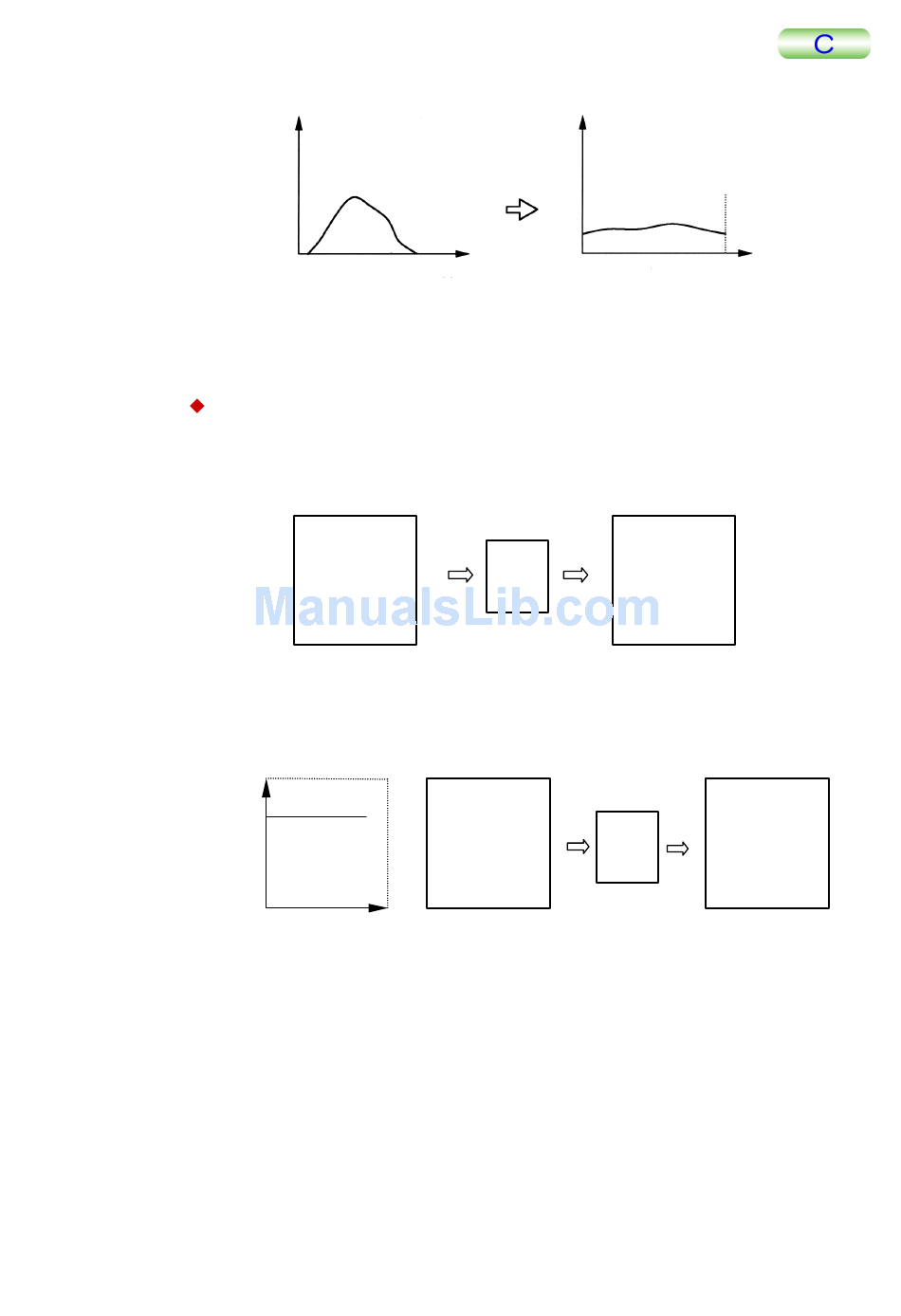

The current LUT (Look Up Table) is displayed on the image as a graph.
Select Display image LUT from the LUT pull-down menu.
The current LUT is displayed on the image.
The LUT is a data-transform function for displaying the original data on the image
display screen.
LUT
Image data
Transform
Display
For example, if the LUT is like the one shown below, the displayed image is all
white (255).
255
(White)
Level
White
(Displayed
LUT
value)
0
(Black) 0
255
Image data
Display
(Black)
(White)
Data value
(Original image data)
Or, if the LUT is like the one shown below, an inverse-video image is displayed.
TMPM5200-2
6-73
