JEOL JSPM-5200 Instructions Manual page 389

• Dilate
Adds one pixel layer to the area around particles.
This function becomes effective after analyze processing is performed.

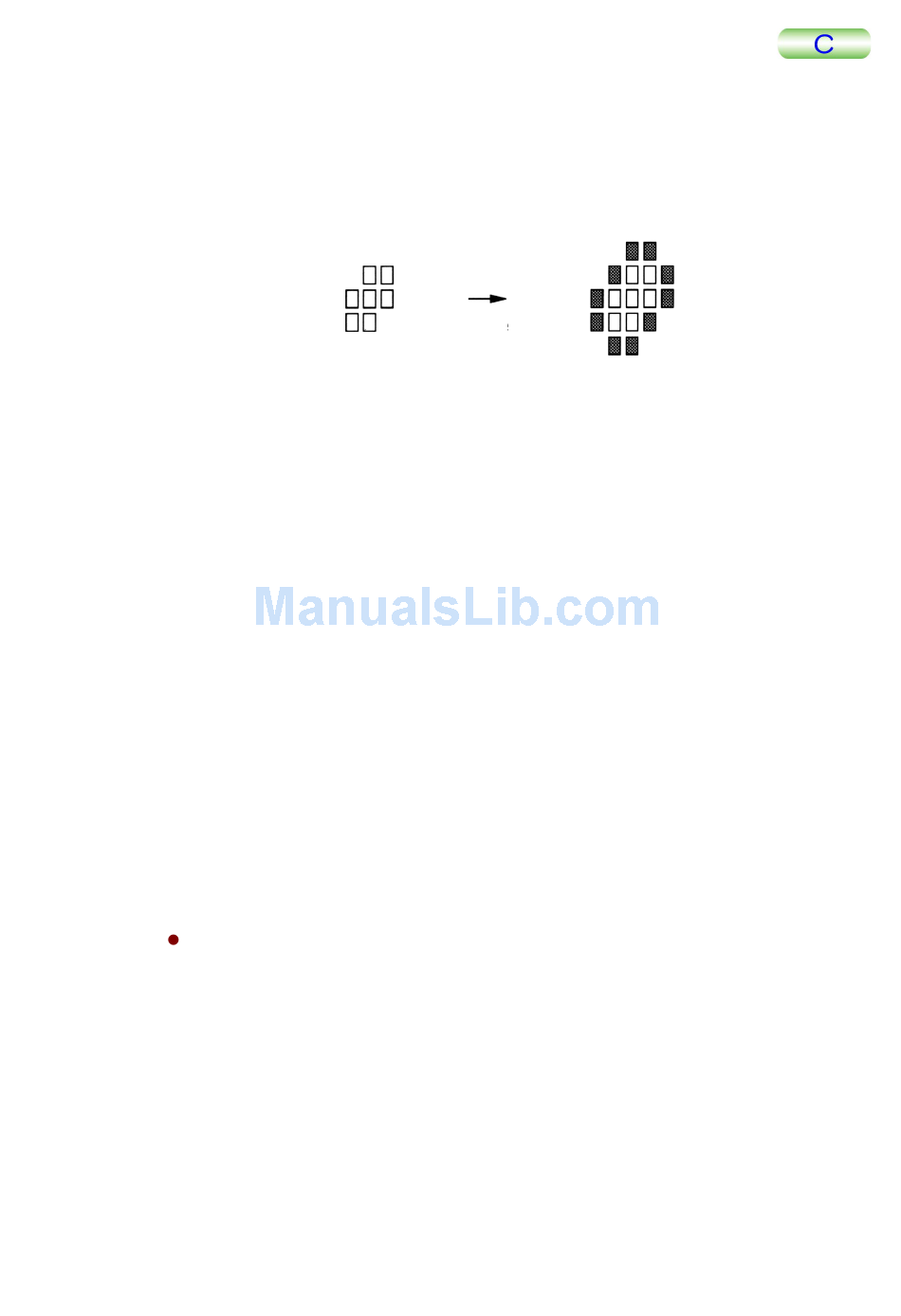

【 Example 】
• Isolate
Excludes from the display any particles composed of a specified number of pixels
or fewer.
This function becomes effective after analyze processing is performed.
Clicking Isolate displays the "Enter smallest particle size/pixels". For example, if
10 is entered here, all particles, each of which is composed of 9 pixels or fewer, are
excluded.
• Shoot
Deletes a designated particle.
This function becomes effective after analysis processing is performed.
Clicking Shoot changes the mouse cursor into a cross on the binary digitized value
image. Moving the cross cursor onto the particle to delete and pressing the left
button on the mouse deletes the selected particle.
• Histogram
Selects the type of histogram about the information of all particles to display at
statistic analysis in the particle analyze window.
• Area:
• Diameter:
• Area/diameter
• Number of bars: Sets the number of bars of a histogram to display (integer value
Statistic tab window
This tab window becomes effective after analyze processing is performed.
In this window are displayed the result of particle analysis, but also specific particles are
detected and data are written.
• Statistic result
Statistic result is displayed.
Types of statistic data include area, number of pixels, diameter and roundness.
• Order of listing
Sets the order of listing data when displaying the statistical result.
• Position:
• Area/ diameter
• Area:
TMPM5200-2
Dilate
Displays the statistic result of the area of all particles
Displays the statistic result of the diameter of all particles.
2 : Displays the statistic result of roundness (area/diameter
particles.
within 3 to 128).
Lists numeric values in increasing order in the particle position
on the image (XY coordinate).
2 : Lists roundness (area/ diameter
List areas in increasing order.
６ ANALYSIS OPERATION
2 ) in increasing order.
2 ) of all
6-59
