JEOL JSPM-5200 Instructions Manual page 320

OSC Level / V
Set t he signal amplitude that is output from the oscillator in V order. You can also set this
by cl icking on the Set button using the slider bar.
Output
Set t he kinds of output signals from the lock-in amplifier. Since the lock-in amplifier can
outp ut two kinds of output signals, set two signals in pairs.
If you select ACosT, ASinT, the detection signals in the lock-in amplifier are decomposed
and output into the cos component and sin component, respectively.
If you select Amplitude, Phase, the amplitude
lock- in amplifier are output.
Auto Conf igure
W hen you click on this button, the lock-in amplifier sets an appropriate input sensitivity
for t he current input signal and reference phase so that the reference phase agrees with
the i nput signal phase by using the automatic adjusting function that the lock-in amplifier
itself has.

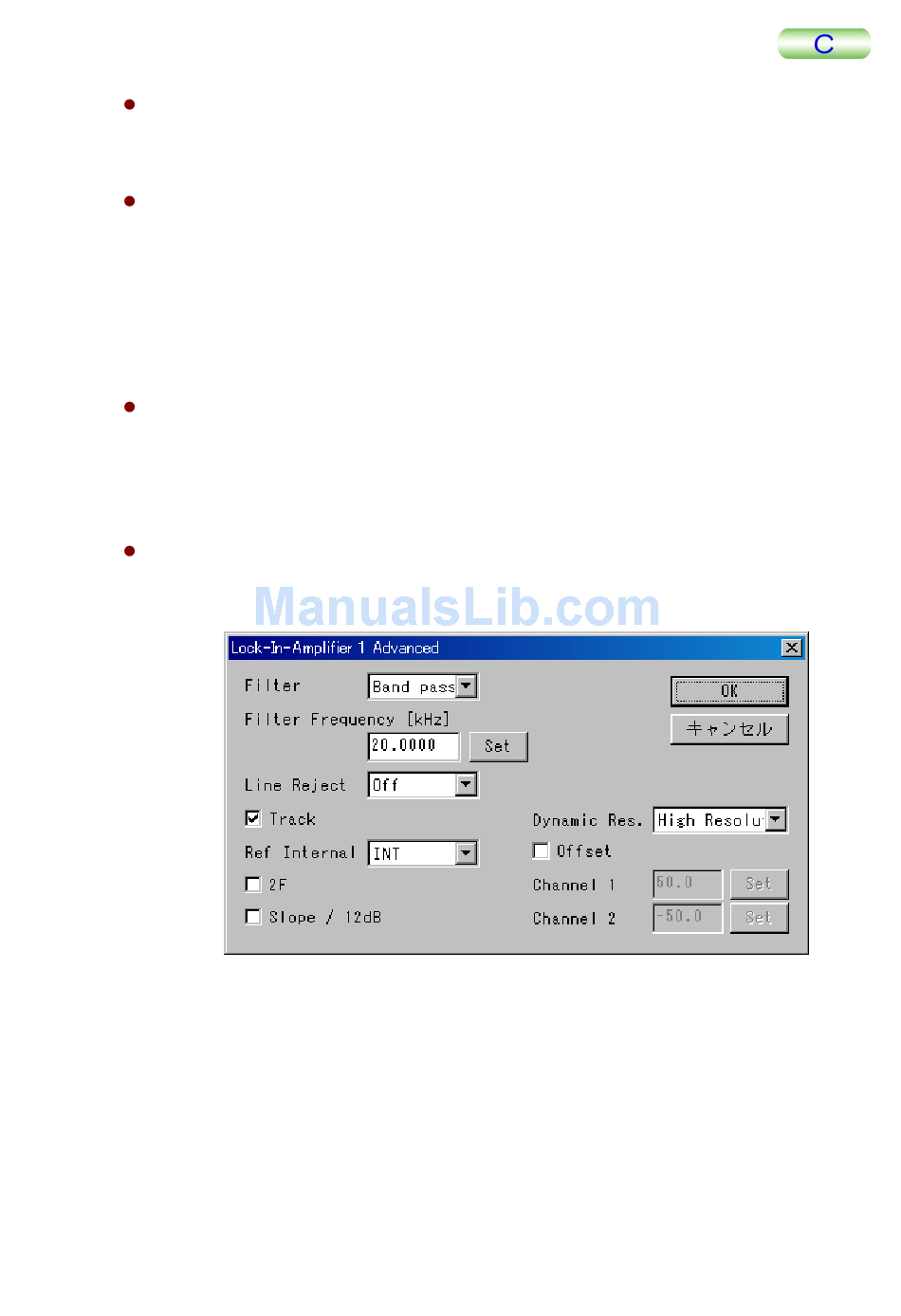

Advanced
This displays a dialog that enables you to perform a more detailed setting for the lock-in
amplifier.
• Filter
This sets a filter for the input signal. Usually, select Band Pass.
• Filter Frequency [kHz]
In the Filter selection, this sets the cutoff frequency if you select Low Pass or Band
Pass.
TMPM5200-2
Flat Do not apply a filter.
Low Pass Apply a low pass filter.
Band Pass Apply a band pass filter.
５ MEASUREMENT OPERATION
and phase of the detection signals in the
5-257
