• Analysis result sheet
This output sheet is the displayed information in each analysis window. You can
hardly distinguish this output sheet from the analysis window by their appearance;
e.g., you cannot operate the analysis position in the output sheet. You cannot
arrange the displayed information in plural analysis windows on a single output
sheet.
You can automatically create the 3D image sheet and the Analysis result sheet by
clicking on the Make Report shortcut icon, activating each display window.

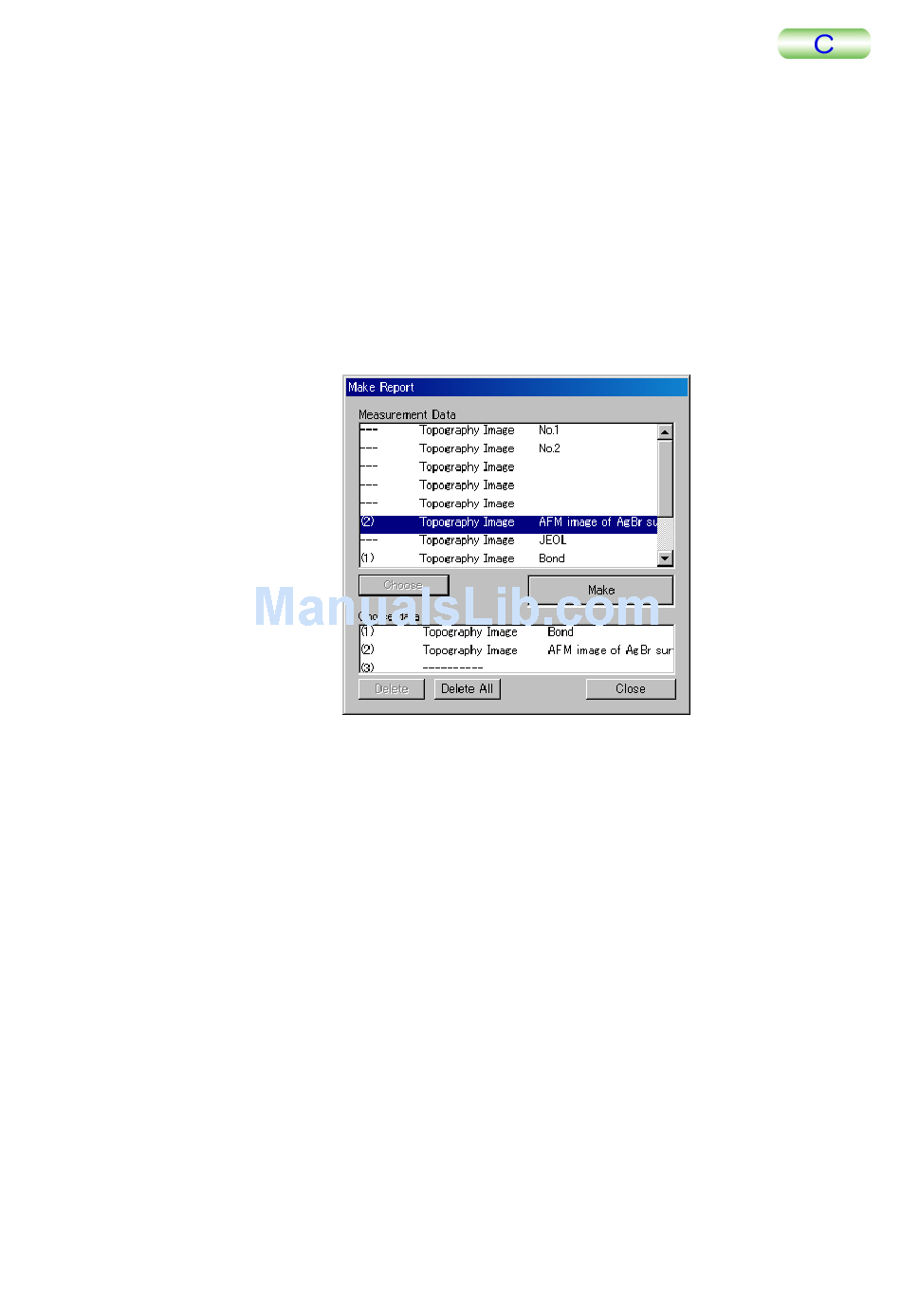

You can create the Acquired data sheet by clicking on the Make Report shortcut icon,
activating the display window. At this time, the following Make Report dialog box
appears.
• Measurement Data
The list of SPM data stored in memory is shown. Select the data you want to
arrange from the list. The selected data is displayed in the Display Window.
• Choose button
Click on the Choose button to select data from the list of Measurement Data. The
selected data is displayed in the Choice data area.
• Choice data
The list of data selected from the Measurement Data area is shown. You can select
up to three measurement data to arrange. When you click on the Make Report
shortcut icon, the data displayed in the Display Window automatically comes to the
top of the Choice data area.
• Delete button
Deletes the single SPM data selected from the list of Choice data.
• Delete All button
Deletes all data currently selected in the list of Choice data.
• Make button
Creates and displays the output sheet, using the SPM data selected in the list of
Choice data. Display changes depending on the number of selected data.
• Close button
Closes the Make Report dialog box and stops creating an output sheet.
