５ MEASUREMENT OPERATION
Measuring Force Curve at Specified Position
The Force Curve measurement explained in "Measuring Method" is carried out at the
top-left corner of the image.
In practice, however, the Force Curve measurement is often carried out at a certain
specified point in an observed image, when you perform image observation in the
contact mode.
The following is the procedure for specifying the Force Curve measurement point.
1.
Observe an image and grab it.
2.
Specify the parameters in the FC tab window according to "Measurement
Method."
3.
Click on the Probe button on the Advanced tab window.
The Tip window will open.
4.
Click on the Tip Retract button.
5.
Click on the Position button in the Tip window.
5-112

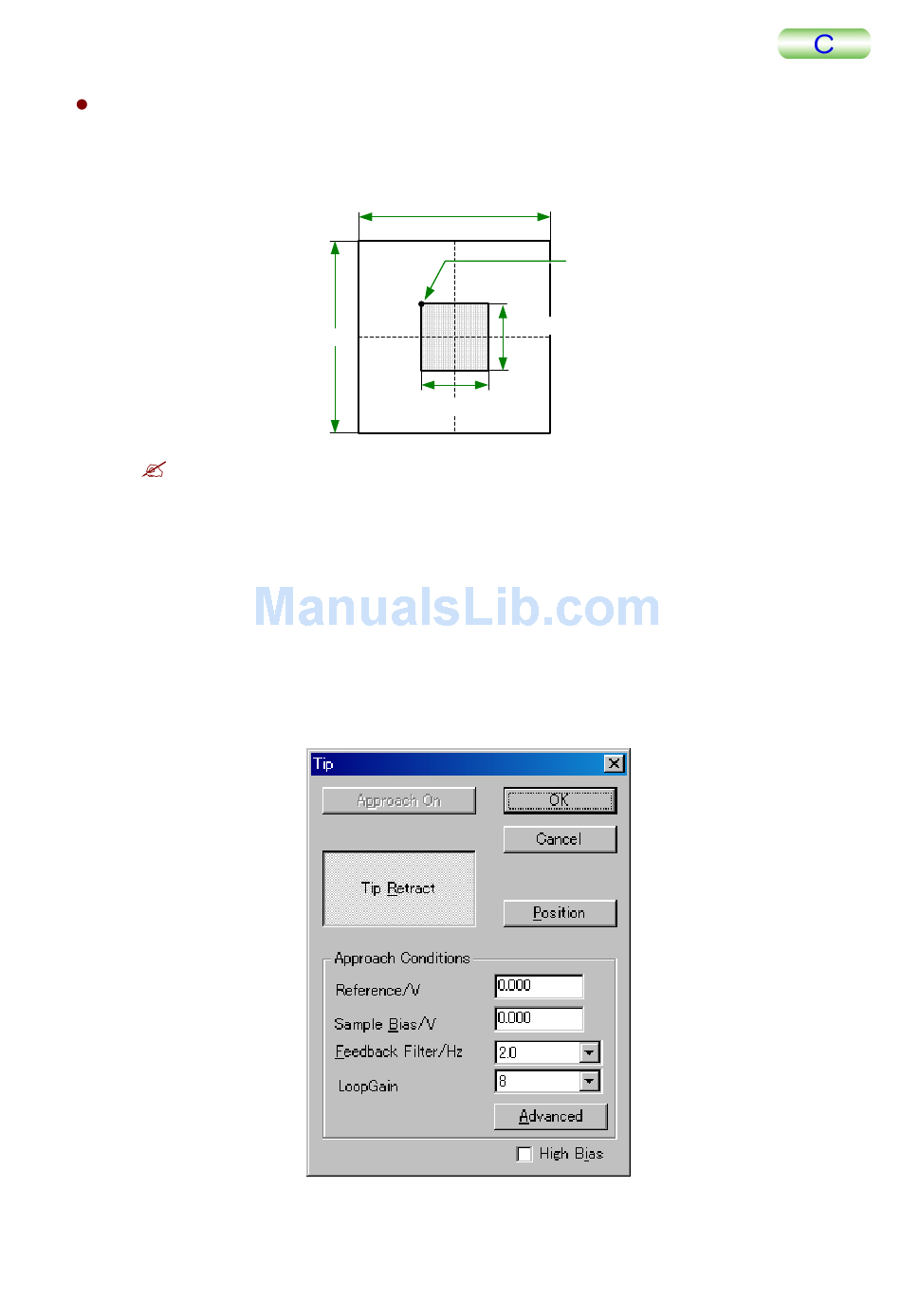

Max Scan Size
Max Scan Size
Scan Size
Force Curve
measur ement
position
Scan Size
When Offset is X 0
Y 0
