６ ANALYSIS OPERATION

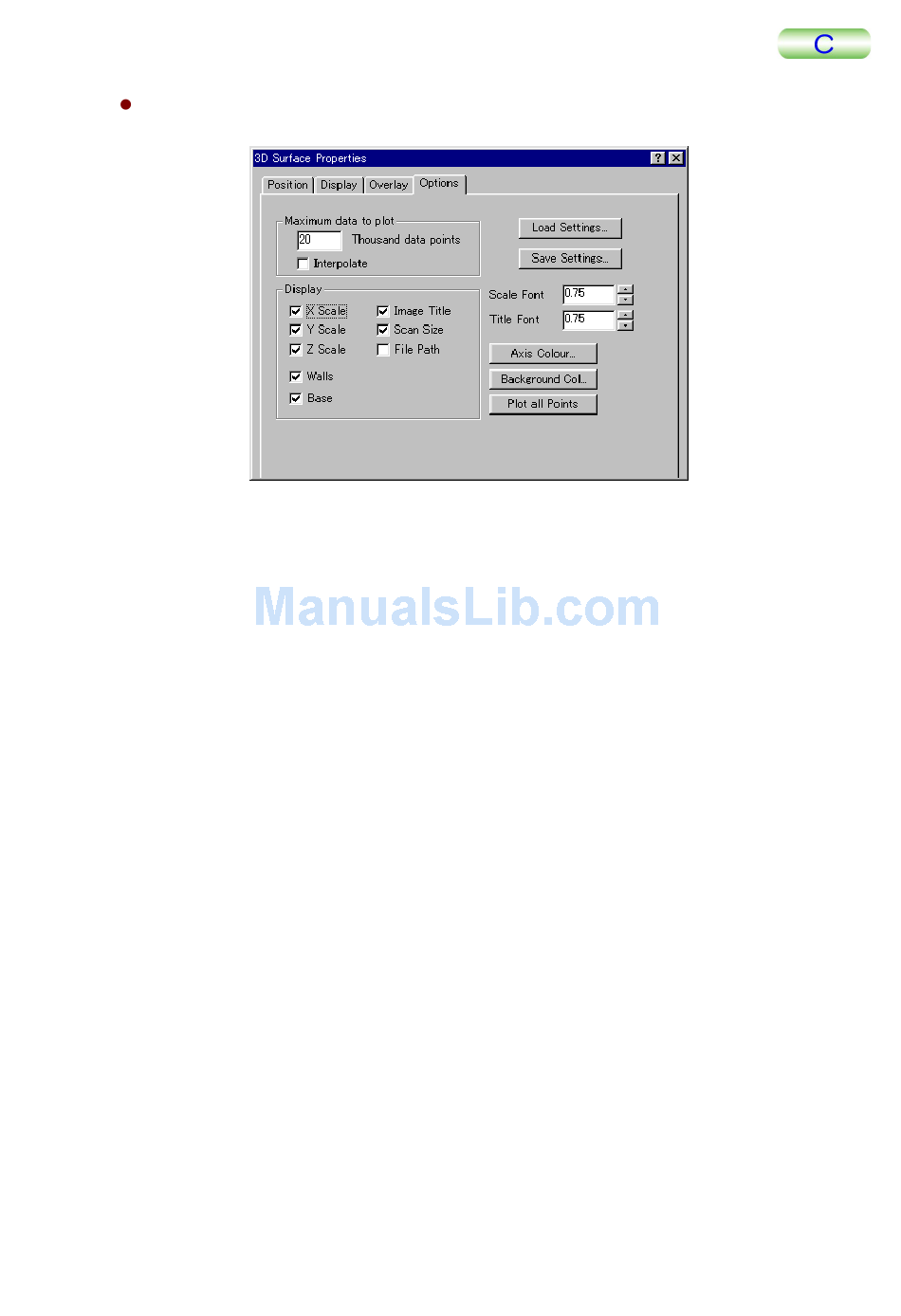

Options tab (option setting)
Set the various option functions.
• Maximum data to plot
Set the computation accuracy for a simplified display. If you increase the value in
the text box, the accuracy of the image in the simplified display mode will increase,
however it will take more time for the image to be displayed. Normally, set a value
of about 10 – 20.
Also, when you check Interpolate, the image roughness that occurs during
3-dimensional drawing is reduced, however like the above it will take more time for
the image to be displayed.
• Display
Checking this item displays the X, Y and Z direction scales.
• Load Settings
Checking this item loads the settings for displaying a 3-dimensional image from the
file (extension: *. 3dp).
• Save Settings
Checking this item saves the settings for a 3-dimensional image in the file.
• Scale Font
Sets the font size of the scale display.
• Title Font
Sets the font size of the title display.
• Axis Colour...
Sets the display color for a scale display, for example.
• Background Col...
Sets the background color of the display window.
