６ ANALYSIS OPERATION
3.

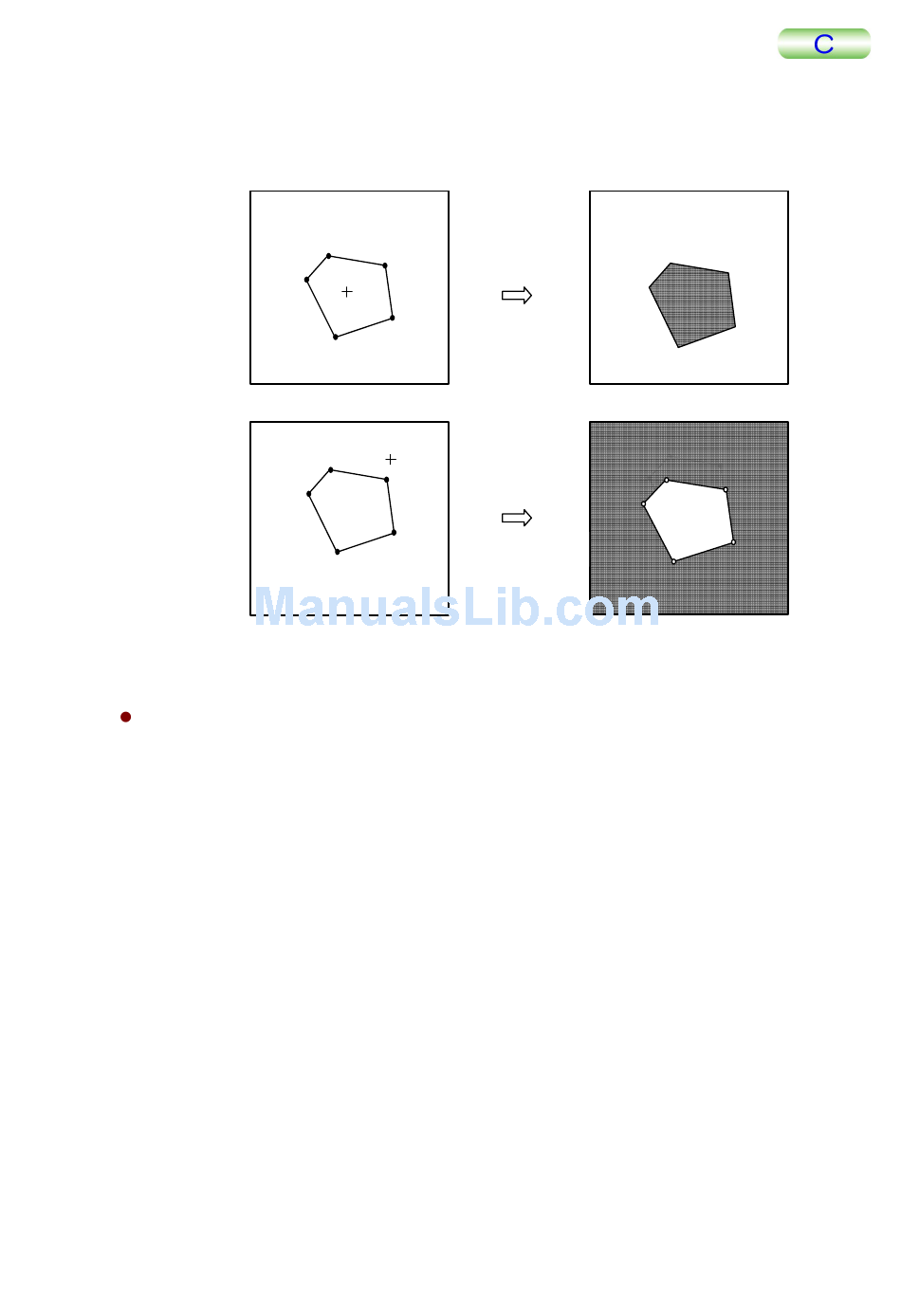

Specify the region to be measured by placing the cursor inside or outside of
the enclosed line and click the left mouse-button. The specified region is
displayed in black.
Inside the
enclosed line
Outside the
enclosed line
The number of pixels, area, averaged specimen height and root-mean-square value of
specimen height within the designated region are indicated in the window.
Line
Measures the cross sectional shape between two points. The measured surface profile can
be handled as a sort of spectrum data.
1.
Select Line from the Measure pull-down menu
The mouse cursor changes a cross.
2.
Specify the starting point of cross sectional profile measurement.
Click the left button on the mouse.
3.
Specify the ending point of cross sectional profile measurement.
Click the left button on the mouse.
A graph showing the cross sectional profile between two points specified from
Display window is displayed.
4.
Save data
Enter a title in the Image Profile window and click OK, and the cross section profile
will be saved as data. Clicking Cancel does not save the data.
6-46
Click the left
mouse-button
Click the left
mouse-button
