Mirror Angle Adjustment

Cantilevers vary slightly in inclination, depending upon their production lot. If the
detector photodiode cannot be aligned correctly, adjust the mirror angle according to the
following procedure:
1.
Install the cantilever in the usual manner and illuminate the tip of the
cantilever with the laser beam.
2.
Adjust the photodiode position-adjusting knobs so that the photodiode is
positioned at the center point.
The total number of revolutions of the X-axis adjusting knob is 20 and that of the
Y-axis knob is 52. Therefore, the center position is at 10 (X-axis) and 26 (Y-axis)
revolutions back from the fully rotated positions.
3.
Loosen the mirror-locking screw; then adjust the mirror angle so that the
SUM value on the AFM amplifier becomes the largest value and the AFM
value becomes nearly 0.
4.
Tighten the mirror-locking screw to lock the mirror angle.
8-4

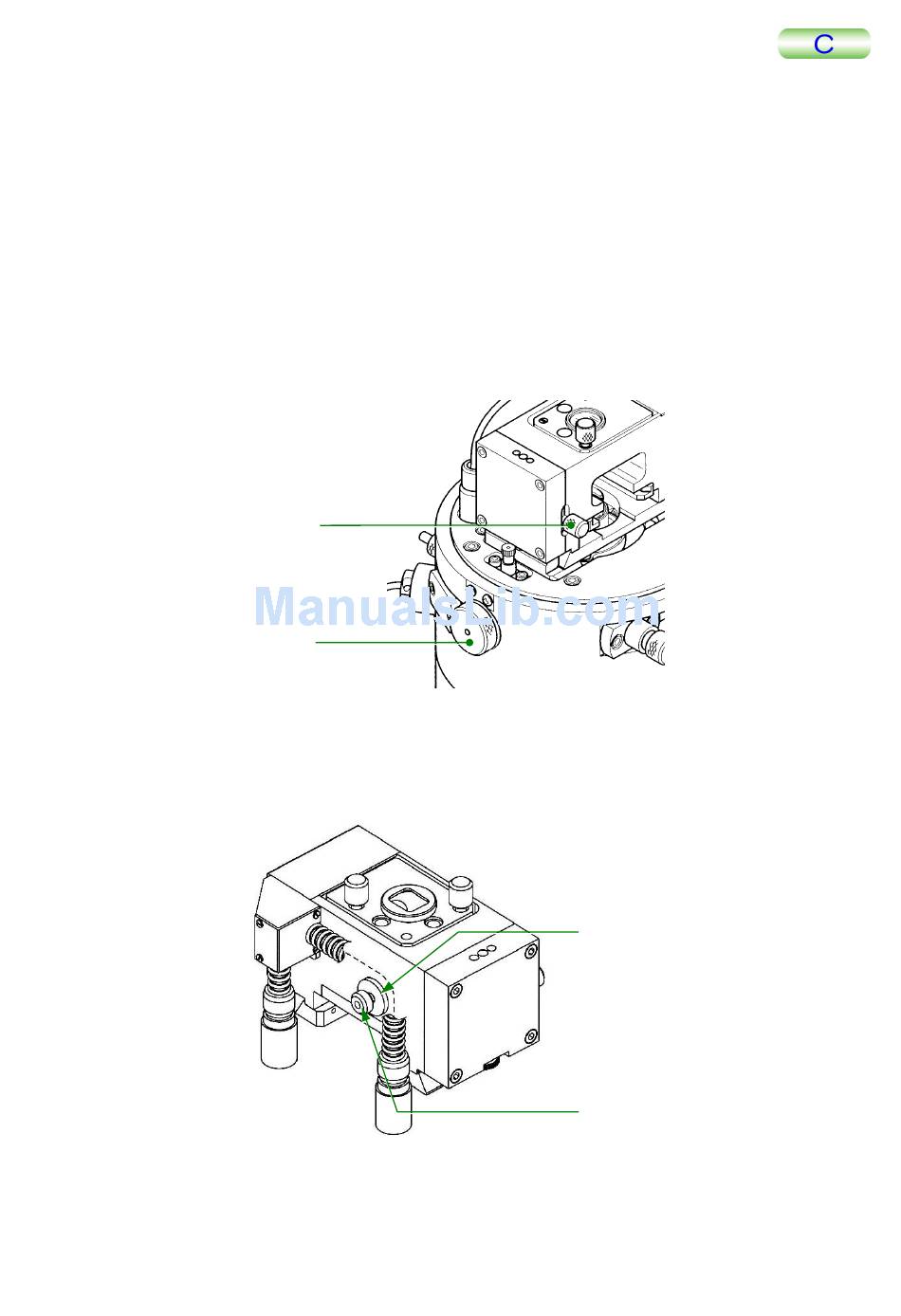

X-axis adjusting
knob
Y-axis adjusting
knob
Mirror-locking
screw
Mirror rotation
knob
TMPM5200-2
